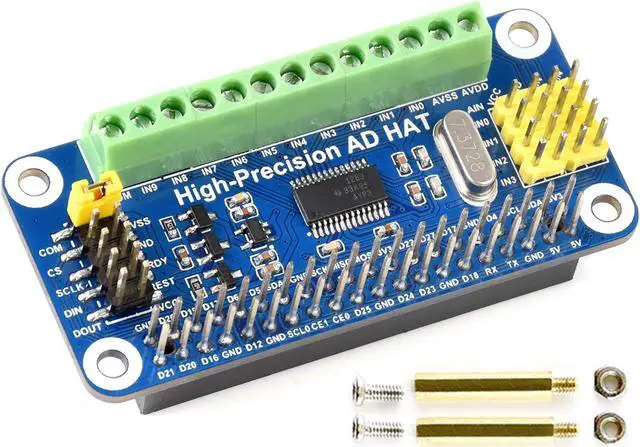

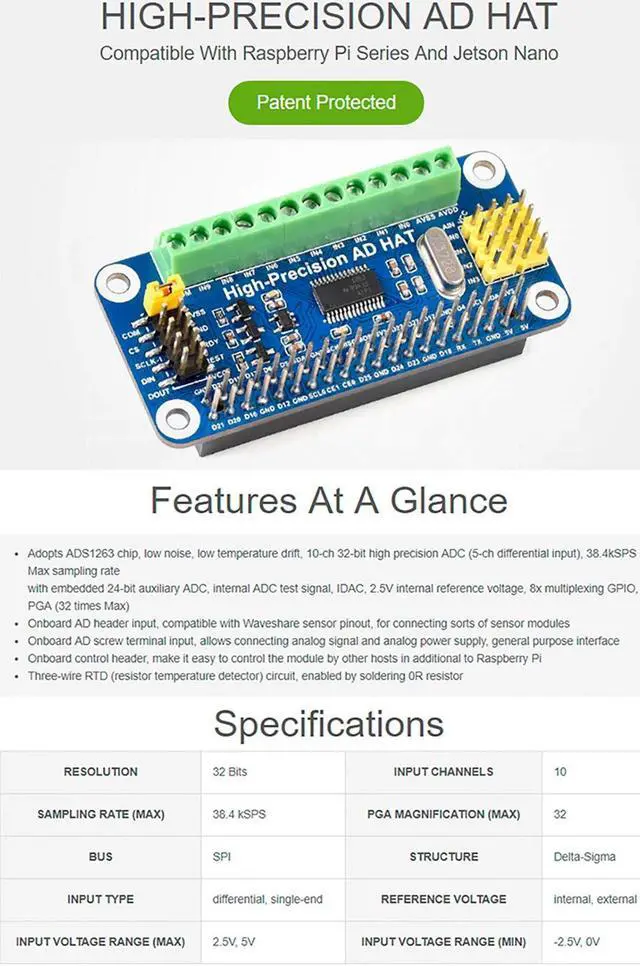

High-Precision AD HAT ADS1263 10-Channel 32-Bit ADC SPI Bus Low Noise Low Temperature Drift,for Raspberry Pi 4B/3B+/3B/2B/Zero/Zero W/Zero WH/2W and Jetson Nano

High-Precision AD HAT for Raspberry Pi, ADS1263 10-ch 32-bit ADC, compatible with Raspberry Pi series and Jetson Nano

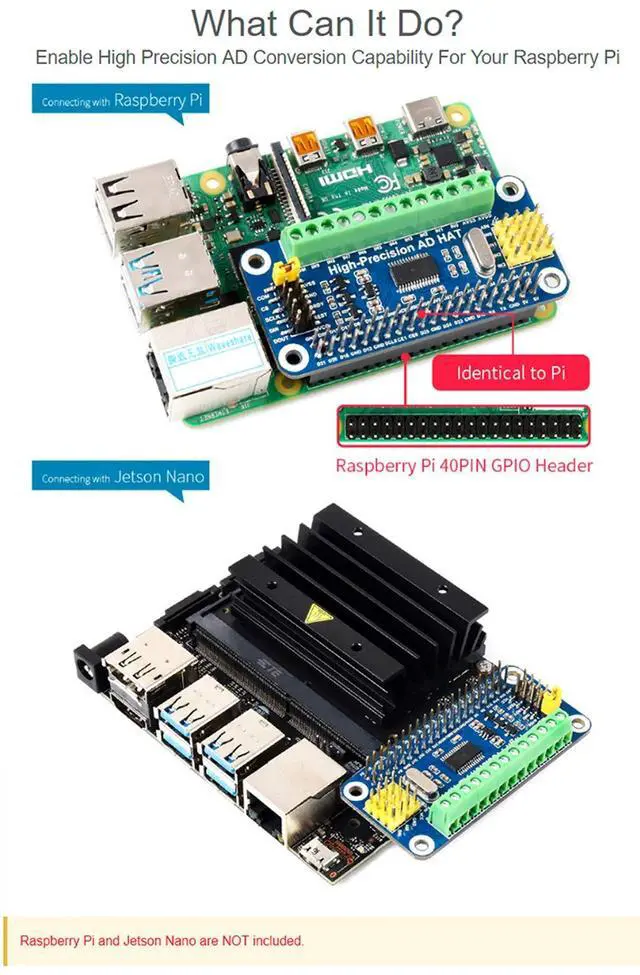

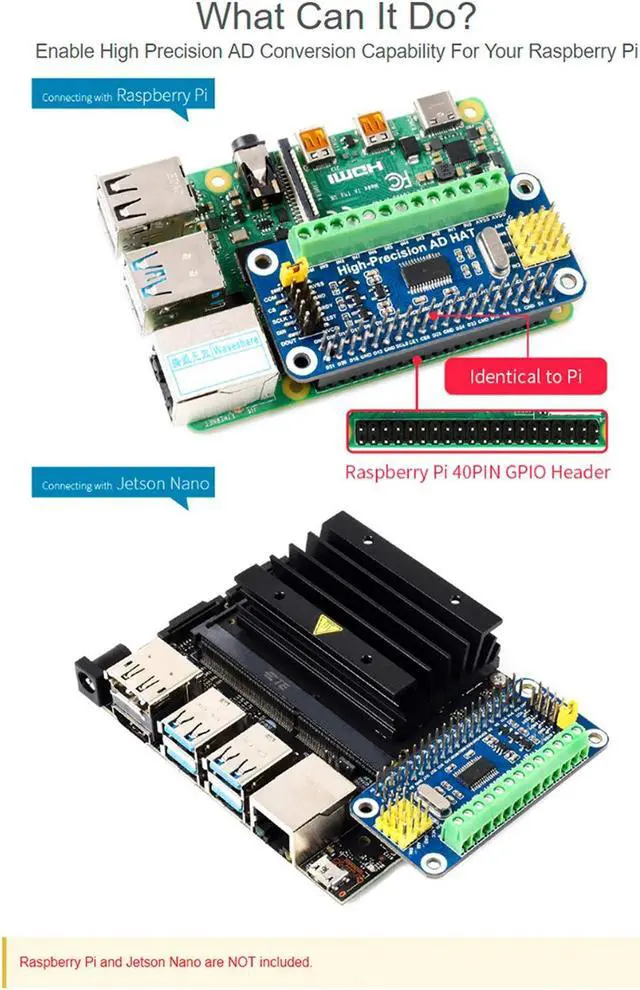

Raspberry Pi GPIO interface does not have AD function, if you want to use high-precision AD, Then i will be a good choice

Features
Adopts ADS1263 chip, low noise, low temperature drift, 10-ch 32-bit high precision ADC (5-ch differential input), 38.4 kSPS Max sampling rate
with embedded 24-bit auxiliary ADC, internal ADC test signal, IDAC, 2.5V internal reference voltage, 8x multiplexing GPIO, PGA (32 times Max)

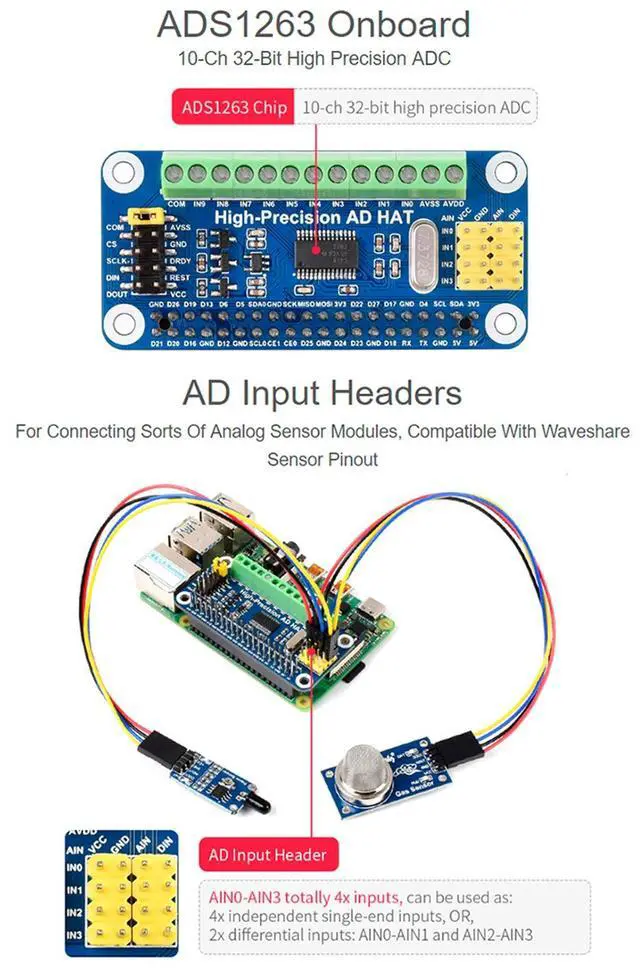

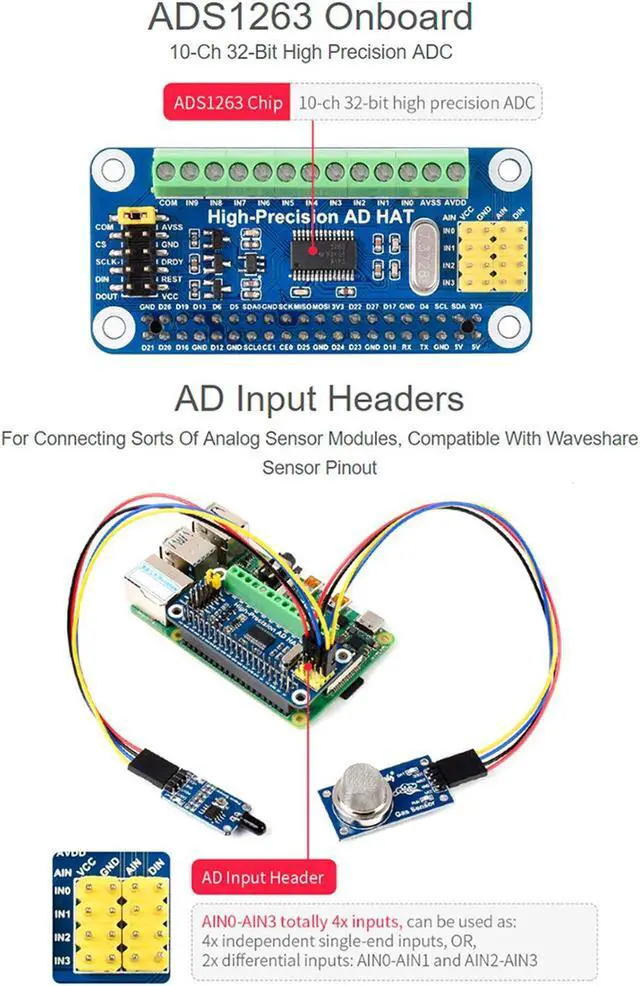

Onboard AD header input, compatible with Waveshare sensor pinout, for connecting sorts of sensor modules
Onboard AD screw terminal input, allows connecting analog signal and analog power supply, general purpose interface
Onboard control header, make it easy to control the module by other hosts in additional to Raspberry Pi
Three-wire RTD (resistor temperature detector) circuit, enabled by soldering 0R resistor

Specifications

Resolution: 32 Bits
Input channels: 10
Sampling rate (Max): 38.4 kSPS
PGA Magnification (Max): 32
Bus: SPI
Structure: Delta-Sigma
Input type: differential, single-end
Reference voltage: internal, external
Input voltage range (Max): 2.5V, 5V
Input voltage range (Min): - 2.5V, 0V

Online Tutorial/Online Document: n9. cl/loqot

Package Content

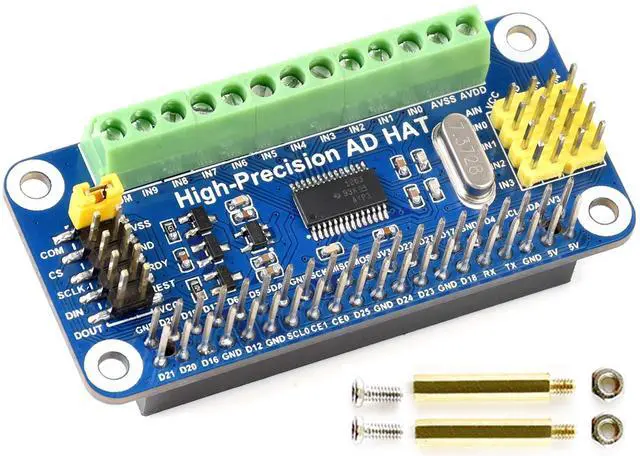

High-Precision AD HAT x1
RPi screws pack (2PCS) x1
