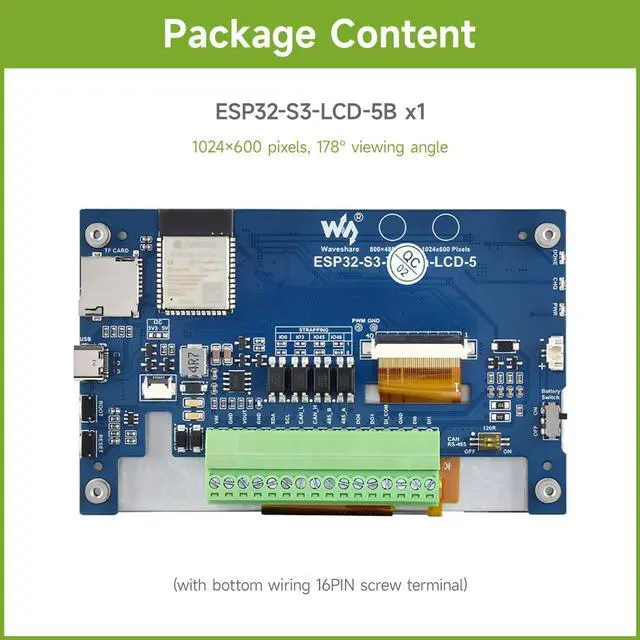

Waveshare ESP32-S3 5inch Display Development Board, 1024x600, 32-Bit LX7 Dual-Core Processor, Up to 240MHz Frequency, Supports WiFi & Bluetooth, with Onboard Antenna, No Touch

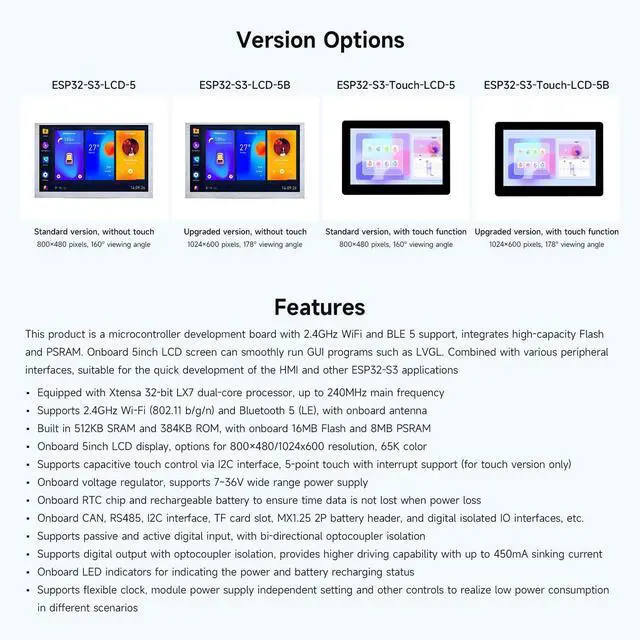

- Processor & Performance: Features an Xtensa 32-bit LX7 dual-core processor with a main frequency of up to 240MHz for high performance.
- Connectivity: Offers 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) with an onboard antenna, enabling wireless communication.
- Memory & Storage: Equipped with 512KB SRAM, 384KB ROM, 16MB Flash, and 8MB PSRAM for ample storage and smooth execution of applications.

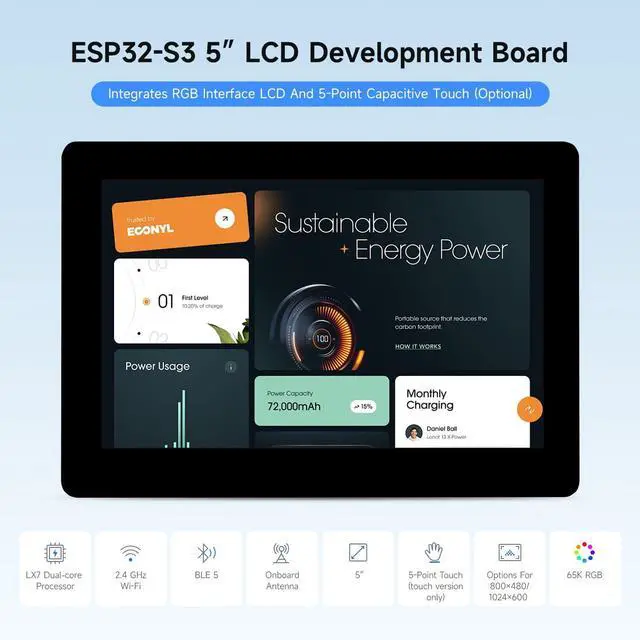

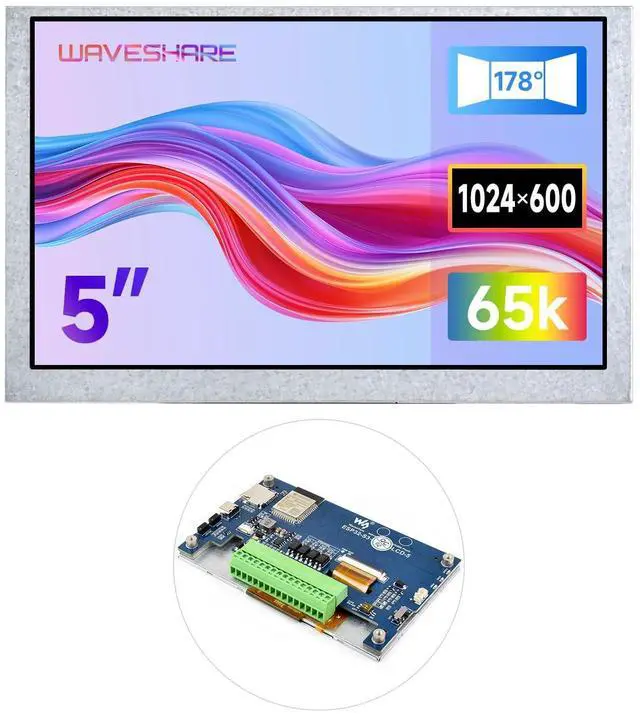

- Display: Onboard 5inch LCD display, options for 1024x600 resolution, 65K color
- Peripheral & Power Features: Supports various interfaces (CAN, RS485, I2C, TF card slot, optocoupler-isolated IOs) and offers a wide power supply range (7-36V), with onboard voltage regulator, RTC chip, MX1.25 2P battery header, and low-power consumption controls.
- Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
+
+
