waveshare ESP32-S3 1.47inch Display Development Board,172320 Resolution 262K Color RGB LED,Supports Multiple Peripherals

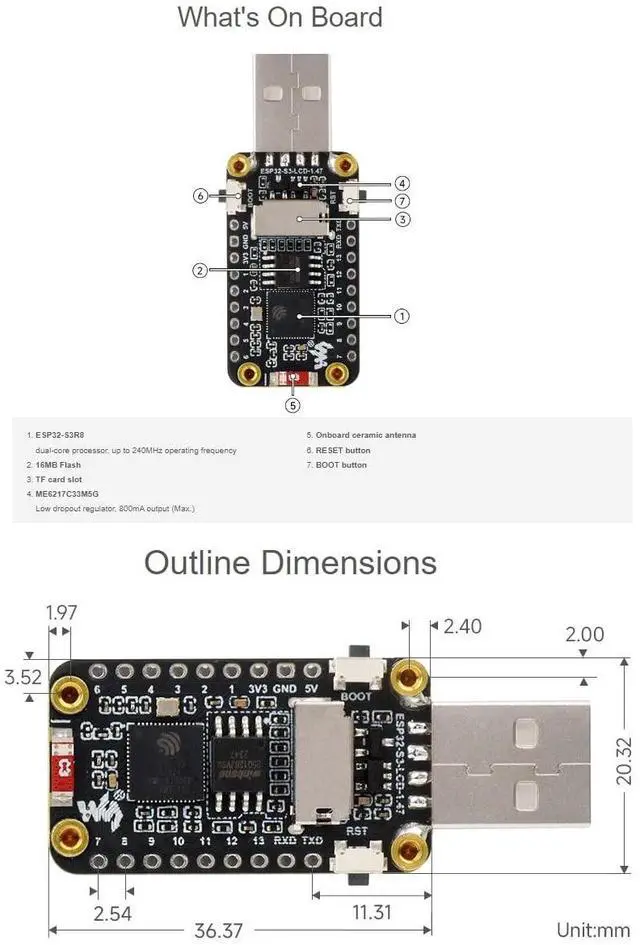

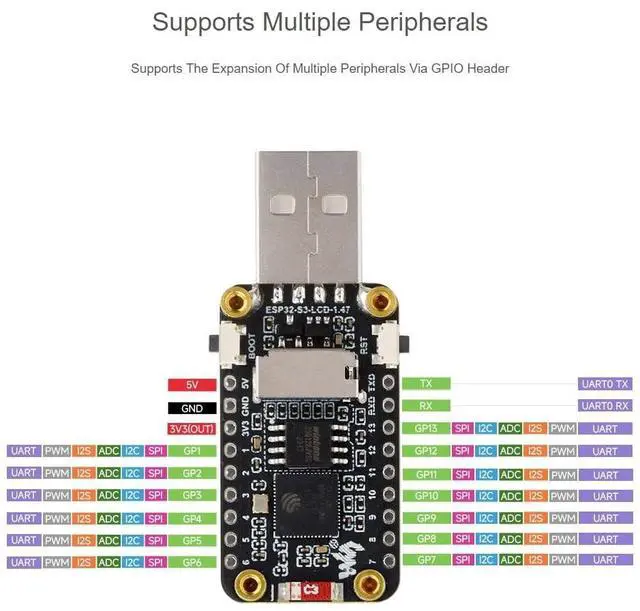

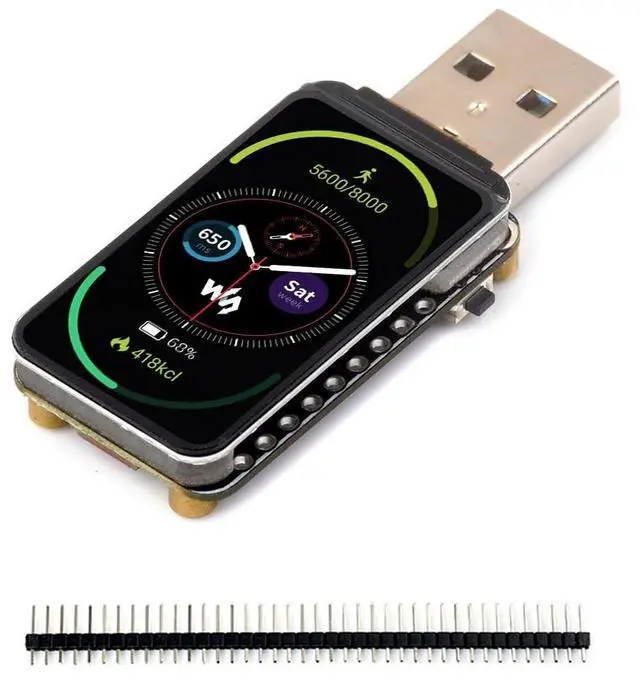

ESP32-S3 1.47 inch Display Development Board, 172320, 262K Color, Dual-Core Processor Up To 240MHz Frequency, Supports WiFi & Bluetooth, With Colorful RGB LED, ESP32 With DisplayFeaturesESP32-S3-LCD- 1.47 is a microcontroller development board with 2.4GH z WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 1.47 inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick developmentof the HMI and other ESP32-S3 applications. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequencySupports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antennaBuilt-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAMOnboard 1.47 inch LCD display, 172320 resolution, 262K colorAdapting multiple IO interfaces, integrates full-speed USB portOnboard TF card slot for external TF card storage of pictures or filesSupports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenariosBuilt-in RGB LED with clear acrylic sandwich panel for cool lighting effectsPackage ContentESP32-S3-LCD- 1.47 x1Black header 1FAQ1.

After the module downloads the demo and re-downloads it, why sometimes it can't connect to the serial port or the flashing fails? Long press the BOOT button, press RESET at the same time, then release RESET, then release the BOOT button, at this time the module can enter thedownload mode, which can solve most of the problems that can not be downloaded. 2. How to deal with the first compilation of the program being extremely slow? It's normal for the first compilation to be slow, just be patient
