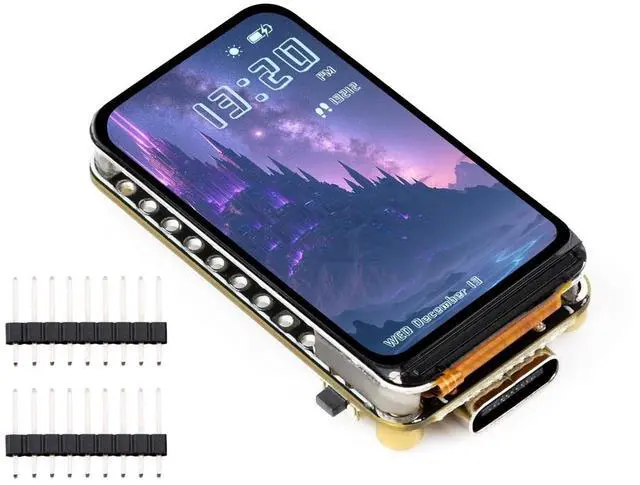

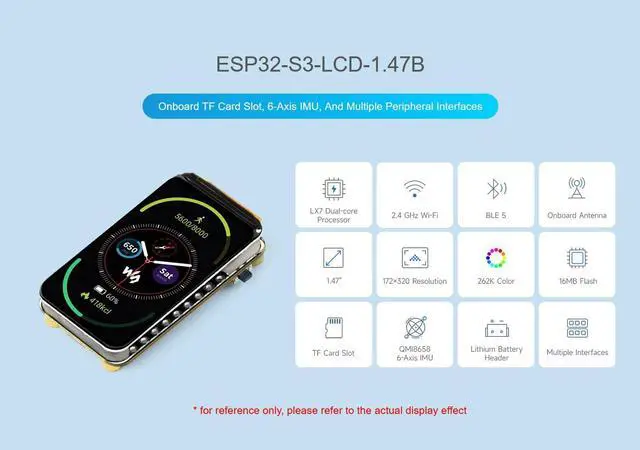

ESP32-S3 1.47inch LCD Display Development Board, 172320 262K Color Display, Onboard TF Card Slot, 6-Axis IMU, etc. Built-in RGB LED, Support Wi-Fi/BLE 5, for Dev of ESP32-S3 HMI Applications

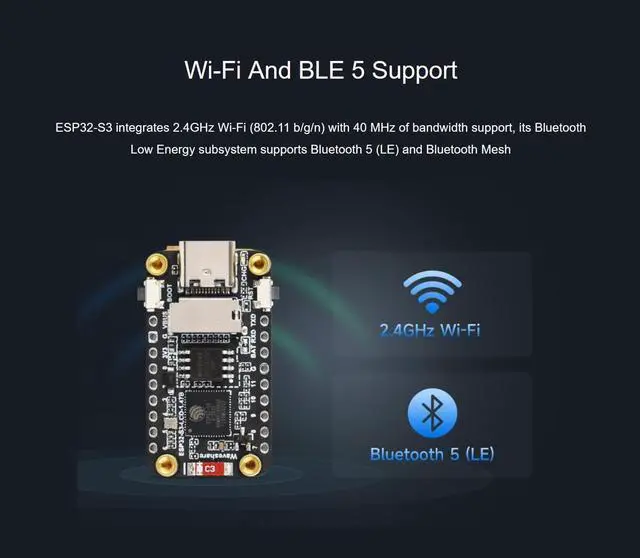

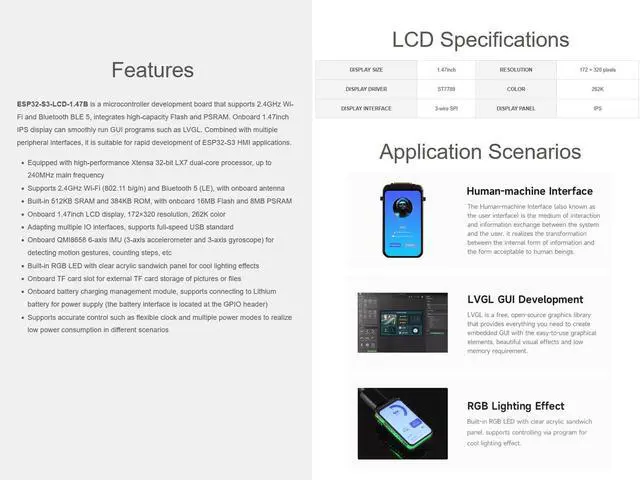

OverviewESP32-S3-LCD- 1.47B is a microcontroller development board that supports 2.4GH z Wi-Fi and Bluetooth BLE 5, integrates high-capacity Flash and PSRAM. Onboard 1.47 inch IPS display can smoothly run GUI programs such as LVGL. Combined with multiple peripheral interfaces, it is suitable for rapid development of ESP32-S3 HMI applications. FeaturesEquipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequencySupports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antennaBuilt-in 512KB S-R-A-M and 384KB ROM, with onboard 16MB Flash and 8MB PSRAMOnboard 1.47 inch LCD display, 172320 resolution, 262K colorAdapting multiple IO interfaces, supports full-speed USB standardOnboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etcBuilt-in RGB LED with clear acrylic sandwich panel for cool lighting effectsOnboard TF card slot for external TF card storage of pictures or filesOnboard battery charging management module, supports connecting to Lithium battery for power supply (the battery interface is located at the GPIO header) Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenariosPackage
ContentESP32-S3-LCD- 1.47B 1Black header 2NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
