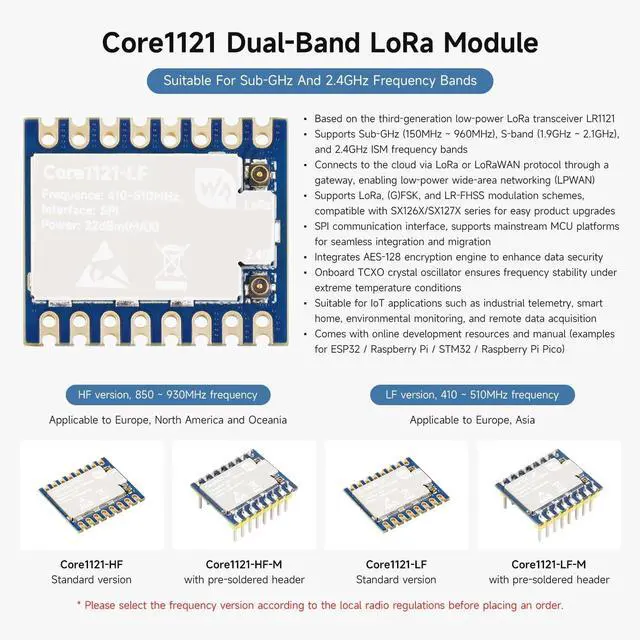

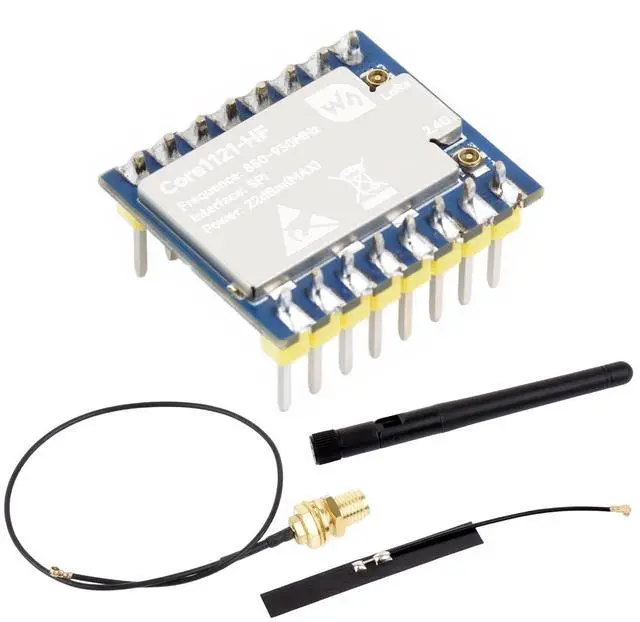

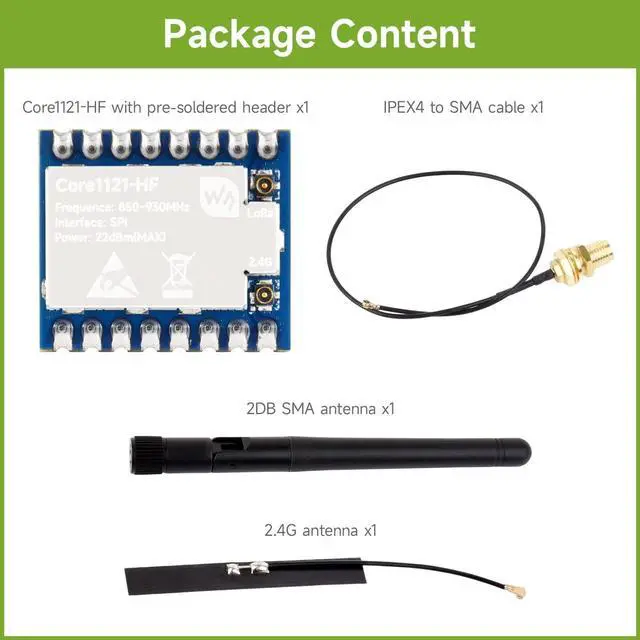

Waveshare Core1121 HF Dual-Band LoRa Module, Based on Low-Power LR1121 Transceiver, Suitable for Sub-GHz and 2.4GHz Frequency Bands, with Pre-soldered Header

Low-Power LR1121 Transceiver: Powered by the third-generation LR1121 low-power LoRa transceiver, the module offers energy-efficient performance, extending battery life for various IoT applications. ^^ Wide

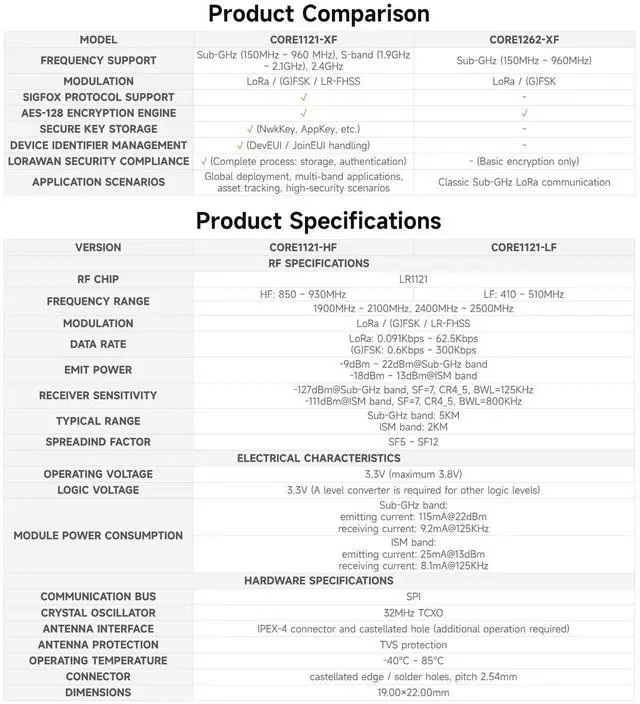

Frequency Band Support: The module supports Sub-GHz (150MHz ~ 960MHz), S-band ( 1.9GH z ~ 2.1GH z), and 2.4GH z ISM frequency bands, providing versatility for a wide range of communication needs across different regions. ^^ Cloud

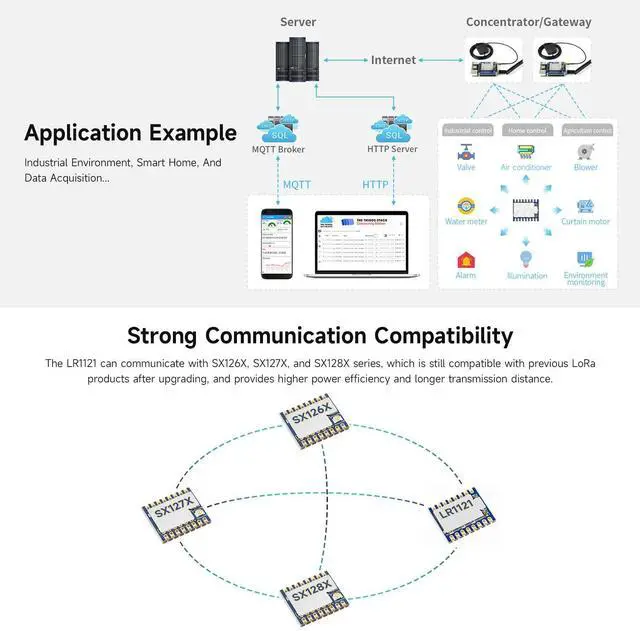

Connectivity via LoRa/LoRaWAN: It enables cloud connectivity through LoRa or LoRaWAN protocols via a gateway, ideal for creating low-power wide-area networks (LPWAN) for efficient, long-range data transmission.
^^ Modulation Scheme Flexibility: Supporting LoRa, (G) FSK, and LR-FHSS modulation schemes, the module is compatible with the SX126X/SX127X series, ensuring easy product upgrades and backward compatibility. ^^ Secure and
Stable Performance: Equipped with an AES-128 encryption engine for secure data transmission and an onboard TCXO crystal oscillator for stable frequency performance even in extreme temperatures, the module is perfect for industrial telemetry, smart home, environmental monitoring, and remote data acquisition applications.
^^ Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
