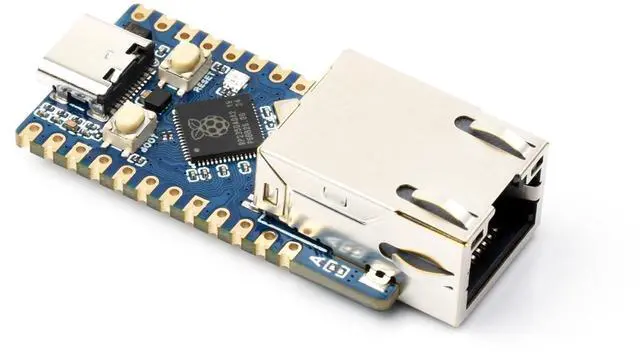

Waveshare RP2350 ETH Dev Board: RP2350 Ethernet Port Module, Onboard ETH, 14 Multi-function GPIO Pins, Tiny Size, Easy Integration, Linux Compatible, Ethernet Connectivity
- RP2350 Ethernet Port Module based on Raspberry Pi RP2350 dual-core & dual-architecture microcontroller, onboard ETH port , tiny size and easy integration
- RP2350-ETH mini development board onboard CH9120 with integrated TCP/IP protocol stack, supports TCP Server / TCP Client / UDP Server / UDP multiple communication modes, controllable via network
- 520KB of Static Random-Access Memory, and 4MB of onboard Flash memory
- 14 multi-function GPIO pins, compatible with some Pico HATs, configurable pin function, allows flexible development and integration
- Support C/C++, MicroPython, Arduino
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

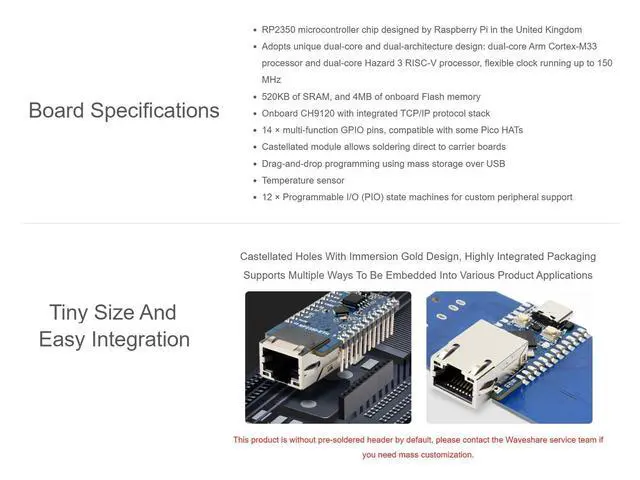

OverviewWaveshare RP2350-ETH Mini Development Board, RP2350 Ethernet Port Module, Based on Raspberry Pi RP2350 Dual-core & Dual-architecture Microcontroller, Onboard ETH Port, 14 Multi-function GPIO Pins, Tiny Size and Easy Integration. Board specifications--RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom--Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz--520KB of Static Random-Access Memory, and 4MB of onboard Flash memory--Onboard CH9120 with integrated TCP/IP protocol stack--14 multi-function GPIO pins, compatible with some Pico HATs--Castellated module allows soldering direct to carrier boards--Drag-and-drop programming using mass storage over USB--Temperature sensor--12 Programmable I/O (PIO) state machines for custom peripheral supportPackage
ContentRP2350-ETH x1NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
ContentRP2350-ETH x1NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
