$49.99
Meet Your Seller

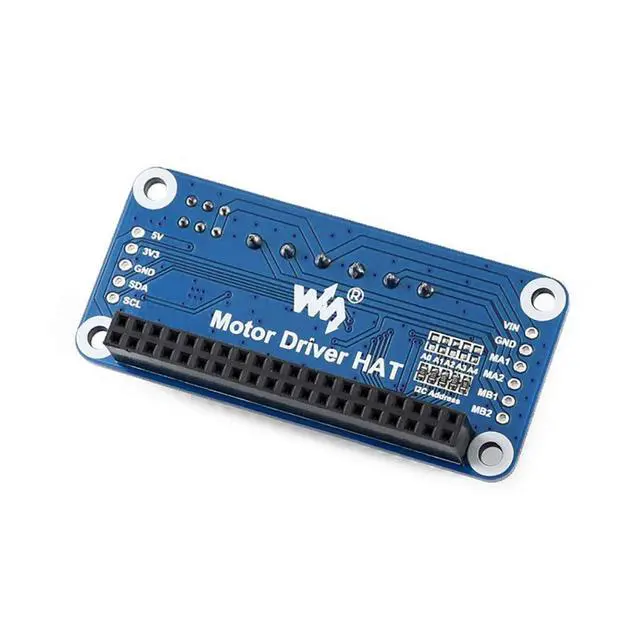

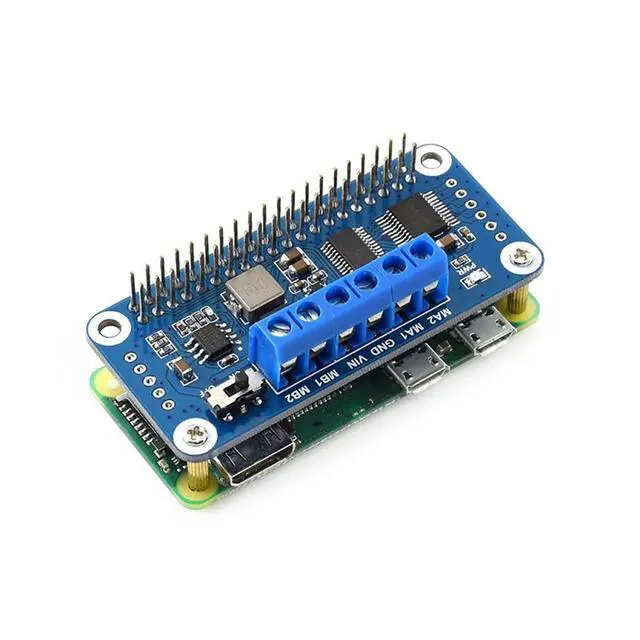

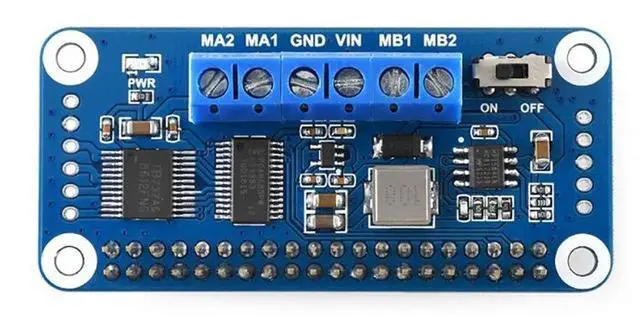

Motor Driver HAT for Raspberry Pi Onboard PCA9685 TB6612FNG Drive Two DC Motors I2C Interface 5V 3A Can be Stackable up to 32 This Modules
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- I2C controlled, by setting 5 address jumpers, it is stackable up to 32 this modules; Reserved I2C control pins, allows to work with other control boards
- Onboard PCA9685 chip, provides 12-bit hardware PWM to adjust motor speed; Onboard TB6612FNG dual H-bridge motor driver, high efficiency, low heating
- Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
- Comes with development resources and manual (examples in BCM2835, wiringPi, and python) : www.waveshare.com/wiki/Motor_Driver_HAT
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
OverviewThe Motor Driver HAT is designed for Raspberry Pi, controlled via I2C interface, will drive two DC motors at the same time. It's an ideal choice for you to DIY mobile robots. FeaturesStandard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boardsI2C controlled, by setting 5 address jumpers, it is stackable up to 32 this modulesOnboard PCA9685 chip, provides 12-bit hardware PWM to adjust motor speedOnboard TB6612FNG dual H-bridge motor driver, high efficiency, low heatingIntegrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminalReserved I2C control pins, allows to work with other control boardsComes with development resources and manual (examples in BCM2835, wiringPi, and
python)SpecificationsPower supply: 6V~12V (VIN terminal)
Logic voltage: 3.3VPWM
driver: PCA9685Control
interface: I2CMotor
driver: TB6612FNG
Dimension: 65mm
x 30mmMounting hole size: 3.0 mmPackage

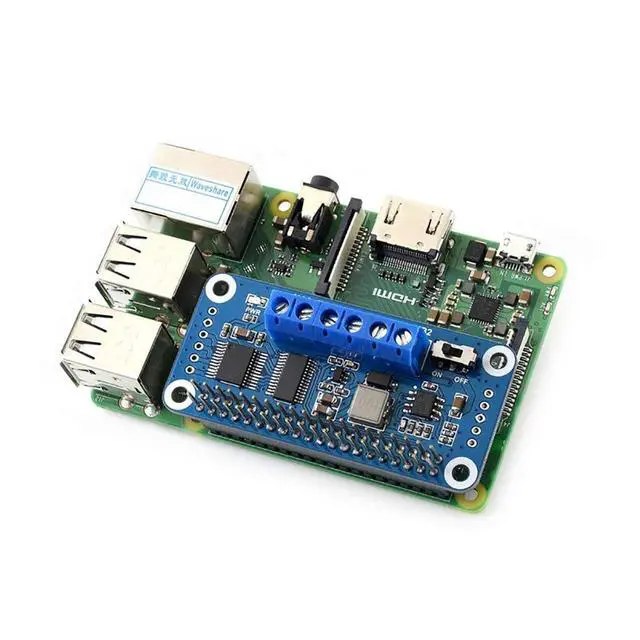

ContainsNote: Raspberry Pi in the photos is NOT included. 1. Motor Driver HAT x12. RPi screws pack (2pcs) x1
python)SpecificationsPower supply: 6V~12V (VIN terminal)
Logic voltage: 3.3VPWM
driver: PCA9685Control
interface: I2CMotor
driver: TB6612FNG
Dimension: 65mm
x 30mmMounting hole size: 3.0 mmPackage
ContainsNote: Raspberry Pi in the photos is NOT included. 1. Motor Driver HAT x12. RPi screws pack (2pcs) x1
