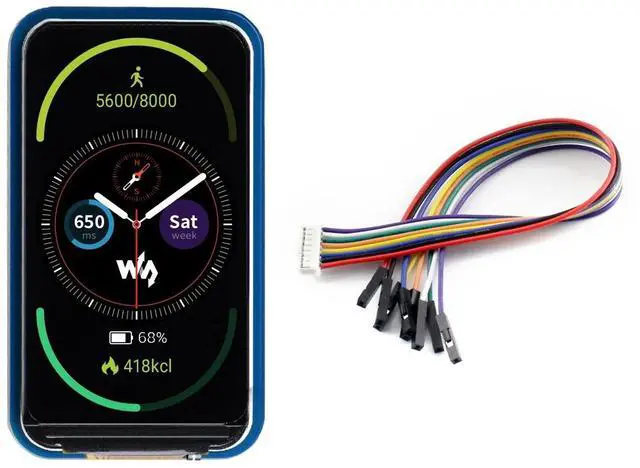

Waveshare 1.47inch LCD Display Module Compatible with Raspberry Pi Pi4B/3B+/3B and so on Rounded Corners 172320 Resolution with SPI Interface
- Comes with development resources (examples for Raspberry Pi/Arduino/STM32), please check it on the online user manual.

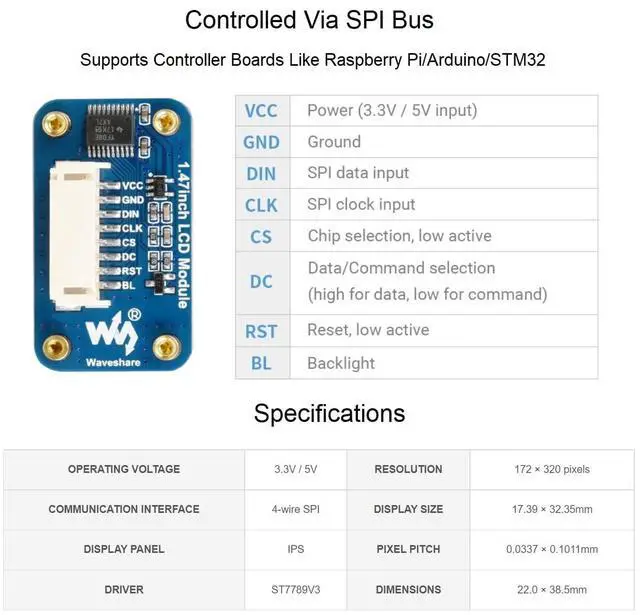

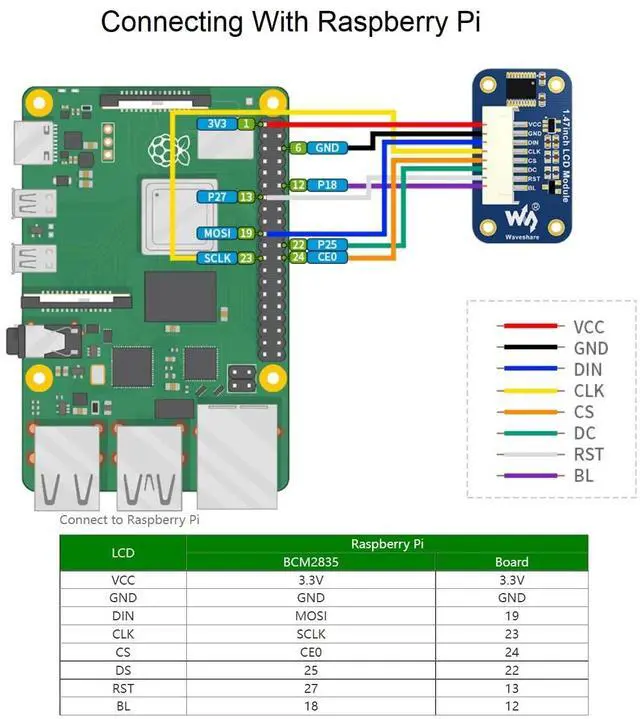

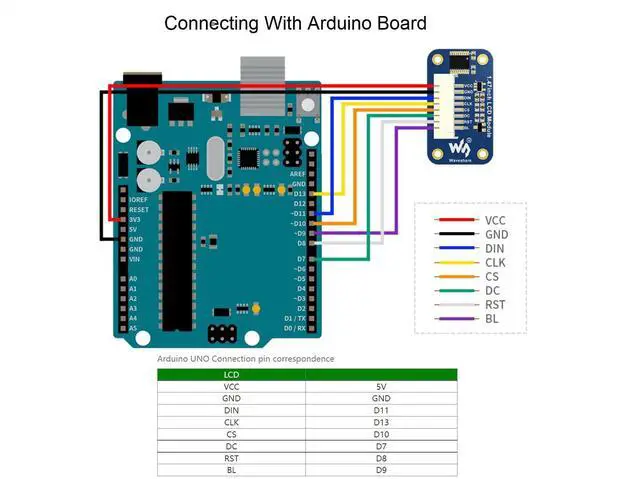

- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32

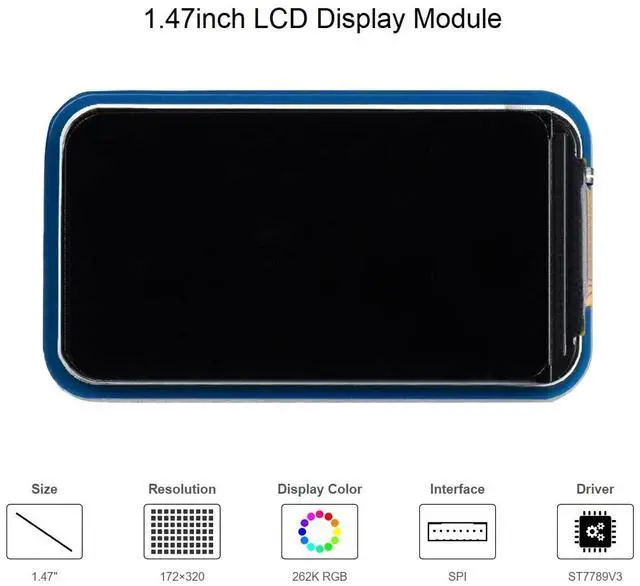

- 172320 resolution, 262K RGB colors, clear and colorful displaying effect
- Working voltage: 3.3V/5V (please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly)
- Communication interface: SPI;Screen Type: IPS;Control chip: ST7789V3;Resolution: 172(H)RGB x 320(V);Display size: 17.39 x 32.35 mm;Pixel pitch: 0.0337(H) x 0.1011(V) mm;Product size: 22.0 38.5 mm.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Comes with development resources (examples for Raspberry Pi/Arduino/STM32), please check it on the online user manual. ^^ SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32 ^^ 172320 resolution, 262K RGB colors, clear and colorful displaying effect ^^
Working voltage: 3.3V /5V (please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly) ^^
Communication interface: SPI;
Screen Type: IPS;
Control chip: ST7789V3;
Resolution: 172 (H) RGB x 320 (V);
Display size: 17.39 x 32.35 mm;
Pixel pitch: 0.0337 (H) x 0.1011 (V) mm;
Product size: 22.0 38.5 mm.
Working voltage: 3.3V /5V (please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly) ^^
Communication interface: SPI;
Screen Type: IPS;
Control chip: ST7789V3;
Resolution: 172 (H) RGB x 320 (V);
Display size: 17.39 x 32.35 mm;
Pixel pitch: 0.0337 (H) x 0.1011 (V) mm;
Product size: 22.0 38.5 mm.
