4-CH Current/Voltage/Power Monitor HAT for Raspberry Pi 4B/3B+/3B/2B/B+/A+/Zero/W, I2C/SMBus Interface Onboard 0.1 1 Sampling Resistor Measure Bi-Directional Current up to 3.2A Embed 12-bit ADC

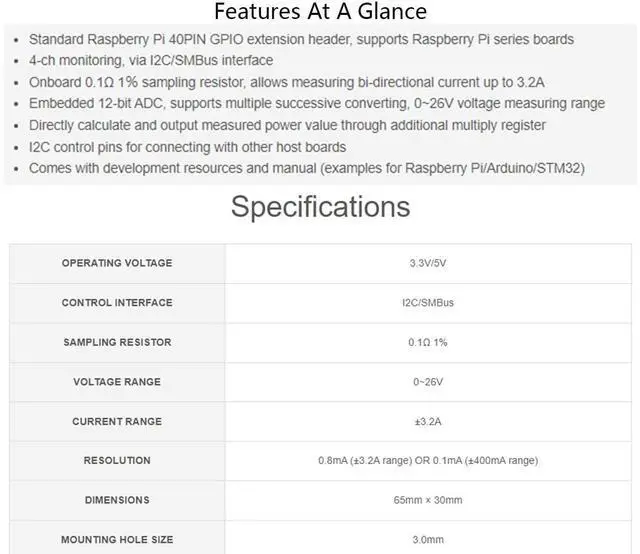

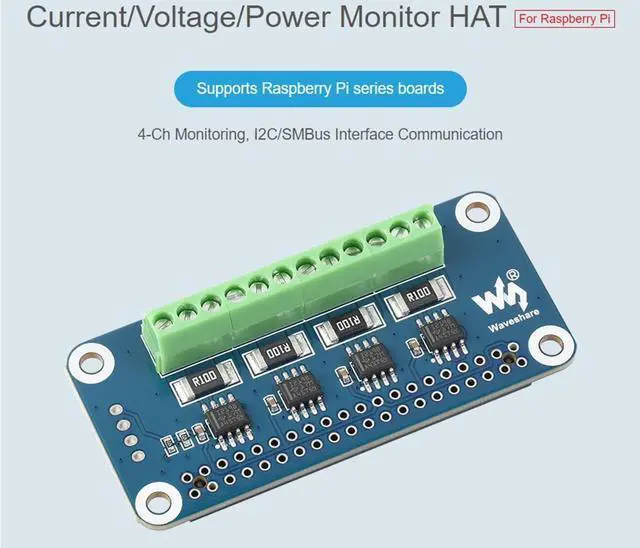

4-ch Current/Voltage/Power Monitor HAT for Raspberry Pi, I2C/SMBus InterfaceOverviewThis is a 4-ch current and power monitor HAT designed for Raspberry Pi. Via the I2C or SMBus interface, it is easy to monitor each channel's current, voltage, and power consumption, as well as the voltage between both sides of the sampling resistor. FeaturesStandard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, 4-ch monitoring, via I2C/SMBus interface, Onboard 0.1 1 sampling resistor, allows measuring bi-directional current up to 3.2AE mbedded 12-bit ADC, supports multiple successive converting, 0~26V voltage measuring range, Directly calculate and output measured power value through additional multiply register, I2C control pins for connecting with other host boardsComes with development resources and manual (examples for
Raspberry Pi/Arduino/STM32)SpecificationsOperating voltage: 3.3V
/5VControl interface: I2C/SMBusSampling
resistor: 0.1
1%Voltage range: 0~26VCurrent
range: 3.2AR
esolution: 0.8 mA ( 3.2A range) OR 0.1 mA (400mA range)
Dimensions: 65mm
x 30mmMounting hole size: 3.0 mmOnline Development Resources /User
Manual: //bit. ly/4az09mwPackage Content1. Current/Power Monitor HAT x 12.2 x20PIN female pinheader x13.
RPi screws pack (2pcs) x1Note: the Raspberry Pi is NOT included.
