ESP32-C6 1.47inch Capacitive Touch Display Development Board with pre-soldered Header 172320 Resolution 262K Color LCD,Supports Wi-Fi 6(802.11 b/g/n) and Bluetooth 5 (LE)

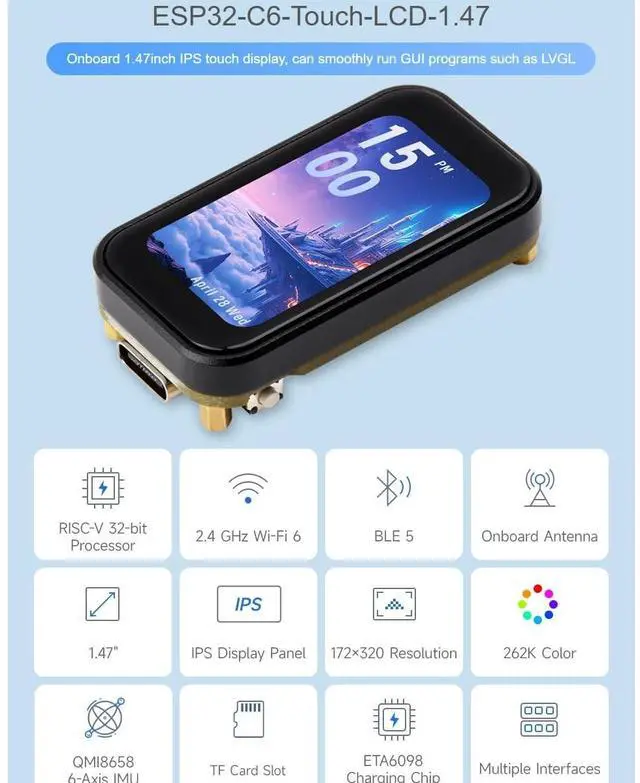

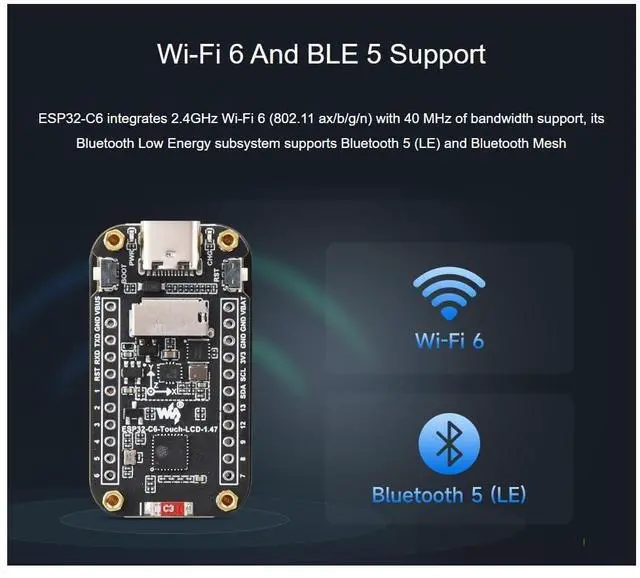

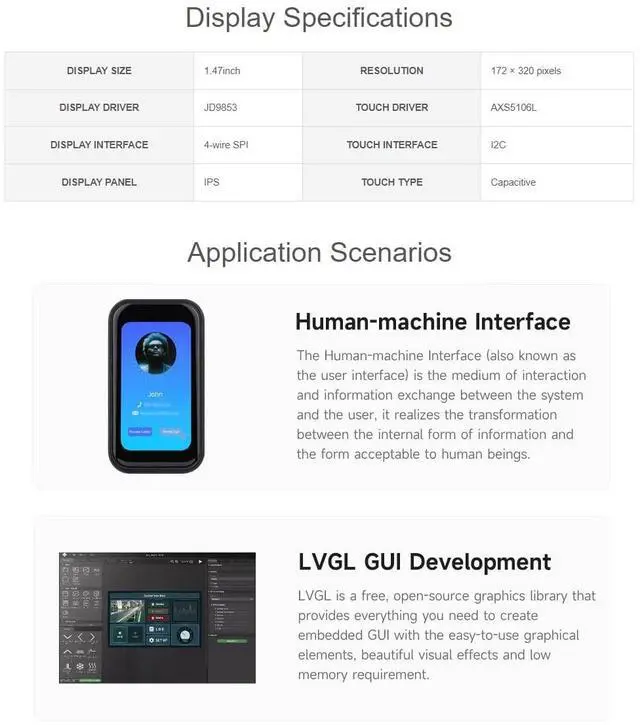

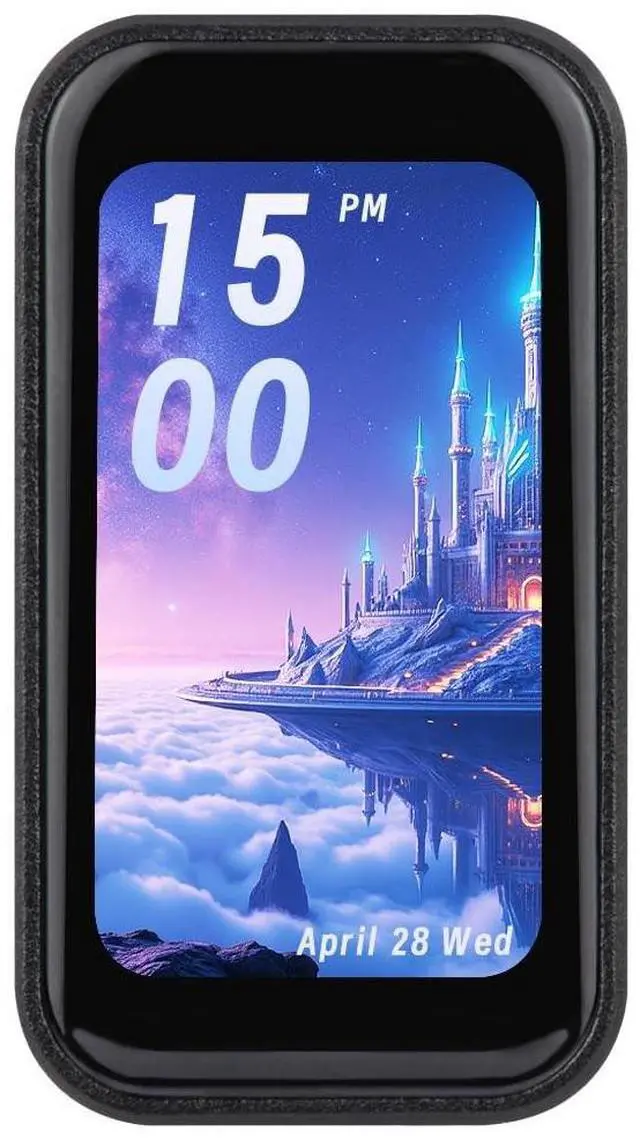

ESP32-C6 1.47 inch Touch Display Development Board with pre-soldered Header, 172320 Resolution, 262K Display Color, Supports Wi-Fi 6 / BLE 5, 160MHz RISC-V ProcessorFeaturesESP32-C6-Touch-LCD- 1.47 uses ESP32-C6FH8 chip with 2.4GH z WiFi 6 and Bluetooth BLE 5 support, integrates 8MB Flash, Onboard 1.47 inch IPS displaycan smoothly run GUI programs such as LVGL. It is suitable for the quick development of the HMI and other ESP32-C6 applications. Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHzSupports 2.4GH z Wi-Fi 6 ( 802.11 ax/b/g/n) and Bluetooth 5 (LE), with onboard antennaBuilt-in 320KB ROM, 512KB HP SRAM, and 16KB LP SRAM, integrates 8MB FlashOnboard 1.47 inch capacitive touch LCD display, 172320 resolution, 262K colorAdapting multiple IO interfaces, supports full-speed USB standardOnboard TF card slot for external TF card storage of pictures or filesSupports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenariosUsage InstructionsESP32-C6-Touch-LCD- 1.47 -M currently provides two development tools and frameworks, Arduino IDE and ESP-IDF, providing flexible development options, youcan choose the right development tool according to your project needs and personal habits.

Package ContentESP32-C6-Touch-LCD- 1.47 with pre-soldered header 1 NoteDevelopment Resources is provided, please contact us if you have any problem.
