Waveshare High-Precision AD HAT for Raspberry Pi, ADS1263 10-Ch 32-bit ADC, GPIO Connectivity
- Adopts ADS1263 chip, low noise, low temperature drift, 10-ch 32-bit high precision ADC (5-ch differential input), 38.4kSPS Max sampling rate with embedded 24-bit auxiliary ADC, internal ADC test signal, IDAC, 2.5V internal reference voltage, 8x multiplexing GPIO, PGA (32 times Max)
- Onboard AD header input, compatible with Waveshare sensor pinout, for connecting sorts of sensor modules
- Onboard AD screw terminal input, allows connecting analog signal and analog power supply, general purpose interface
- Onboard control header, make it easy to control the module by other hosts in additional to Raspberry Pi
- Three-wire RTD (resistor temperature detector) circuit, enabled by soldering 0R resistor
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
OverviewHigh-Precision AD HAT For Raspberry Pi, ADS1263 10-Ch 32-Bit ADC

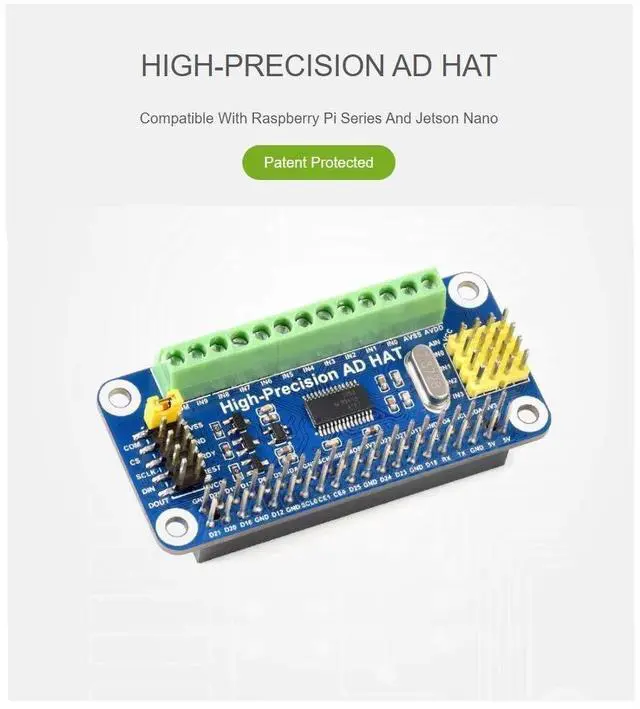

Function1. HIGH-PRECISION AD HAT

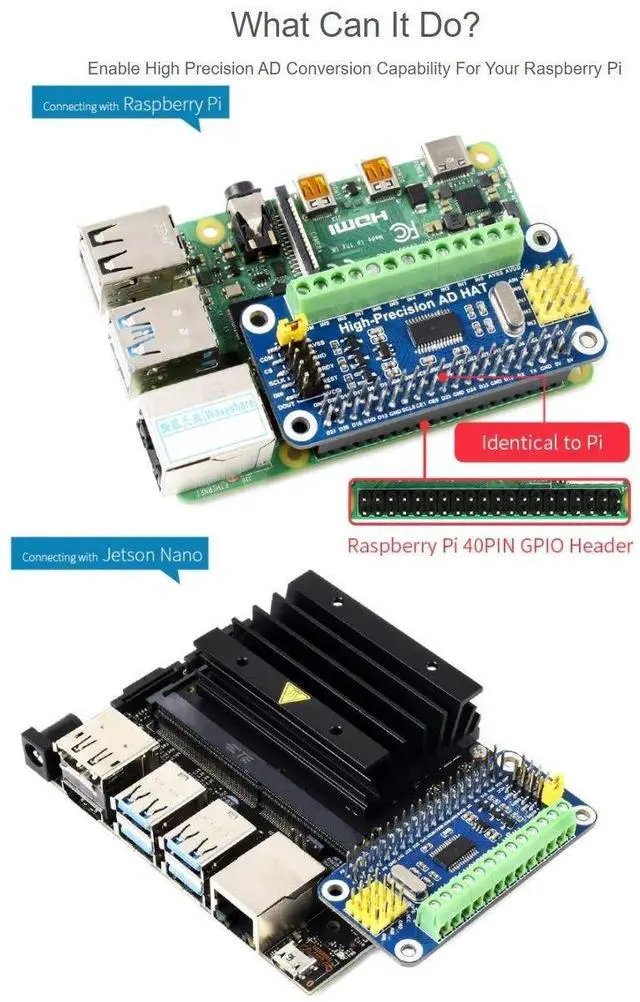

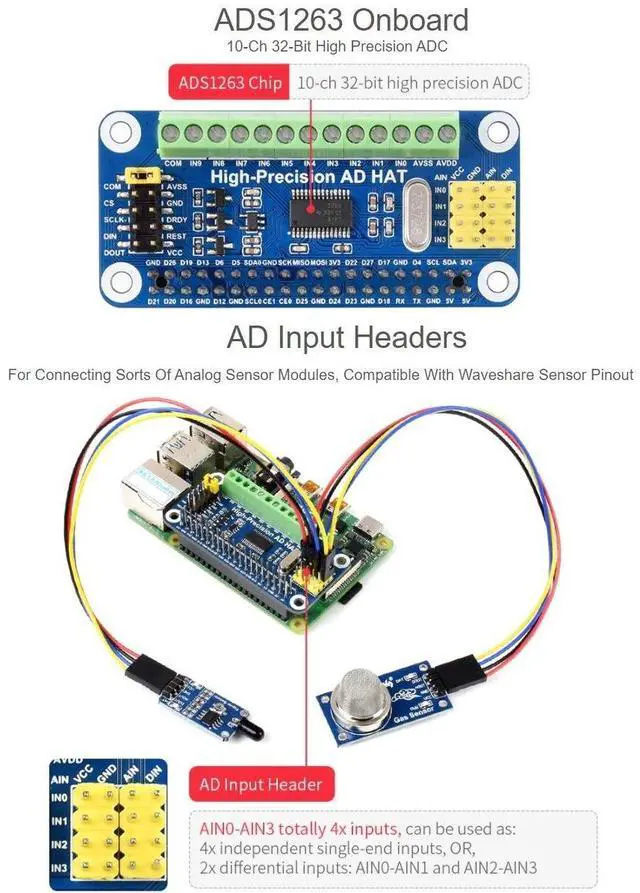

Compatible With Raspberry Pi Series And Jetson Nano, Enable High Precision AD Conversion Capability For Your Raspberry Pi2. ADS1263 Onboard10-Ch 32-Bit High Precision ADC3. AD Input HeadersFor Connecting Sorts Of Analog Sensor Modules, Compatible With Waveshare Sensor Pinout4. AD Input Screw TerminalFor Connecting Analog Signal And Analog Power Supply, General
PurposeSpecificationsRESOLUTION: 32
BitsSAMPLING RATE (MAX): 38.4
kSPSBUS: SPIINPUT
TYPE: differential, single-endINPUT
VOLTAGE RANGE (MAX): 2.5V, 5VINPUT
CHANNELS: 10PGA
MAGNIFICATION (MAX):
32STRUCTURE: Delta-SigmaREFERENCE
VOLTAGE: internal, externalINPUT

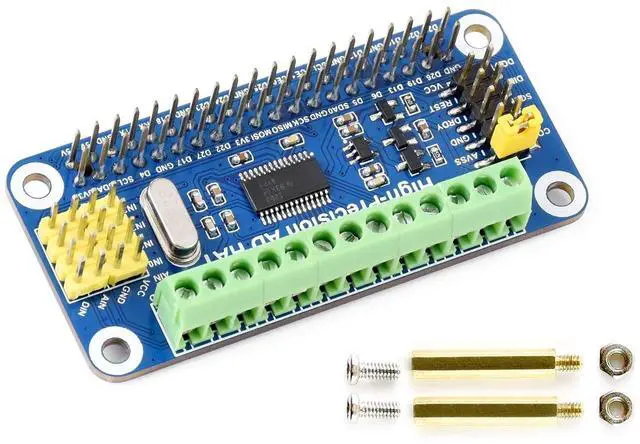

VOLTAGE RANGE (MIN): - 2.5V, 0VPackage ContentHigh-Precision AD HAT x1RPi screws pack (2PCS) x1Noteaspberry Pi and Jetson Nano are NOT included. Development Resources are providedplease contact with us via buyer message to get.
Function1. HIGH-PRECISION AD HAT
Compatible With Raspberry Pi Series And Jetson Nano, Enable High Precision AD Conversion Capability For Your Raspberry Pi2. ADS1263 Onboard10-Ch 32-Bit High Precision ADC3. AD Input HeadersFor Connecting Sorts Of Analog Sensor Modules, Compatible With Waveshare Sensor Pinout4. AD Input Screw TerminalFor Connecting Analog Signal And Analog Power Supply, General
PurposeSpecificationsRESOLUTION: 32
BitsSAMPLING RATE (MAX): 38.4
kSPSBUS: SPIINPUT
TYPE: differential, single-endINPUT
VOLTAGE RANGE (MAX): 2.5V, 5VINPUT
CHANNELS: 10PGA
MAGNIFICATION (MAX):
32STRUCTURE: Delta-SigmaREFERENCE
VOLTAGE: internal, externalINPUT
VOLTAGE RANGE (MIN): - 2.5V, 0VPackage ContentHigh-Precision AD HAT x1RPi screws pack (2PCS) x1Noteaspberry Pi and Jetson Nano are NOT included. Development Resources are providedplease contact with us via buyer message to get.
