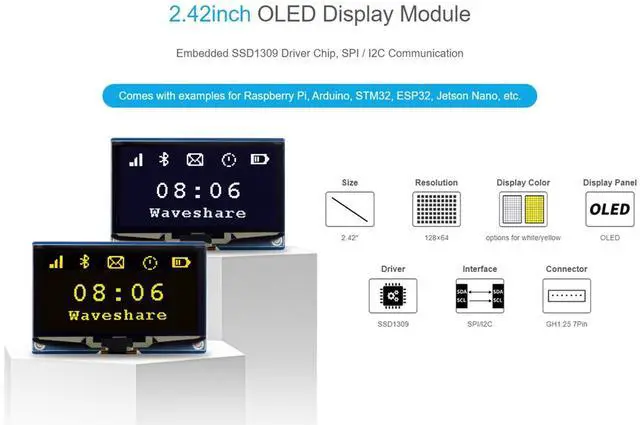

waveshare 2.42inch OLED Display Module 12864 Resolution for Raspberry Pi/forArduino/STM32/ESP32/Jetson Nano, with SSD1309 Driver Chip SPI / I2C Communication 3.3V / 5V, White Display Color

OverviewThis is 2.42 inch OLED Display Module 2864 Resolution with an embedded SSD1309 driver chip and supports SPI/I2C communication, White Display Color. We also provide the demo codes for Raspberry Pi Pico, Arduino, STM32, ESP32, and Jetson Nano.

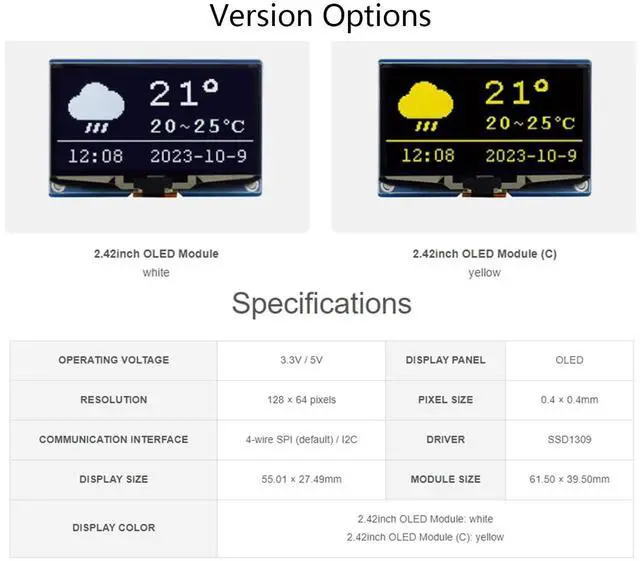

SpecificationsOPERATING VOLTAGE: 3.3V / 5VCOMMUNICATION
INTERFACE: 4-wire SPI (default) /
I2CDRIVER CHIP:
SSD1309RESOLUTION: 128 64 pixelsDISPLAY
COLOR: WHITEDISPLAY
SIZE: 55.01 27.49 mmPIXEL
SIZE: 0.4 0.4 mmMODULE
SIZE: 61.50 39.50 mmHardware ConfigurationOLED module provides two kinds of driver interfaces: 4-wire SPI and I2C interfaces respectively. There are two optional soldering resistors on the back of the module at the lower left corner, through the choice of resistors to select the corresponding communication mode. The module adopts a 4-wire SPI communication mode by default, that is, the resistor is connected to the SPI by default. The specific hardware configuration is as follows: 4-wire

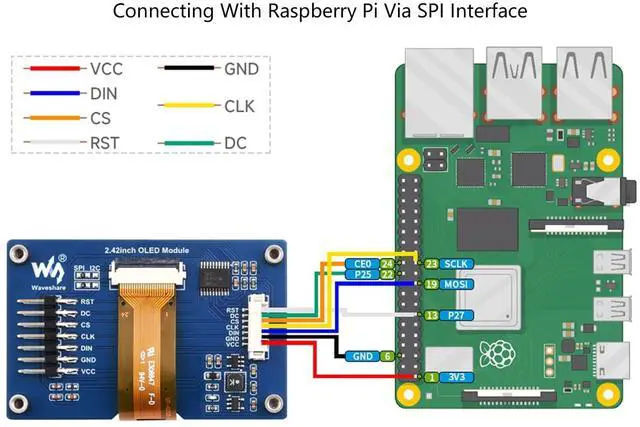

SPI: That is the factory demo setting: two 0R resistors are connected to the SPI position; DIN connects to the host MOSI and CLK connects to the host SCLK.
I2C: Two 0R resistors are connected to the I2C position; DIN connects to the host SDA and CLK connects to the host SCL. The DC pin can be used to change the
I2C Address: Set Low, the
I2C Address is: 0x3C; Set High, the I2C Address is 0x3D.
Note: The demo is set as SPI mode by default, if you need to switch the mode, please modify the DEV_Config. h. See demo description - underlying hardware interface - interface selection for more details. Package Content 2.42 inch OLED Module x1GH 1.25 7PIN cable x1Online Development Resources /User
Manual: //bit. ly/45LKn4c
