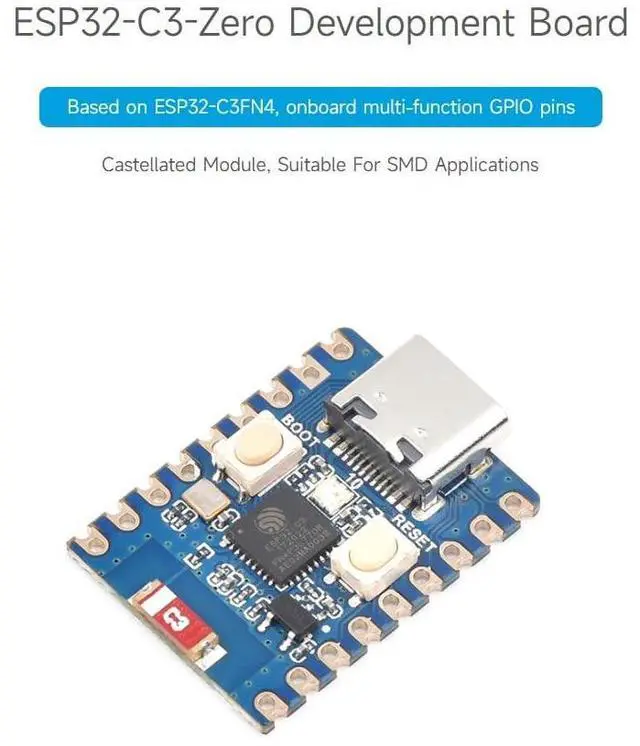

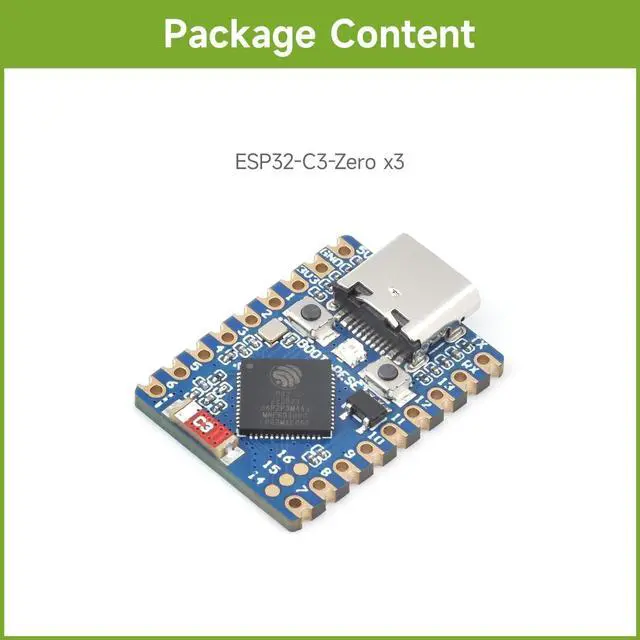

Waveshare 3PCS ESP32-C3 Mini Development Board, Based On ESP32-C3FN4 Single-Core Processor, 160MHz Running Frequency, 2.4GHz Wi-Fi & BLE 5
- This version is without pre-soldered header
- Low-power SoC equipped with RISC-V 32-bit single-core processor, up to 160MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE). 400KB of SRAM and 384KB ROM, and 4MB of onboard Flash memory
- Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
- Integrated with USB serial port full-speed controller, 15 GPIO pins allows flexibly configuring pin functions. 3 SPI, 1 I2C, 2 UART, 1 I2S, 2 ADC, etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This version is without pre-soldered header ^^ Low-power SoC equipped with RISC-V 32-bit single-core processor, up to 160MHz main frequency ^^ Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE). 400KB of SRAM and 384KB ROM, and 4MB of onboard Flash memory ^^ Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios ^^ Integrated with USB serial port full-speed controller, 15 GPIO pins allows flexibly configuring pin functions.
3 SPI, 1 I2C, 2 UART, 1 I2S, 2 ADC, etc.
3 SPI, 1 I2C, 2 UART, 1 I2S, 2 ADC, etc.
