waveshare 5.83inch E-Ink Display HAT Compatible with Raspberry Pi 4B/3B+/3B/2B/B+/A+/Zero/Zero W/WH/Zero 2W Series Boards 648480 Resolution Red/Black/White Three-Color SPI Interface
- Provide online user manual (examples for Raspberry Pi/STM32), please check the manual carefully before using!

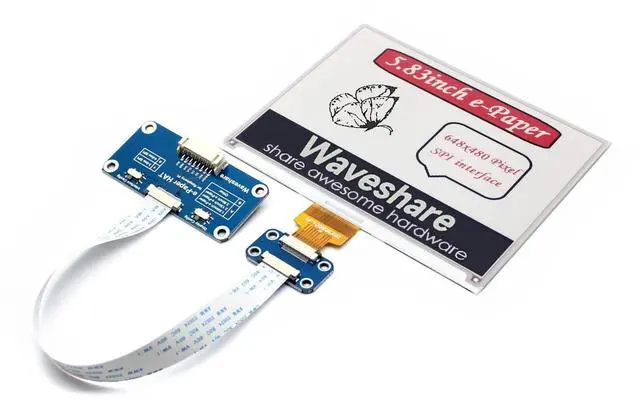

- This is an E-Ink display HAT for Raspberry Pi, 5.83inch, 648480 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing

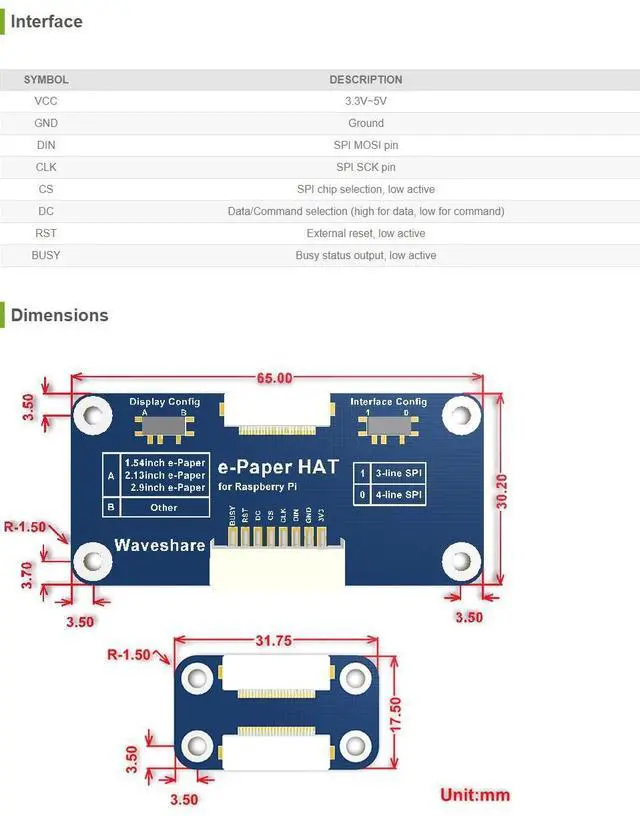

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
+
+

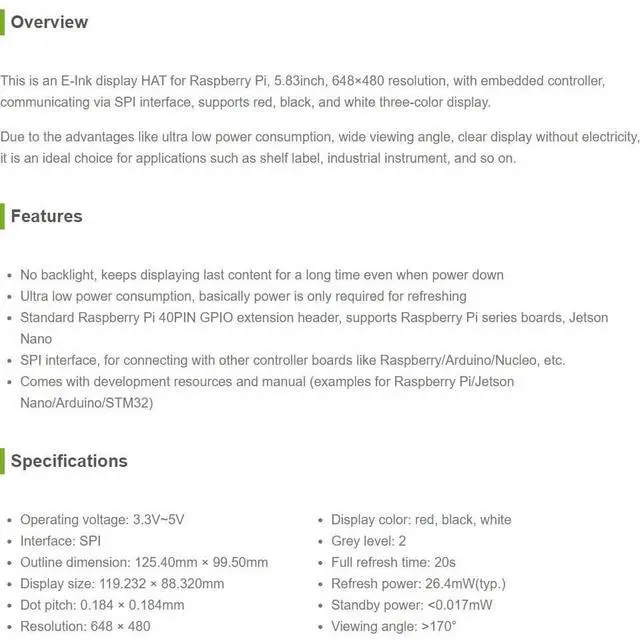

Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Provide online user manual (examples for Raspberry Pi/STM32), please check the manual carefully before using! ^^ This is an E-Ink display HAT for Raspberry Pi, 5.83 inch, 648480 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. ^^ No backlight, keeps displaying last content for a long time even when power down ^^ Ultra low power consumption, basically power is only required for refreshing ^^ Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano.
SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
