Waveshare Luckfox Lyra RK3506G2 Linux Micro Development Board, Integrates Tripe-core ARM Cortex-A7 and ARM Cortex-M0 Processors, with 256MB Flash, Without Header

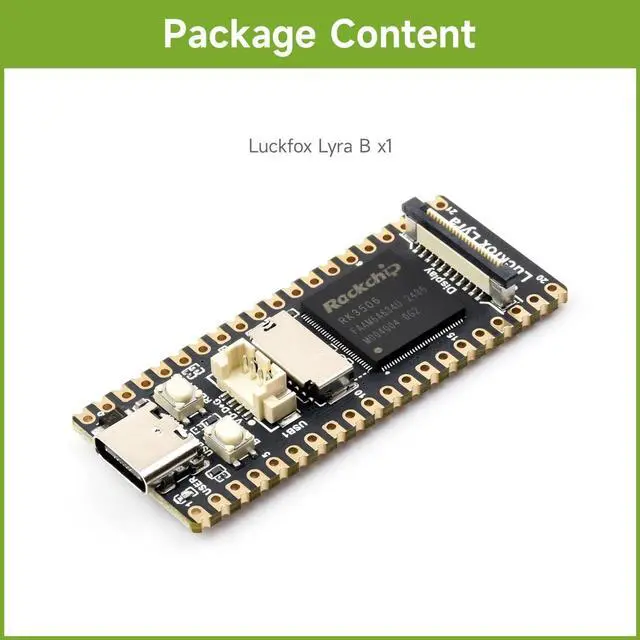

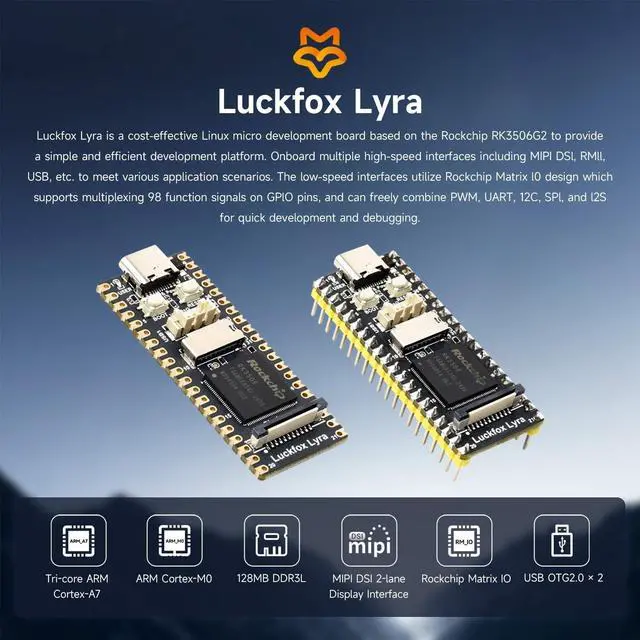

There are several options for this item, this option is with 256MB flash and without header. Please click the image 2 to check the package content. ^^ Luckfox Lyra is a cost-effective Linux micro development board based on the Rockchip RK3506G2 to provide a simple and efficient development platform. Onboard multiple high-speed interfaces including MIPI DSl, RMll, USB, etc. to meet various application scenarios. ^^ The low-speed interfaces utilize Rockchip Matrix l0 design which supports multiplexing 98 function siqnals on GPlO pins, and can freely combine PWM, UART, 12C, SPl, and l2S for quick development and debugging.

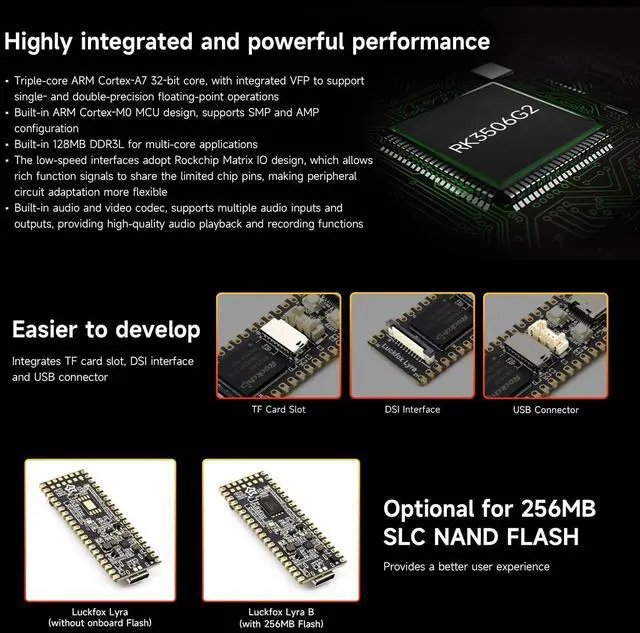

^^ Tripe-core ARM Cortex-A7 32-bit core, with integrated VFP to support single- and double-precision floating-point operations. Built-in ARM Cortex-M0 MCU design, supports SMP and AMP configuration. Built-in 128MB DDRL3 for multi-core applications ^^ The low-speed interfaces adopt Rockchip Matrix IO design, which allows rich function signals to share the limited chip pins, making peripheral circuit adaptation more flexible. Built-in audio and video codec, supports multiple audio inputs and outputs, providing high-quality audio playback and recording functions ^^
Rich WiKi Resources: We provide official Wiki resources, please contact us for more information.
