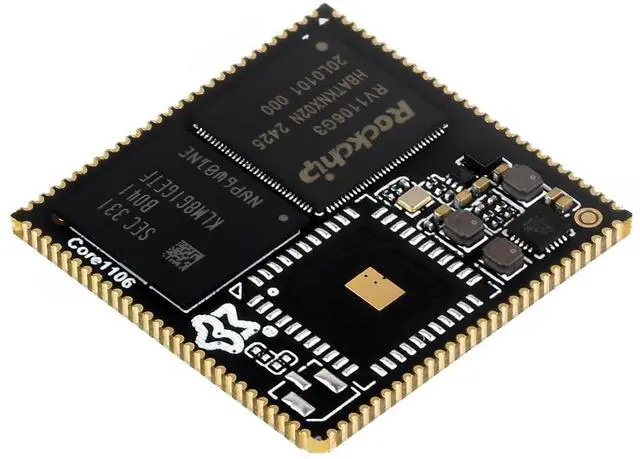

Waveshare Luckfox Core1106 Core Board Based On Rockchip RV1106 Chip, 8GB eMMC, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, 256MB Memory, Without Wireless

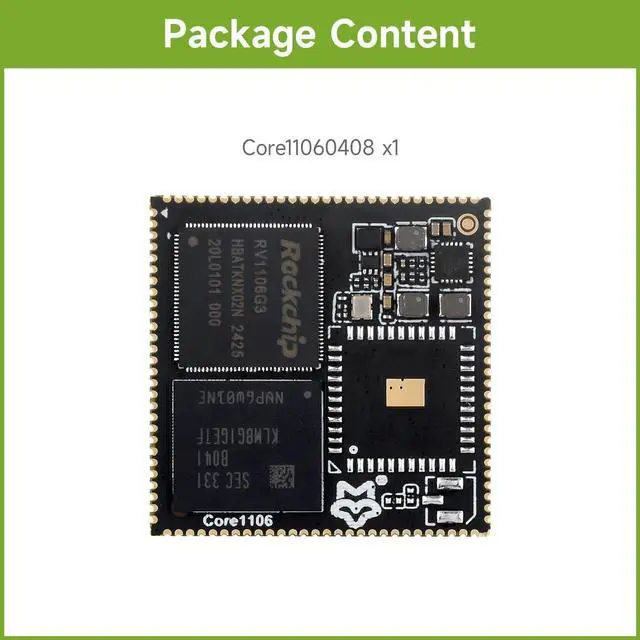

There are several options for this item, this option is 256MB memory and without wireless. For more details, please check the 'package content' image. ^^ The Core1106 is a core board based on the Rockchip RV1106 series chips, featuring high performance and high expandability, provides a convenient platform for developers to design their own hardware, enabling quick design verification or direct integration into products, thereby shortening the R&D cycle. ^^ Adapting various interfaces via castellated holes, such as MIPI CSI, RGB LCD, GPIO, UART, SPI, I2C, USB, Ethernet port, and SDIO, etc.

which is suitable for a variety of application scenarios. Optional for wireless module, with two core options of RV1106G2 and RV1106G3 to meet different needs. ^^ Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU. Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The int8 computing power of RV1106G3 is 1TOPS, and RV1106G2 is 0.5TOPS ^^ Built-in self-developed third-generation ISP 3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.

^^ Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, which can save more than 50% bit rate of the conventional CBR mode, enabling high-definition video quality while efficiently utilizing storage space. Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths ^^
Rich WiKi Resources: We provide official Wiki resources, please contact us for more information.
