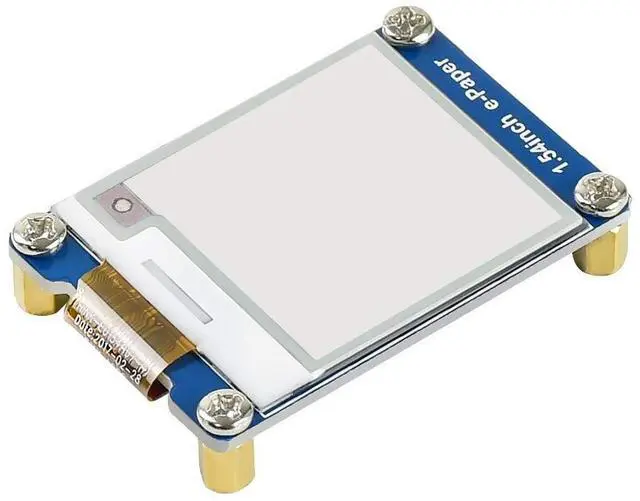

waveshare 1.54inch E-Ink Display Module Compatible with Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH, 200x200 Resolution Three-Color SPI Interface

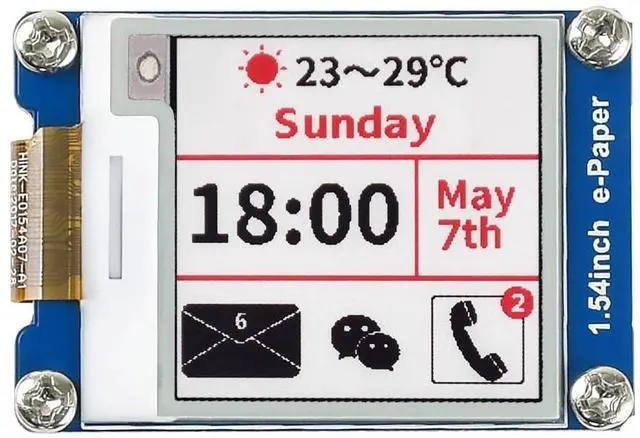

Overview This is an E-Ink display module, 1.54 inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Features No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing SPI interface, for connecting with controller boards like Raspberry Pi/Nucleo, etc.

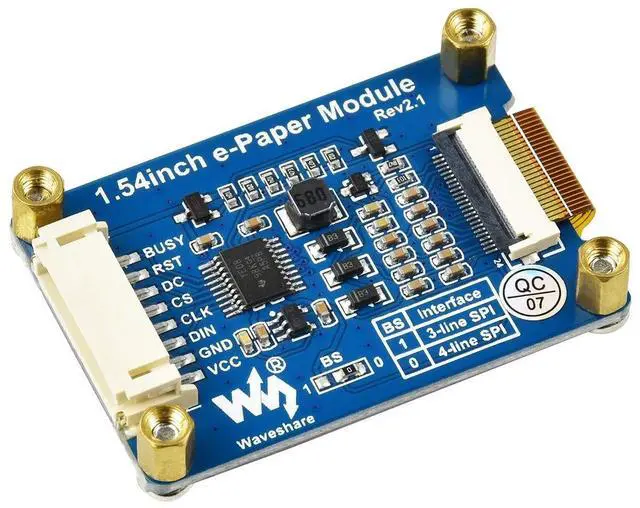

Onboard voltage translator, compatible with 3.3V /5V MCUs. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/STM32).

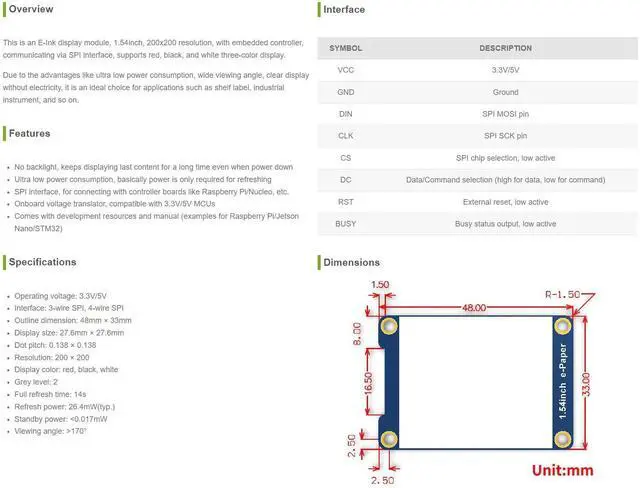

Specifications

: Operating
voltage: 3.3 V/5 V.
Interface: 3-wire SPI, 4-wire
SPI Outline dimension: 48 mm 33 mm
Display size: 27.6 mm 27.6 mm.
Dot pitch: 0.138 0.138
Resolution: 200 200
Display colour: red, black, white
Grey level: 2
Full refresh time: 14 seconds.
Refresh power: 26.4 mW (typ. )
Standby power: <0.017mW. Viewing angle: > 170.

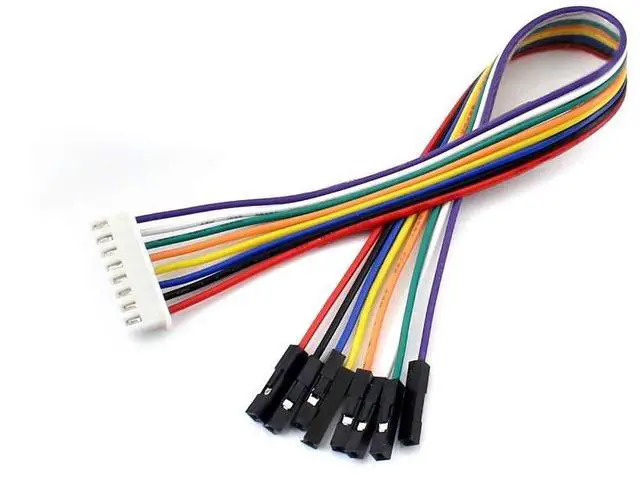

Development ResourcesWiki: www. waveshare. com/wiki/ 1.54 inch_e-Paper_Module_ (B)? PACKAGE CONTENT 1.54 inch e-paper module (B) x1PH 2.0 20 cm 8 Pin x1
