Waveshare ESP32-C6 1.47inch LCD Display Development Board, 160MHz RISC-V Processor, Wi-Fi 6, Bluetooth 5, 4MB Flash, 1.47inch 262K Color Display, RGB LED, TF Card Slot, USB Port

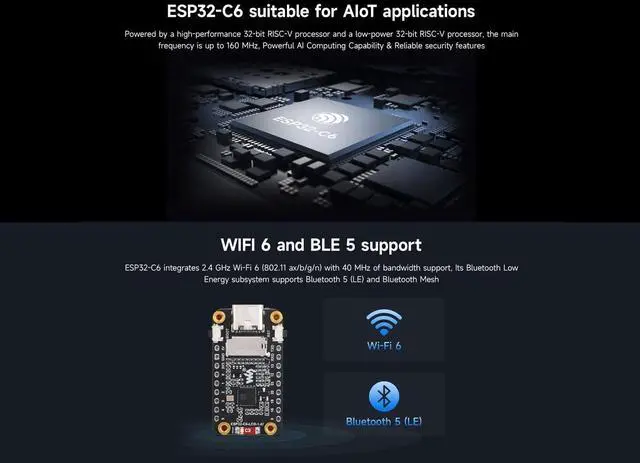

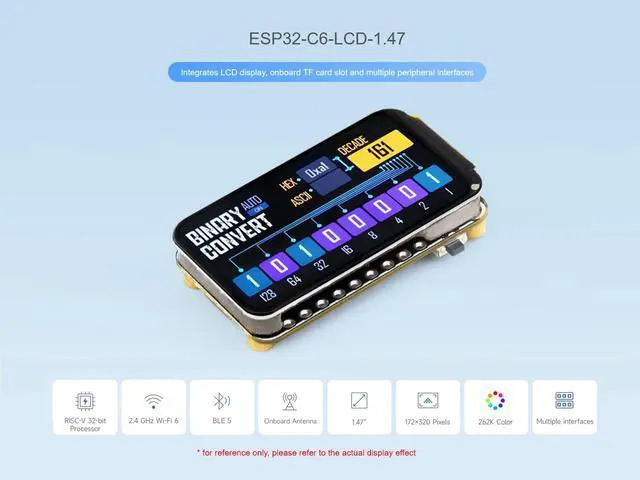

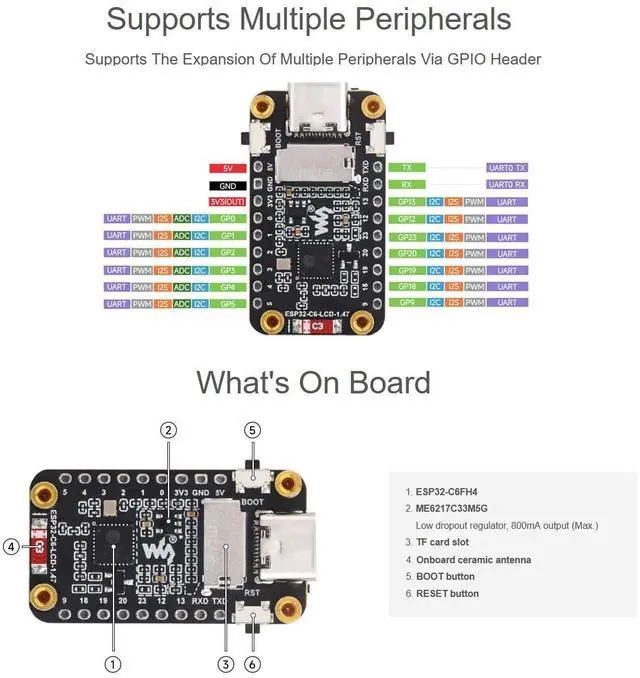

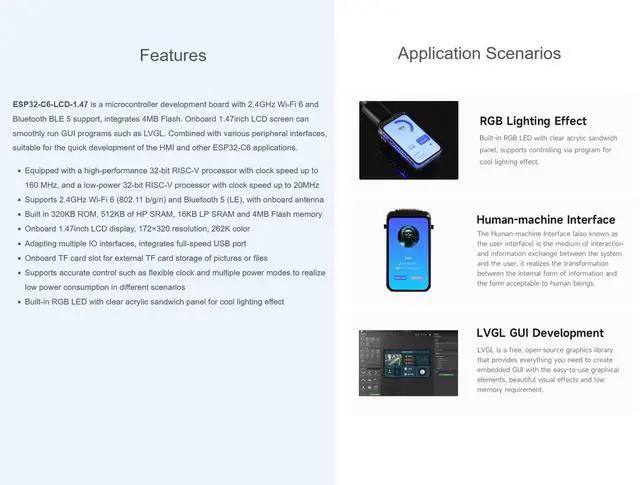

OverviewESP32-C6-LCD- 1.47 is a microcontroller development board with 2.4GH z Wi-Fi 6 and Bluetooth BLE 5 support, integrates 4MB Flash. Onboard 1.47 inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-C6 applicationsFeaturesEquipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHzSupports 2.4GH z Wi-Fi 6 ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antennaBuilt in 320KB ROM, 512KB of HP Static Random-Access Memory, 16KB LP Static Random-Access Memory and 4MB Flash memoryOnboard 1.47 inch LCD display, 172320 resolution, 262K colorAdapting multiple IO interfaces, integrates full-speed USB portOnboard TF card slot for external TF card storage of pictures or filesSupports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenariosBuilt-in RGB LED with clear acrylic sandwich panel for cool lighting effectPackage
ContentESP32-C6-LCD- 1.47 x1Black header 1NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
