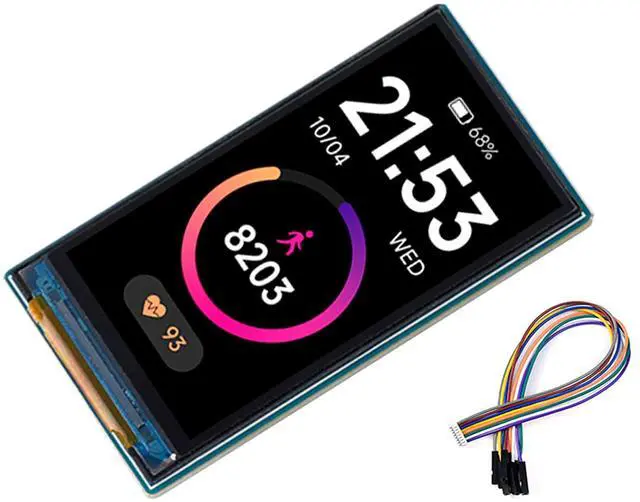

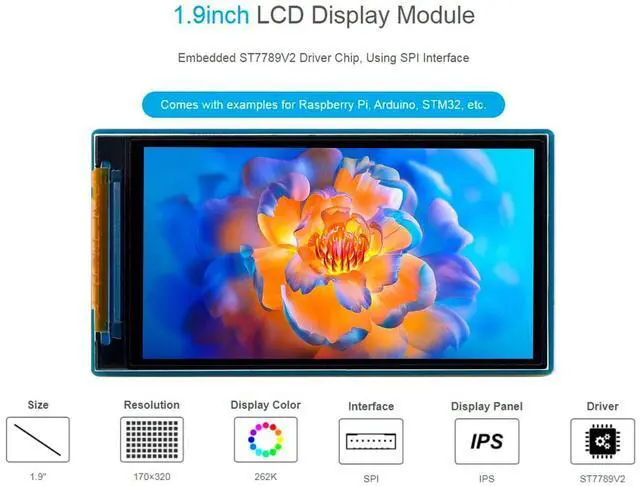

1.9inch LCD Display Module, 170x320 Resolution 262K Colorful IPS Screen Display, SPI Interface, Built-in ST7789V2 Chip, for Raspberry Pi 4B/3B+/3B/2B/Zero/Zero W/Zero 2W/WH,for Arduino, STM32, etc
- 1.9inch LCD Display Module,170320 resolution, 262K colors, clear and colorful displaying effect. The built-in driver of the 1.9-inch LCD Module is ST7789V2, which is the LCD controller with 240 x RGB x 320, and the resolution of the LCD is 170 (H) RGB 320 (V). Moreover, the internal RAM of the LCD is not fully used as it can be initialized as a portrait and horizontal screen.
- This LCD supports the input RGB format of 12 bits, 16 bits, and 18 bits, that is, RGB444, RGB565, and RGB666. The demo used here is RGB565, which is the RGB format we generally used. As the LCD adopts 4-wire SPI, it is not only faster in communication, but also saves more GPIO headers.

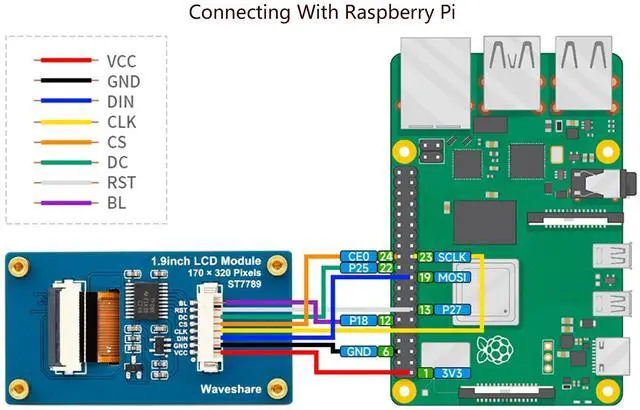

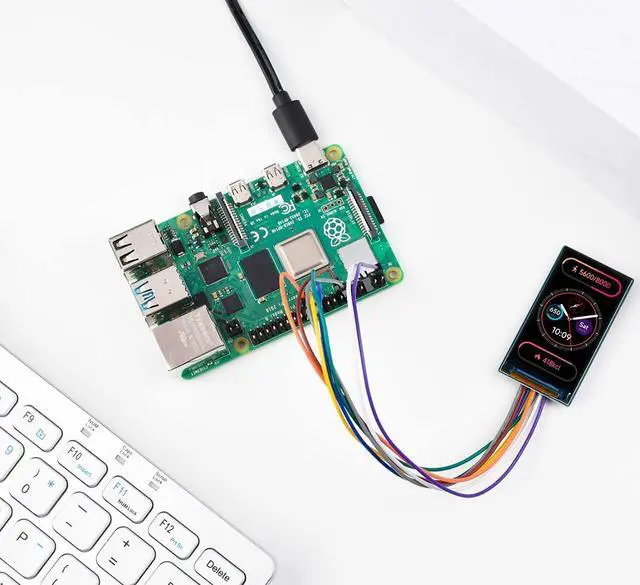

- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32

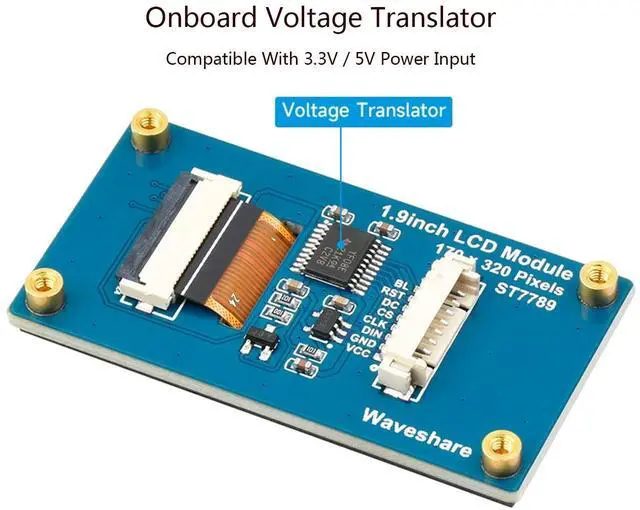

- Onboard Voltage Translator Compatible With 3.3V / 5V Power Input. Note: (Please ensure that the power supply voltage is consistent with the logic voltage, otherwise it will not work normally.)
- Comes with online developm
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1.9 inch LCD Display Module, 170320 Resolution, SPI Interface, IPS, 262K ColorsFeatures170320 resolution, 262K colors, clear and colorful displaying effectSPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)SpecificationsOPERATING VOLTAGE-- 3.3V / 5VNote: (Please ensure that the power supply voltage is consistent with the logic voltage, otherwise it will not work normally.
)Communication Interface: SPI DRIVER--ST7789V2DISPLAY PANEL--IPSRESOLUTION--170 320 pixelsCOMMUNICATION INTERFACE--4-wire SPIDISPLAY SIZE-- 22.70 42.72 mmPIXEL SIZE-- 0.1335 0.1335 mmMODULE SIZE-- 27.3 51.2 mmOnline
Tutorial/Online user manual: n9. cl/6e3z1PACKAGE CONTENT 1.9 inch LCD Module x1GH 1.25 20cm cable x1
)Communication Interface: SPI DRIVER--ST7789V2DISPLAY PANEL--IPSRESOLUTION--170 320 pixelsCOMMUNICATION INTERFACE--4-wire SPIDISPLAY SIZE-- 22.70 42.72 mmPIXEL SIZE-- 0.1335 0.1335 mmMODULE SIZE-- 27.3 51.2 mmOnline
Tutorial/Online user manual: n9. cl/6e3z1PACKAGE CONTENT 1.9 inch LCD Module x1GH 1.25 20cm cable x1
