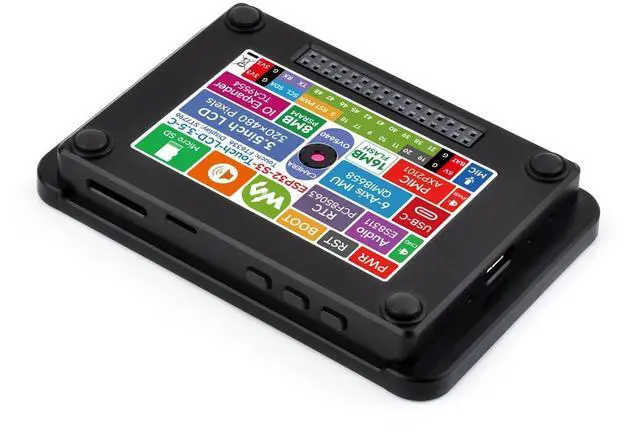

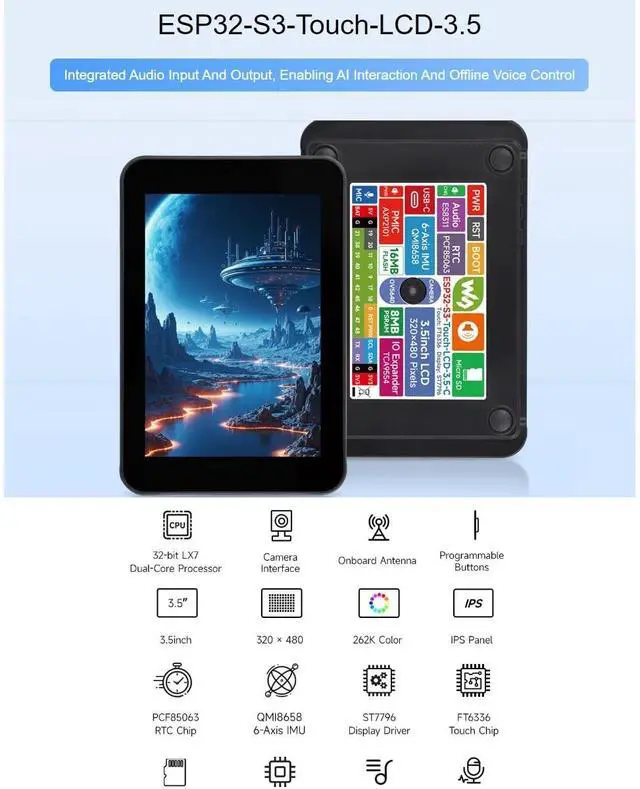

waveshare ESP32-S3 3.5inch Capacitive Touch Display Development Board with Case,320480 Pixels 262K Color IPS Display Panel Support Wi-Fi and BLE 5

Key features include: Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequencySupports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antennaBuilt in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memoryType-C connector, improving device compatibility, easier to useOnboard 3.5 inch capacitive touch display for clear color picture display, 320 480 resolution, 262K colorBuilt-in ST7796 display driver and FT6336 capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resourcesOnboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc. Onboard PCF85063 RTC chip, powered by main Lithium battery through AXP2101 chip, with reserved RTC battery header for connecting a backup battery, ensuring RTC function during the replacement of the main batteryOnboard PWR and BOOT programmable buttons for easy custom function developmentOnboard 3.7V MX 1.25 Lithium battery recharge/discharge headerAdapting I2C, UART, USB, and multiple GPIO pins, for connecting peripherals and debuggingOnboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit designOnboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, battery charging, battery management, and battery life optimization, etc.

Package ContentESP32-S3-Touch-LCD- 3.5 -CESP32-S3-Touch-LCD- 3.5 with case and OV5640 camera x1NoteDevelopment Resources is provided, please contact us if you have any problem.
