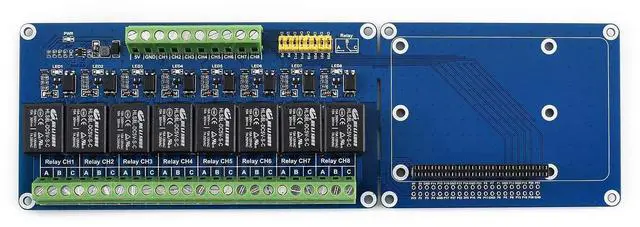

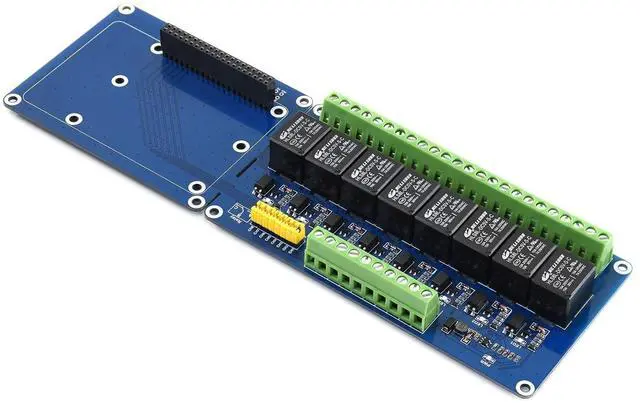

Waveshare 8-ch Relay Expansion Board for Raspberry Pi to Control High Voltage Products Such As Home Appliances
- This RPi Relay Board (B) with 8-ch relays in high quality can load up to 5A 250V AC or 5A 30V DC. Onboard standard Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano.
- 5V Power supply voltage, 3.3V/5V Trigger signal, SPDT-NO,NC Contact form, 6mA (per channel) Closed current, screw terminal block Connector.

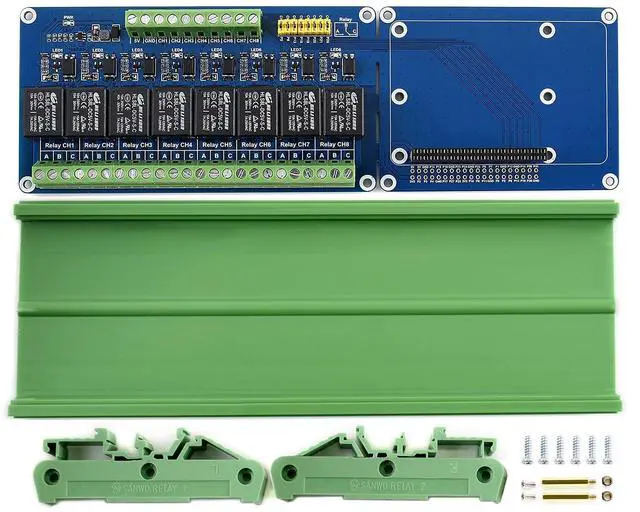

- With Standard rail mount bottom case and Onboard LEDs for indicating relays status. Photo coupling isolation, prevent interference from high voltage circuit.
- Relay control pin selection jumper, allows to control the relays by custom pins other than the default pins. Reserved control Interface, allows to work with controllers like PLC.
- Provide online development resources, including examples in wiringPi, bcm2835, python, python-bottle (webpage control), and crontab (cron job).
+
+

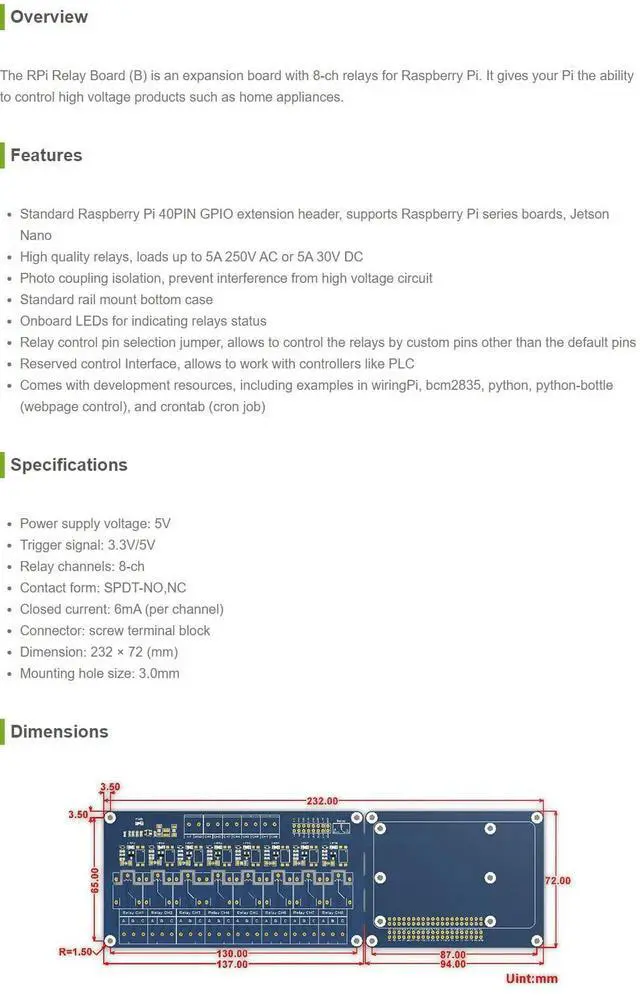

Overview
