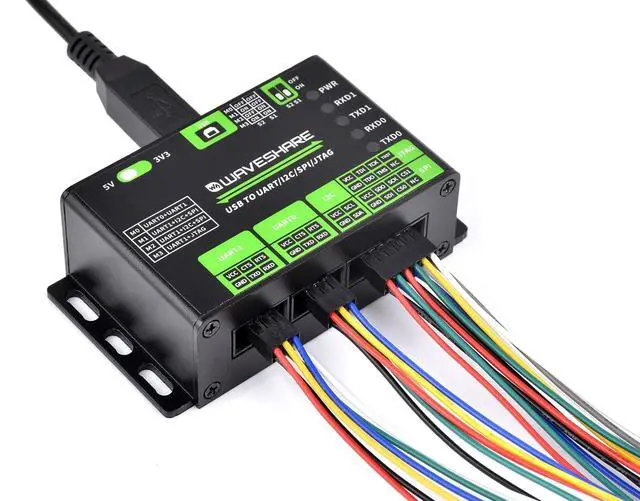

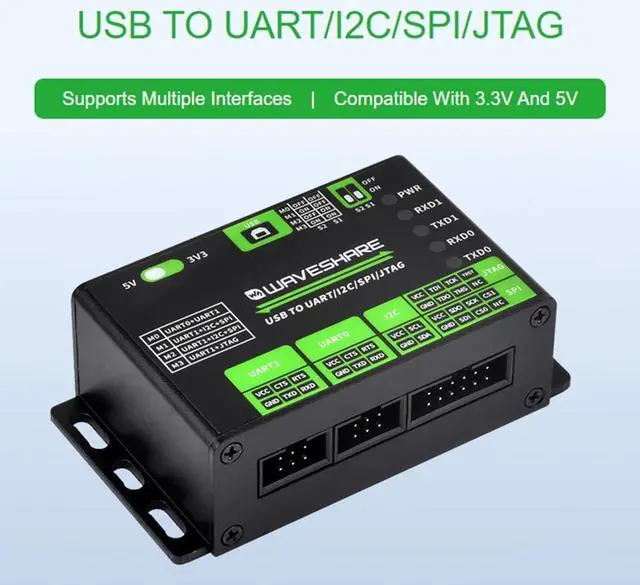

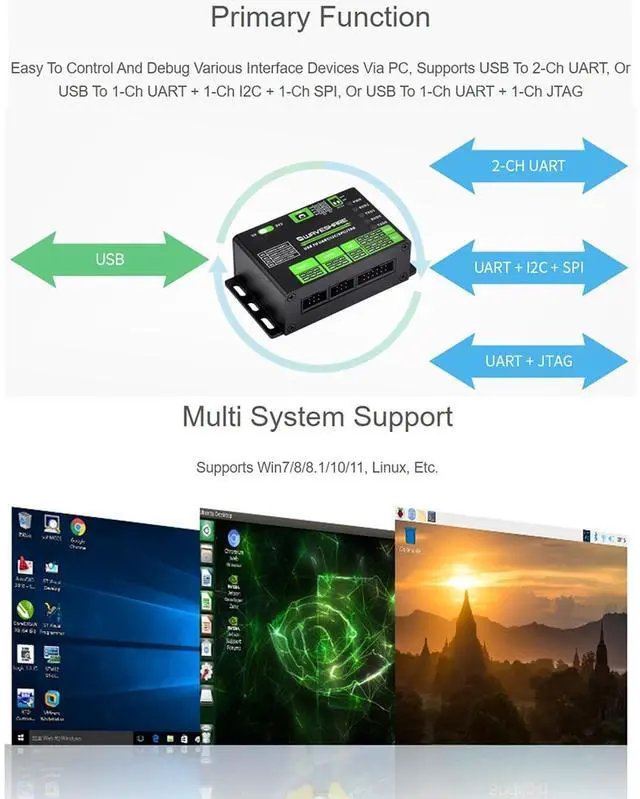

USB to UART/I2C/SPI/JTAG Converter, USB to 2-ch UART, or USB to 1-ch UART + 1-ch I2C + 1-ch SPI, or USB to 1-ch UART + 1-ch JTAG,Compatible with Win7/8/8.1/10/11, Linux, Androidetc.

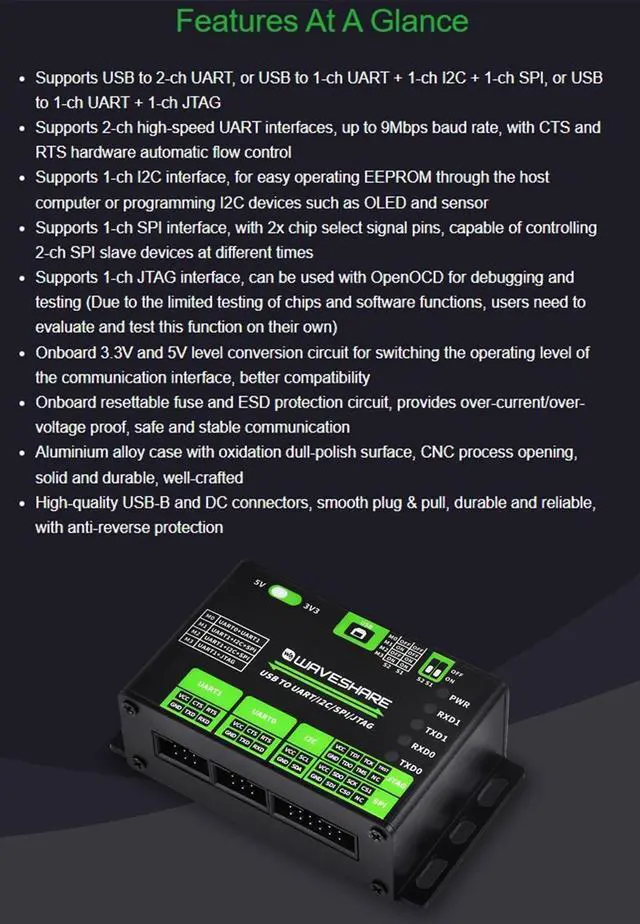

Features1. Supports USB to 2-ch UART, or USB to 1-ch UART + 1-ch I2C + 1-ch SPI, or USB to 1-ch UART + 1-ch JTAG2. Supports 2-ch high-speed UART interfaces, up to 9Mbps baud rate, with CTS and RTS hardware automatic flow control3. Supports 1-ch I2C interface, for easy operating EEPROM through the host computer or programming I2C devices such as OLED and sensor4. Supports 1-ch SPI interface, with 2x chip select signal pins, capable of controlling 2-ch SPI slave devices at different times5. Supports 1-ch JTAG interface, can be used with OpenOCD for debugging and testing (Due to the limited testing of chips and software functions, users need to evaluate and test this function on their own)6.

Onboard 3.3V and 5V level conversion circuit for switching the operating level of the communication interface, better compatibility7. Onboard resettable fuse and ESD protection circuit, provides over-current/over-voltage proof, safe
and stable communicationSpecificationsHost interface: USB
Power Supply: USB port, 5VOperating
level: 3.3V /5V (select via onboard switch) 1)
USB
Connector: USB-BInterface
protection: Resettable fuse, ESD protection2) UART
Channel: 2 (the red DIP switch needs to be set to M0 mode)
Connector: 6PIN
IDC connectorBaud rate: 1200bps9
MbpsHardware flow control: CTS and
RTS3) I2CChannel: 1 (the red DIP switch needs to be set to
M1/M2 mode)Connector: 12PIN IDC connector (the first 4 pins are I2C) 4) SPI
Channel: 1 (the red DIP switch needs to be set to
M1/M2 mode)Connector: 12PIN IDC connector (the last 8 pins are SPI) 5) JTAG
Channel: 1 (the red DIP switch needs to be set to M3 mode)
Connector: 12PIN IDC connector (the last 8 pins are JTAG) Package ContentUSB TO UART/I2C/SPI/JTAG x1USB type A to type B cable ~ 1.2 m x112PIN cable ~20cm x16PIN cable ~20cm (2PCS) x1
