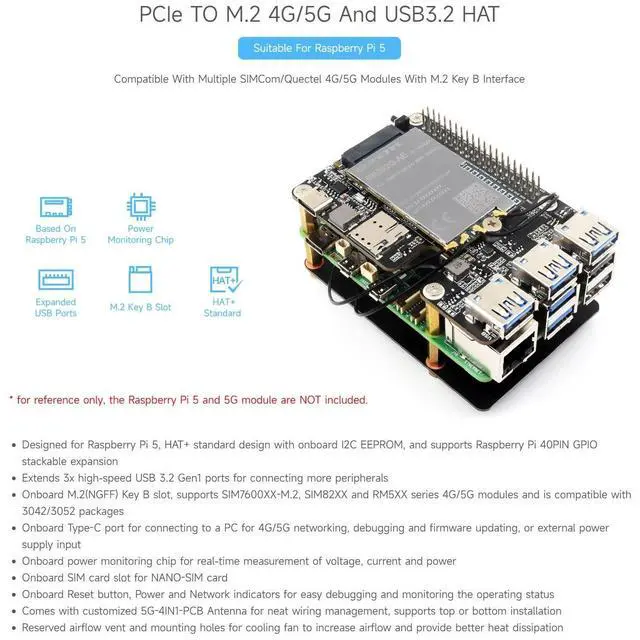

Waveshare PCIe to M.2 4G/5G and USB 3.2 HAT, Compatible with Raspberry Pi 5 Cellular Modem and SIMCom/Quectel 4G/5G LTE Modules, Comes with 5G-4IN1-PCB Antenna, High-Speed Networking

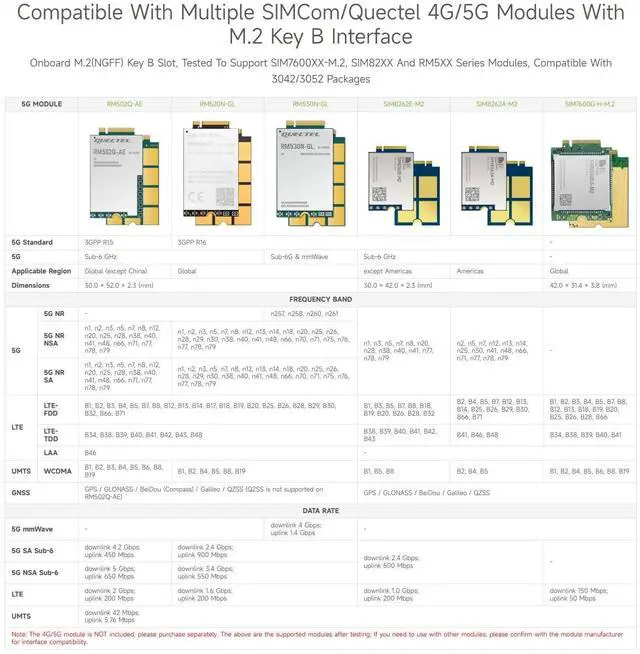

Designed for Raspberry Pi 5, HAT+ standard design with onboard I2C EEPROM, and supports Raspberry Pi 40PIN GPIO stackable expansion. Extends 3x high-speed USB 3.2 Gen1 ports for connecting more peripherals ^^ Onboard M. 2 (NGFF) Key B slot, supports SIM7600XX-M. 2, SIM82XX and RM5XX series 4G/5G modules and is compatible with 3042/3052 packages. Onboard Type-C port for connecting to a PC for 4G/5G networking, debugging and firmware updating, or external power supply input ^^ Onboard power monitoring chip for real-time measurement of voltage, current and power. Onboard SIM card slot for NANO-SIM card ^^ Onboard Reset button, Power and Network indicators for easy debugging and monitoring the operating status.

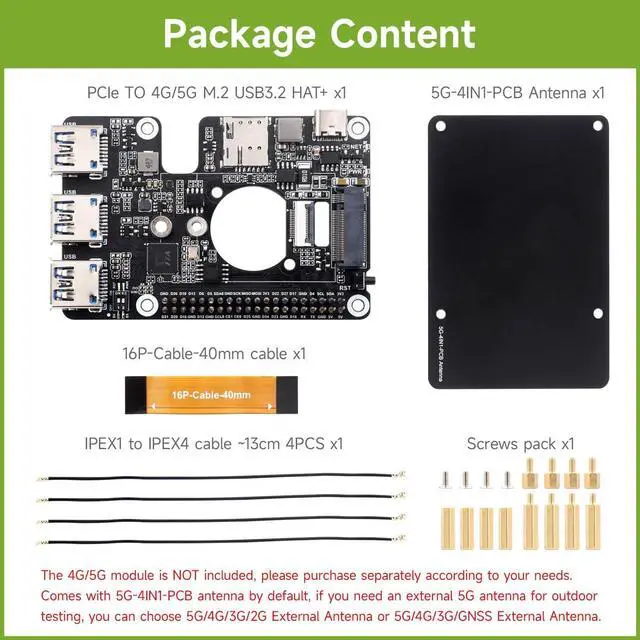

Comes with customized 5G-4IN1-PCB Antenna for neat wiring management, supports top or bottom installation ^^ Reserved airflow vent and mounting holes for cooling fan to increase airflow and provide better heat dissipation
