Wireless-AC8265 Dual Mode AC8265 Wireless NIC Module for Jetson Nano Developer Kit M.2 NGFF Support 2.4GHz / 5GHz 300Mbps / 867Mbps Dual Band WiFi and Bluetooth 4.2

AC8265 Wireless NIC, 2.4G / 5G WiFi, Bluetooth 4.2, Applicable for Jetson NanoOverviewThis is a dual mode wireless NIC module applicable for Jetson Nano, supports 2.4GH z / 5GHz dual band WiFi and Bluetooth 4.2.

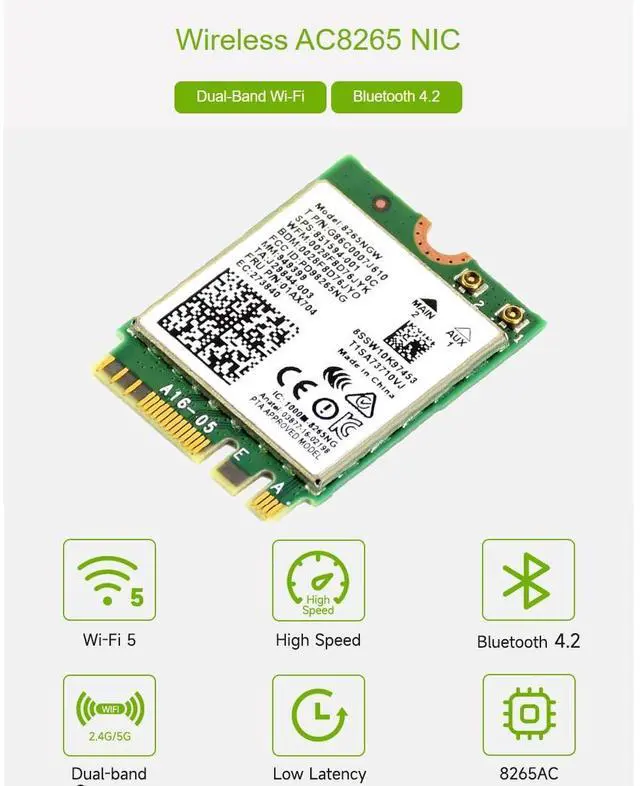

Features Chip: Intel 8265AC
Bands: 2.4GH z / 5GHz
Speed: 300Mbps / 867Mbps
WiFi protocol: 802.11 ac

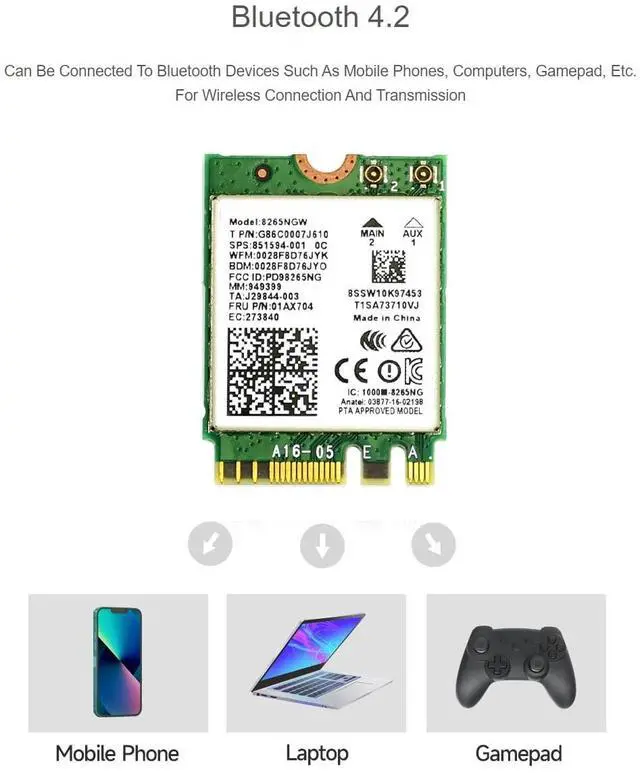

Bluetooth version: 4.2

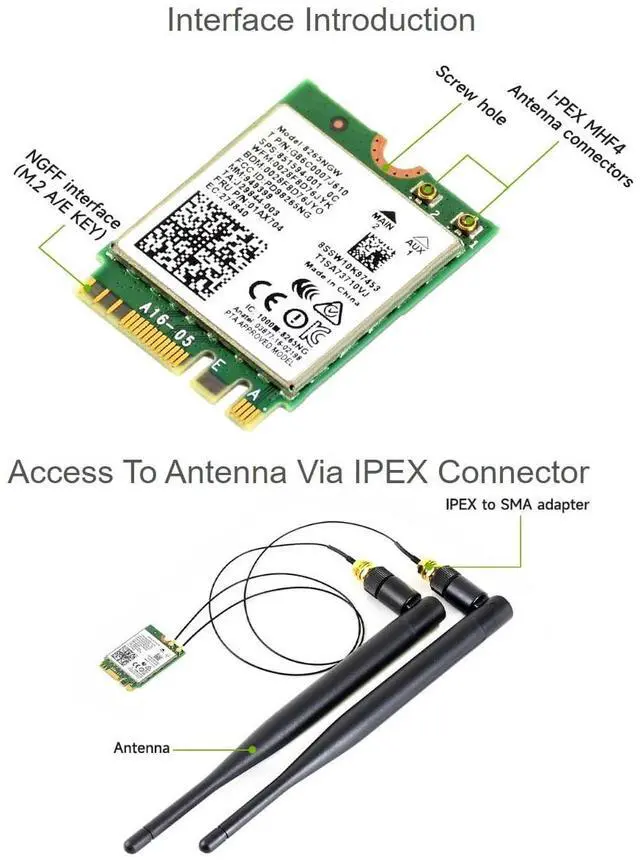

NIC interface: NGFF (M.
2) Antenna interface: IPEX connector
Supported OS: Linux, Windows 10/ 8.1 /8/7

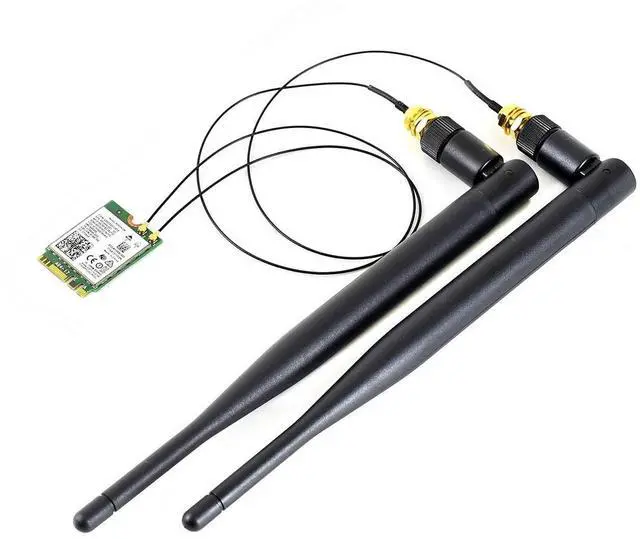

Dimensions: 22mm 30mm 2.4 mmHow to Use1. Remove the two screws on Jetson Nano, detach the Jetson Nano2. Connect the extension cable to Wireless-AC8265 on IPEX connector, tighten the nut and washer to each SMA connector3. Remove the NIC screw onboard, insert the Wireless-AC8265 into the M. 2 socket, screw it tightly4. Insert the Jetson Nano into the socket and screw it again, connect the antennasPlease check the detailed demonstration in the pictures. Package Content Wireless-AC8265 x1 Antenna x2 IPEX to SMA cable x2
