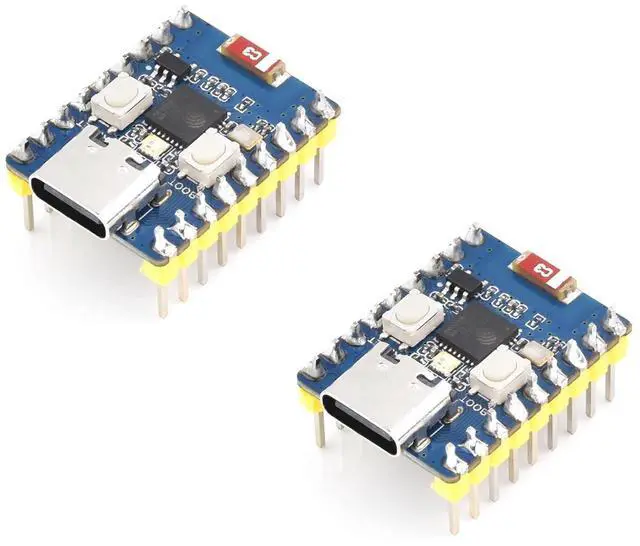

waveshare 2 PCS ESP32-C3 Mini Development Board with Pre-Soldered Header with 2.4GHz Wi-Fi,Bluetooth 5 Support,Based on ESP32-C3FN4 Single-core Processor,160MHz Running Frequency, USB Type-C Port
- Low-power SoC equipped with RISC-V 32-bit single-core processor, up to 160MHz main frequency,Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
- 400KB of SRAM and 384KB ROM, and 4MB of onboard Flash memory.Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
- Integrated with USB serial port full-speed controller, 15 GPIO pins allows flexibly configuring pin functions
- 3 SPI, 1 I2C, 2 UART, 1 I2S, 2 ADC, etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

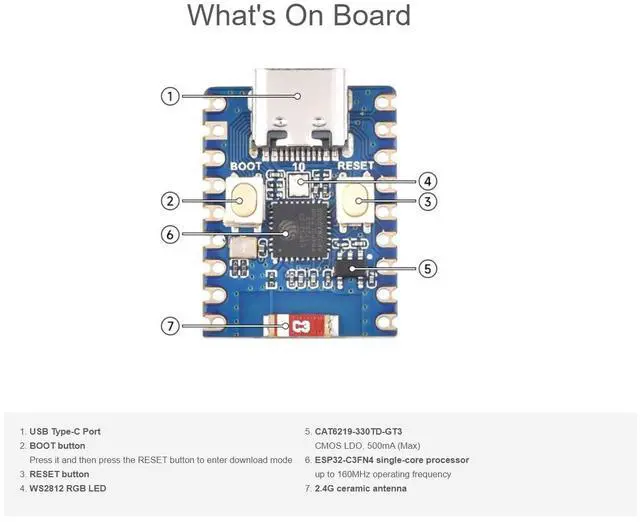

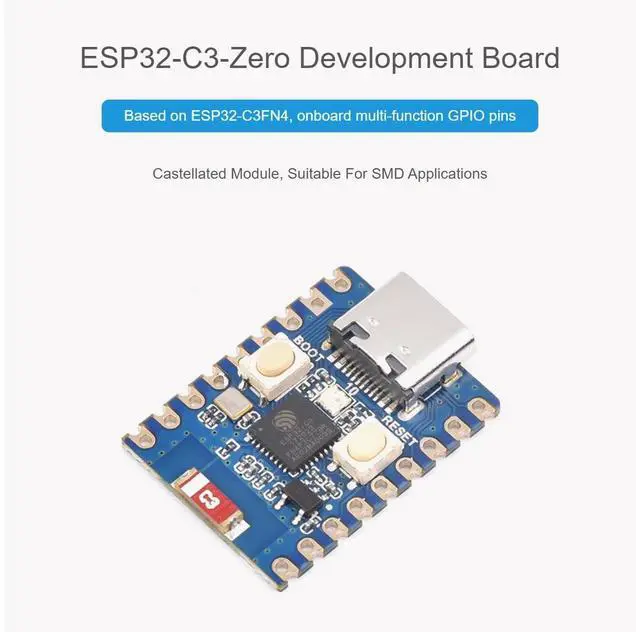

2 PCS ESP32-C3 Mini Development Board with pre-soldered header, Based On ESP32-C3FN4 Single-Core Processor, 160MHz Running Frequency, 2.4GH z Wi-Fi & Bluetooth 5 Features 1. ESP32-C3-Zero-M Development Board Based on ESP32-C3FN4, onboard multi-function GPIO pins Castellated Module, Suitable For SMD Applications 2. Support C/C++, MicroPython Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started What's On Board 1. USB Type-C Port 2. BOOT button Press it and then press the RESET button to enter download mode 3. RESET button 4. WS2812 RGB LED 5.
CAT6219-330TD-GT3 CMOS LDO, 500mA (Max) 6. ESP32-C3FN4 single-core processor up to 160MHz operating frequency 7. 2.4G ceramic antenna Package Content ESP32-C3-Zero with pre-soldered header x2
CAT6219-330TD-GT3 CMOS LDO, 500mA (Max) 6. ESP32-C3FN4 single-core processor up to 160MHz operating frequency 7. 2.4G ceramic antenna Package Content ESP32-C3-Zero with pre-soldered header x2
