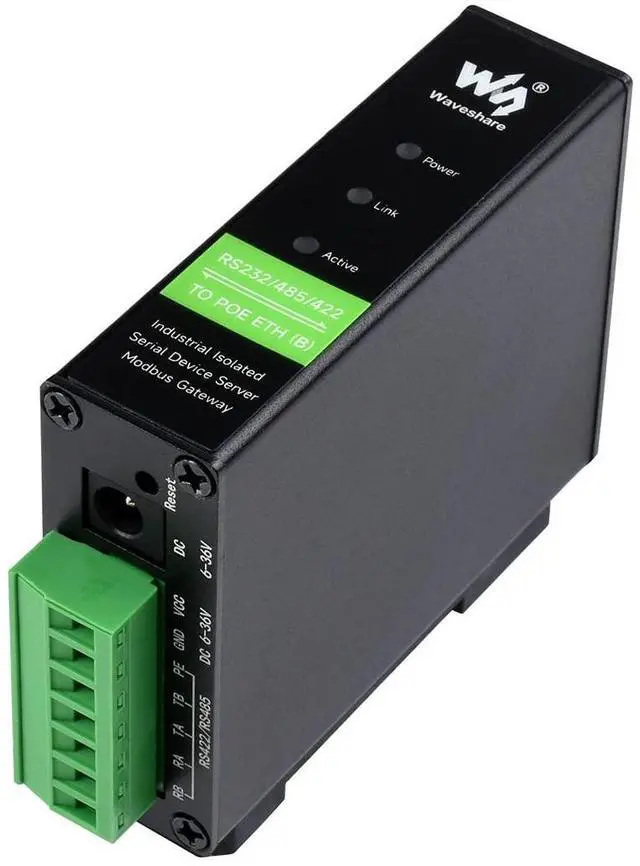

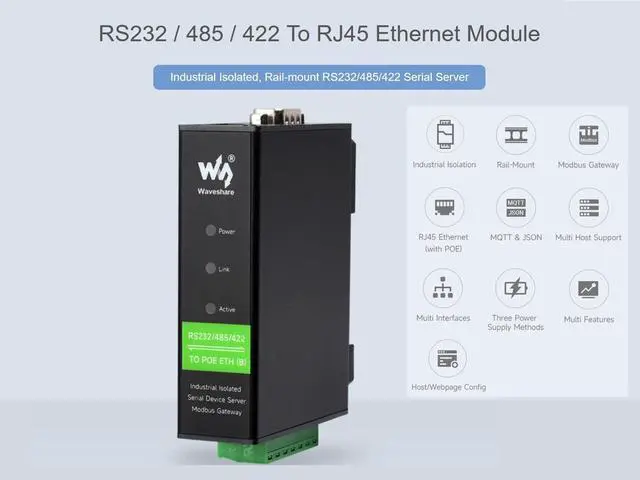

waveshare RS232/485/422 to RJ45 Ethernet Converter, TCP/IP to Serial, Modbus Gateway Support, Industrial Isolated Rail-Mount RS232/485/422 Serial Server with POE Function, Multi Communication Modes

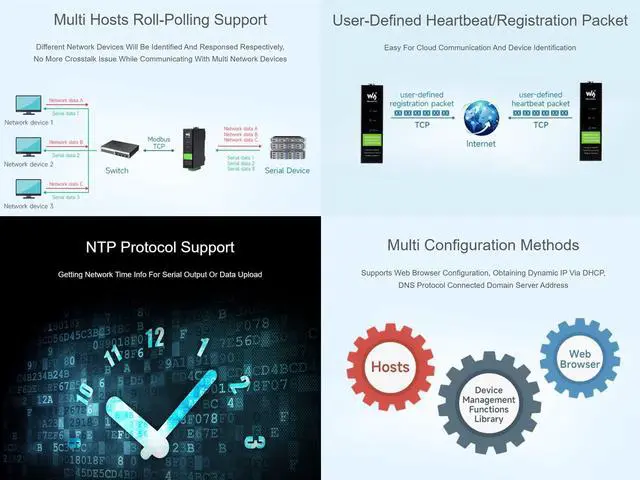

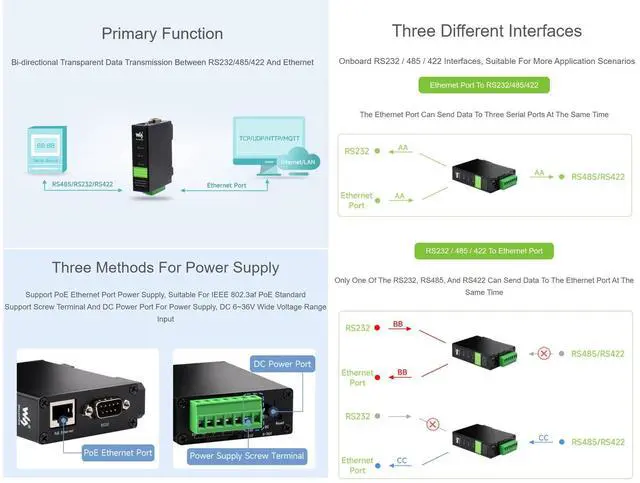

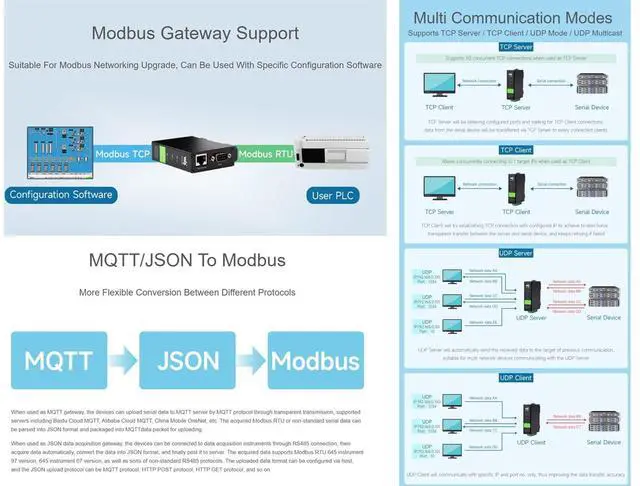

OverviewRail-Mount Serial Server, RS232/485/422 to RJ45 Ethernet Module, TCP/IP to serial, With POE FunctionSpecificationsProduct type---- Serial server, Modbus Gateway, MQTT GatewayPrimary function---- Bi-directional transparent data transmission between RS232/485/422 and EthernetCommunication interface---- RS232 port 1; RS485 port 1; RS422 port 1; Ethernet port 1Power supply---- DC power port, 6 ~ 36V DC screw terminal, or PoE portIsolation protection---- Power isolation, Signal isolationCommunication interfaceEthernet---- PoE network port, support IEEE 802.3 af standard, 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protectionSerial port---- Isolated RS232/485/422Serial parametersBaud rate---- 300 ~ 115200 bpsParity bit---- none, odd, even, mark, spaceData bits---- 5 ~ 9 bitsFlow Control---- no flow controlSoftwareProtocol---- ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNSConfiguration method---- host, web browser, device management functions libraryCommunication method---- TCP/IP direct communication, VCOMOperating mode---- TCP server, TCP client (coexisting with TCP server), UDP, UDP multicastOtherOperating temperature---- -40 ~ 85Humidity range----5% ~ 95% relative humidityDimensions----
L W H: 88.7 64.5 24.2 mmPackage Content1. RS232/485/422 TO POE ETH (B) x1NOTE: Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
