waveshare ESP32-C6 1.47inch Display Development Board 172320 Resolution 262K Color LCD, 32-bit RISC-V Processor,Supports Wi-Fi 6(802.11 b/g/n) and Bluetooth 5 (LE)

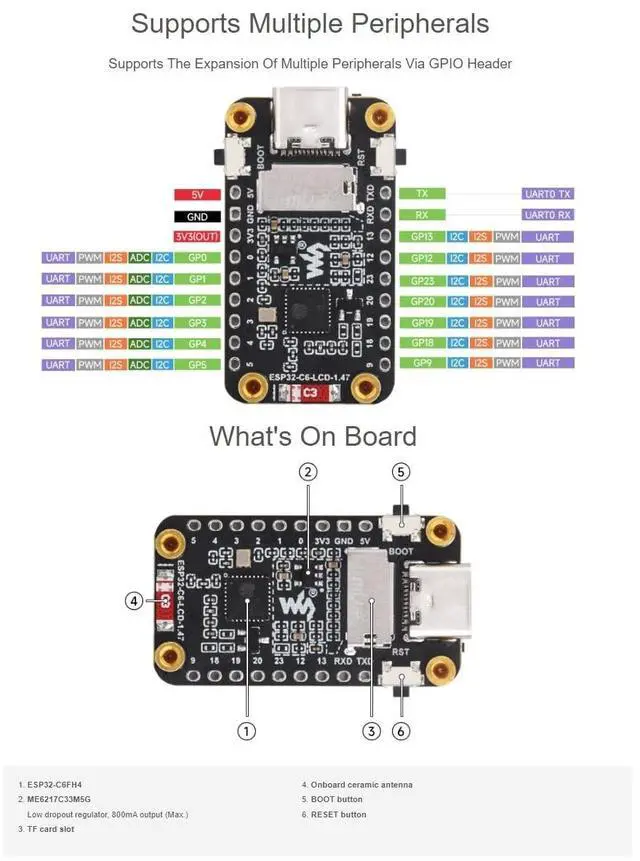

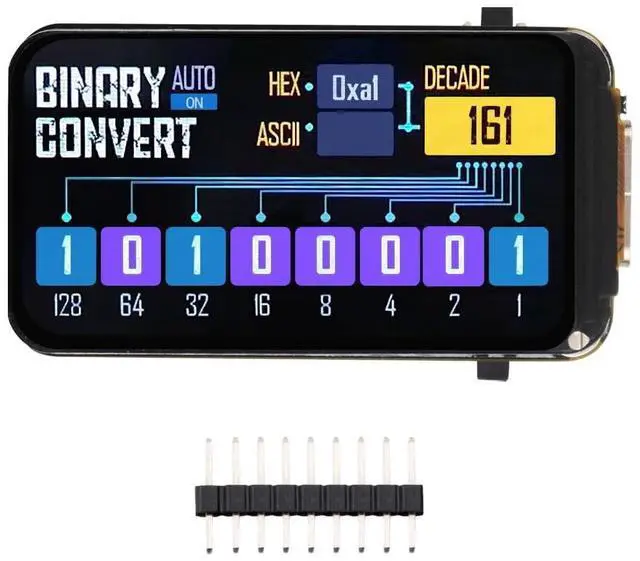

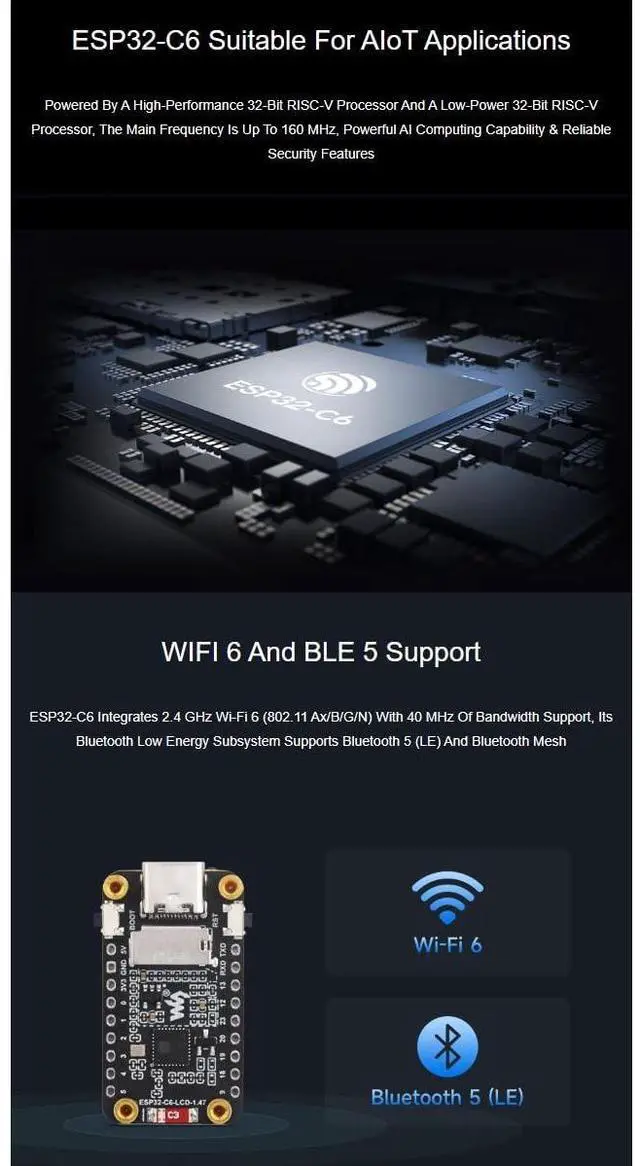

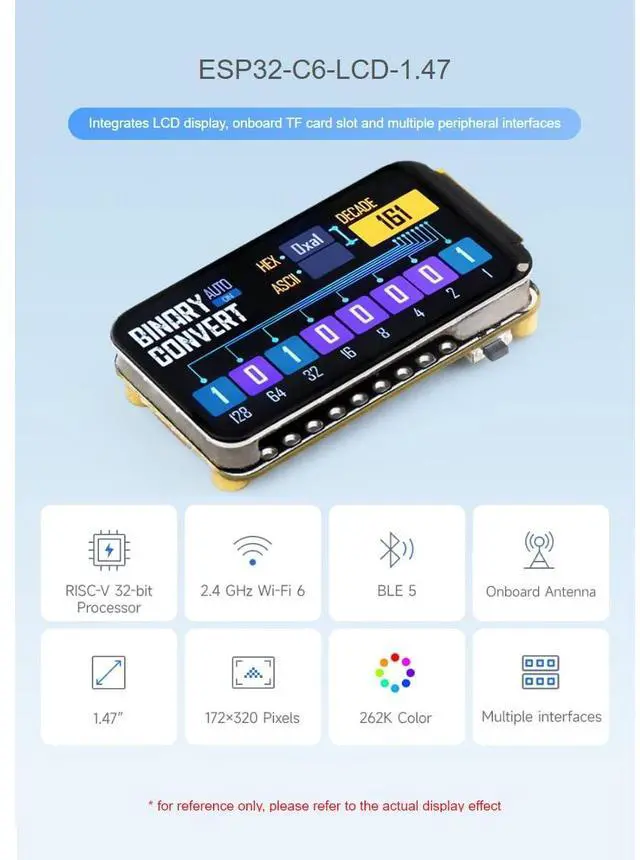

ESP32-C6 1.47 inch Display Development Board, 172320, 262K Color, 160MHz Running Frequency Single-Core Processor, Supports WiFi 6 & Bluetooth, With Colorful RGB LED, ESP32 With DisplayFeaturesESP32-C6-LCD- 1.47 is a microcontroller development board with 2.4GH z Wi-Fi 6 and Bluetooth BLE 5 support, integrates 4MB Flash. Onboard 1.47 inch LCDscreen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMIand other ESP32-C6 applications. Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHzSupports 2.4GH z Wi-Fi 6 ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antennaBuilt in 320KB ROM, 512KB of HP SRAM, 16KB LP SRAM and 4MB Flash memoryOnboard 1.47 inch LCD display, 172320 resolution, 262K colorAdapting multiple IO interfaces, integrates full-speed USB portOnboard TF card slot for external TF card storage of pictures or filesSupports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenariosBuilt-in RGB LED with clear acrylic sandwich panel for cool lighting effectParameter Name---ParameterInterface---USB Type-CMaster chip---ESP32-C6Display type---TFTDisplay control chip---DisplayST7789Onboard device---Micro SDPackage ContentESP32-C6-LCD- 1.47 x1Black header 1FAQIf you redownloaded the module program after you had downloaded it before, sometimes the serial port cannot be connected or the burning failed? You can long press BOOT button and press RESET at the same time, then release RESET, and then release BOOT button.

At this time, the module will enterdownload mode, which can solve most of the problems related to inability to download.
