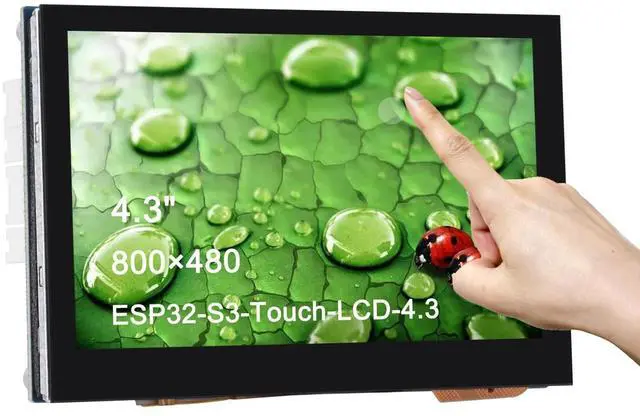

waveshare 4.3inch Capacitive Touch Display Based on ESP32-S3 Microcontroller Development Board with 2.4GHz WiFi and BLE 5 Support, 800480 Resolution, 5-Point Touch, Onboard CAN, RS485, I2C Interface

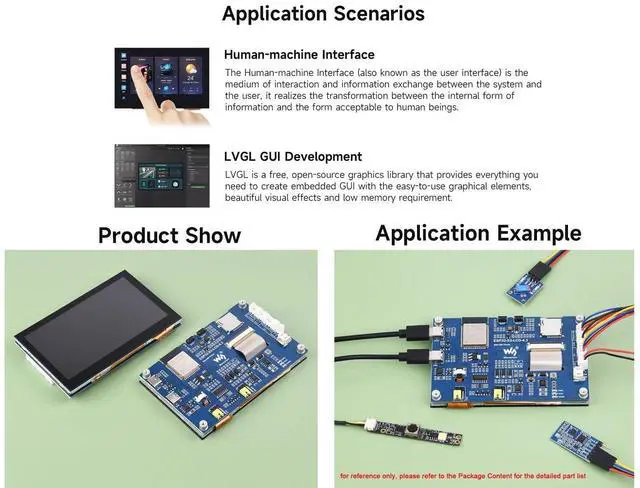

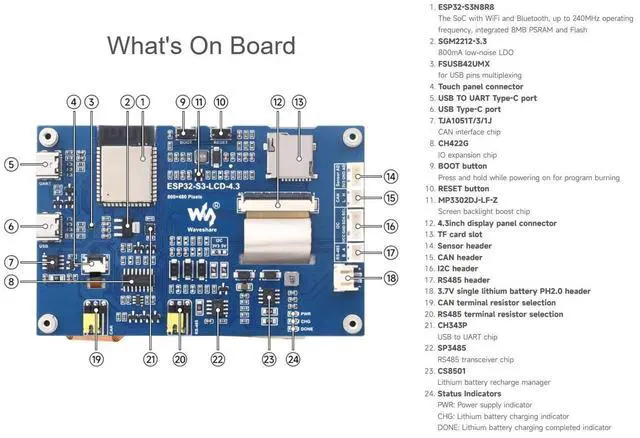

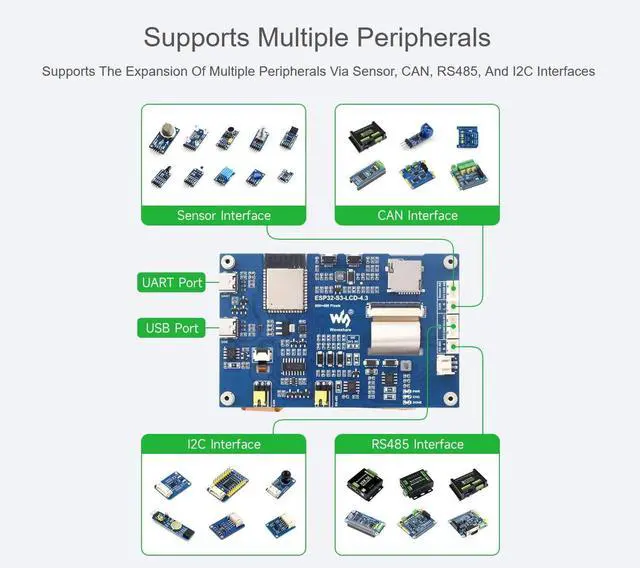

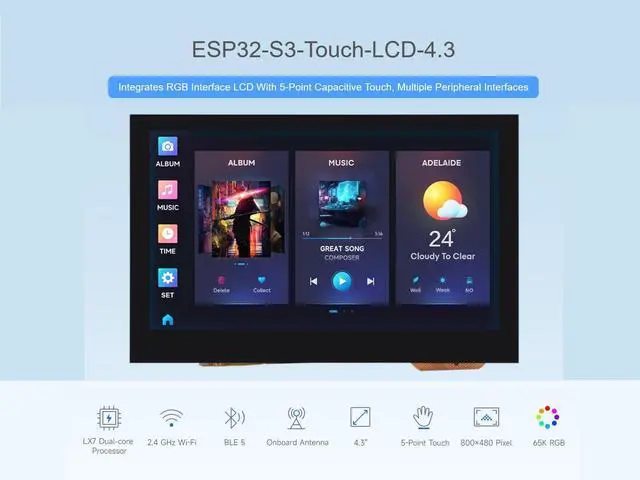

OverviewESP32-S3-Touch-LCD- 4.3 is a microcontroller development board with 2.4GH z WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 4.3 inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applicationsFeatures-- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency-- Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna-- Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash-- Onboard 4.3 inch capacitive touch display, 800480 resolution, 65K color-- Supports capacitive touch control via I2C interface, 5-point touch with interrupt support-- Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port-- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenariosPackage ContentESP32-S3-Touch-LCD- 4.3 x1HY 2.0 2P to 2PIN male cable 10cm 2HY 2.0 2P to 3PIN male cable 10cm 1HY 2.0 2P to 4PIN male cable 10cm 1Standoff pack 1NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
