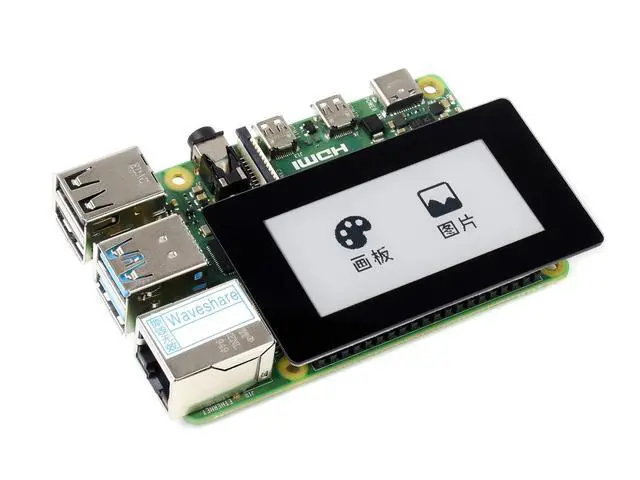

waveshare 2.13inch Touch e-Paper Display for Raspberry Pi Zero 2 W/Raspberry Pi Zero/Pi Zero W/Pi Zero WH, 250x122 Pixels E-Ink Screen, Paper-Like Effect Support Partial Refresh
- 2.13" capacitive touch e-Paper display, 5-point touch, 250122 pixels.Display color: black, white. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero / Zero W. Supports waken up by user-defined gesture.
- No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing. Heat dissipation holes on the back,combined with thermal tape, effective heat dissipation.

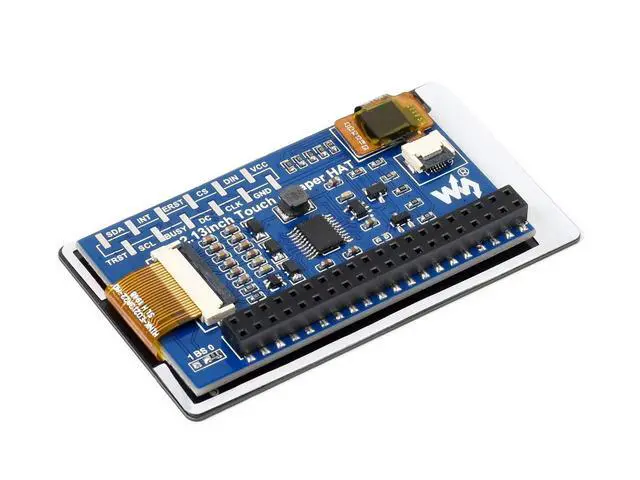

- Outline dimensions(Module): 69.15 38.90mm. Outline dimensions(Driver Board): 59.51mm 34.00mm. Display area: 48.55mm 23.71mm. Operating Voltage: 3.3V (V1.1 support 5V). Communication interface: SPI. Dot pitch: 0.194 0.194mm.
- Greyscale: 2. Partial refresh time: 0.3s. Full refresh time: 2s. Refresh power: 26.4mW(typ.). Touchpoints: 5 (MAX). Touch type: Capacitive touch. Touch interfaced: I2C. Touch panel: Toughened Glass .
- Comes with development resources and manual (examples for Raspberry Pi).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

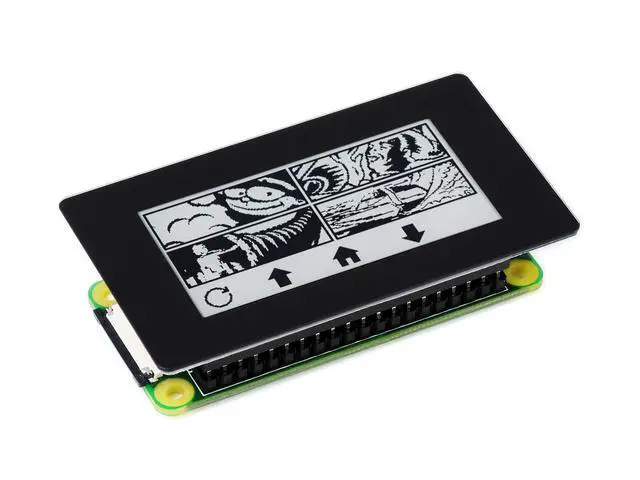

Overview 2.13" capacitive touch e-Paper display, 5-point touch, 250122 pixels.

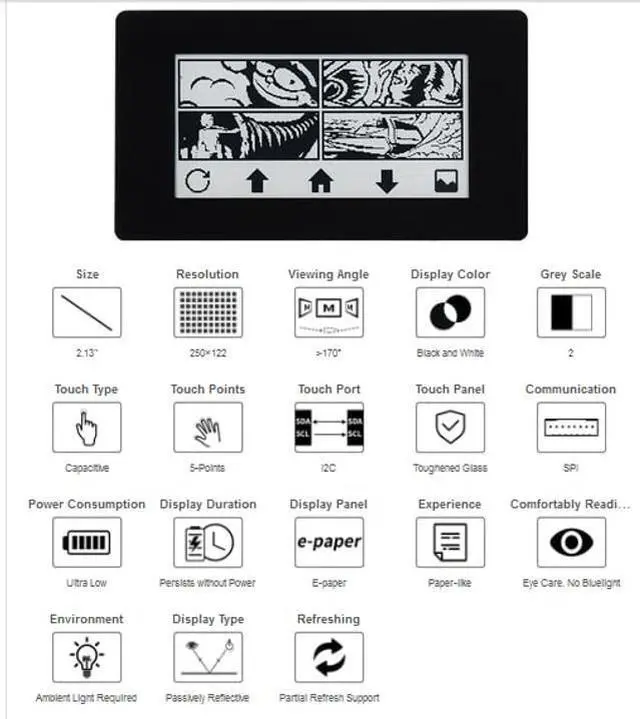

Display color: black, whiteStandard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero / Zero W. Supports waken up by user-defined gesture. No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing. Heat dissipation holes on the back, combined with thermal tape, effective heat dissipation. Specificationsoperating voltage-- 3.3V grey scale --2interface--3-wire SPI, 4-wire SPIpartial refresh time-- 0.3 sfull refresh time --2sdisplay size -- 48.55 23.70 mmrefresh power -- 26.4 mW(typ. )resolution --250122 pixelsviewing angle 170display color --black, whiteTouch point --5 (max) outline dimensions-- 69.15 38.90 mmdot pitch -- 0.194 0.194 mmstandby current --< 0.01 uA (almost none)
Online Tutorial/Online Document: n9. cl/wq54wPackage Content 2.13 inch Touch e-Paper HAT x1
Display color: black, whiteStandard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero / Zero W. Supports waken up by user-defined gesture. No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing. Heat dissipation holes on the back, combined with thermal tape, effective heat dissipation. Specificationsoperating voltage-- 3.3V grey scale --2interface--3-wire SPI, 4-wire SPIpartial refresh time-- 0.3 sfull refresh time --2sdisplay size -- 48.55 23.70 mmrefresh power -- 26.4 mW(typ. )resolution --250122 pixelsviewing angle 170display color --black, whiteTouch point --5 (max) outline dimensions-- 69.15 38.90 mmdot pitch -- 0.194 0.194 mmstandby current --< 0.01 uA (almost none)
Online Tutorial/Online Document: n9. cl/wq54wPackage Content 2.13 inch Touch e-Paper HAT x1
