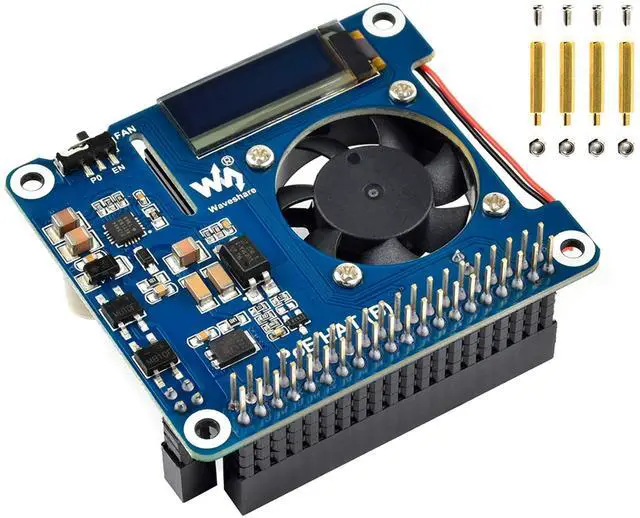

    Power Over Ethernet HAT (B) for Raspberry Pi 3 Model B+ / Raspberry Pi 4 Model B, PoE HAT Board with 0.91" OLED and Cooling Fan, Support 802.3af PoE Network Power-Sourcing Equipment Required

    Be the first to review this product...
    • Power Over Ethernet HAT POE HAT (B) for Raspberry Pi 4B/3B+,Standard Raspberry Pi 40PIN GPIO Stackable Header, Allows Connecting Other HATs
    • Support 802.3af PoE Network,802.3af Power-Sourcing Equipment Required
    • Integrates PCF8574 IO expander for I2C bus, providing pin P0 for directly fan control, and more spare IO pins

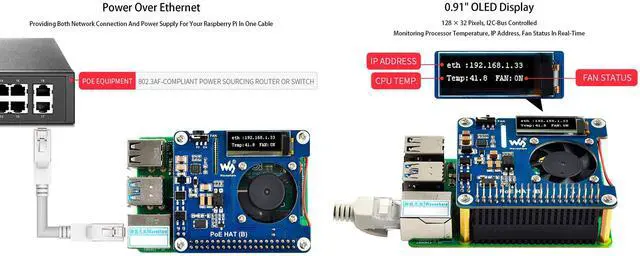

    • 0.91" OLED, for monitoring processor temperature, IP address, and fan status in real-time; Onboard cooling fan, allows auto running on powerup OR programmable control, configured by switch
    • Cooling fan: Allows auto running on powerup OR programmable control, configured by switch. Automatically turn on/off depending on the Raspberry Pi processor temperature
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

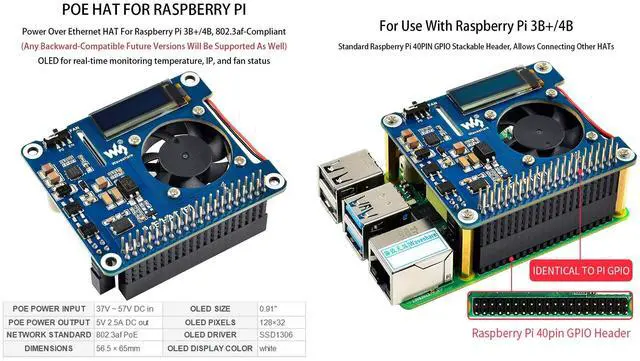

    FeaturesStandard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 3B+/4BPoE (Power Over Ethernet) capability 802.3 af-compliantFully isolated switched-mode power supply (SMPS) 0.91" OLED, for monitoring processor temperature, IP address, and fan status in real-timeOnboard cooling fan, allows auto running on powerup OR programmable control, configured by switchIntegrates PCF8574 IO expander for I2C bus, providing pin P0 for directly fan control, and more spare
    IO pinsSpecificationsPoE power input: 37V ~ 57V
    DC inOLED size: 0.91"P
    oE power output: 5V 2.5A
    DC outOLED pixels: 12832Network
    standard: 802.3 af
    PoEOLED driver: 1306OLED
    display color:
    whiteDimensions: 56.5 65mmUser
    Manual/Document: n9. cl/xg7adPackage ContentPoE HAT (B) x1Standoffs pack x1
