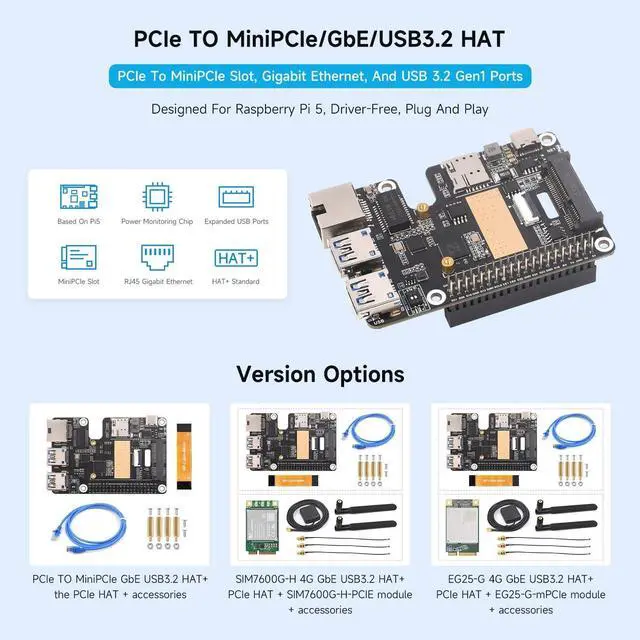

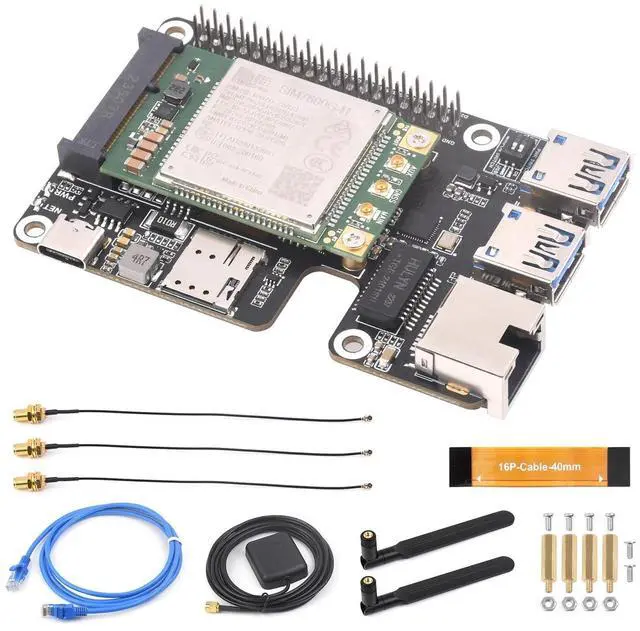

Waveshare PCIe to MiniPCIe/Gigabit Ethernet/USB 3.2 Gen1 HAT, Compatible with Raspberry Pi 5, Supports MiniPCIe Interface 4G Module, High-Speed Networking, Include SIM7600G-H 4G Module

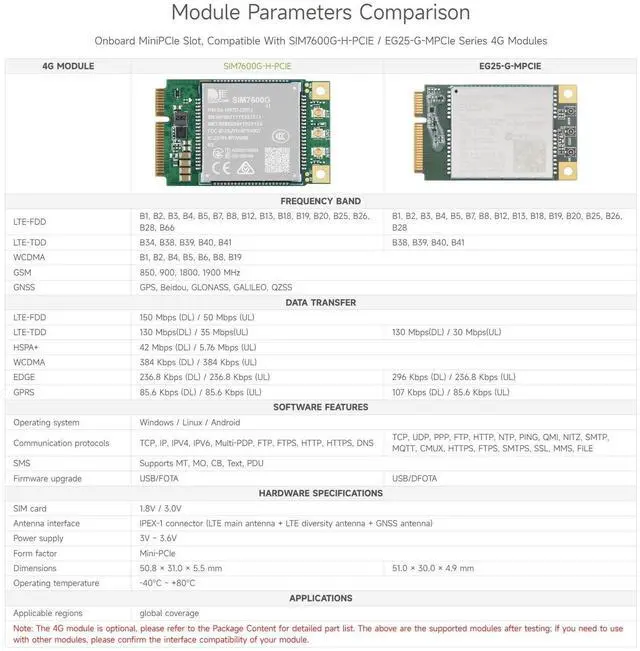

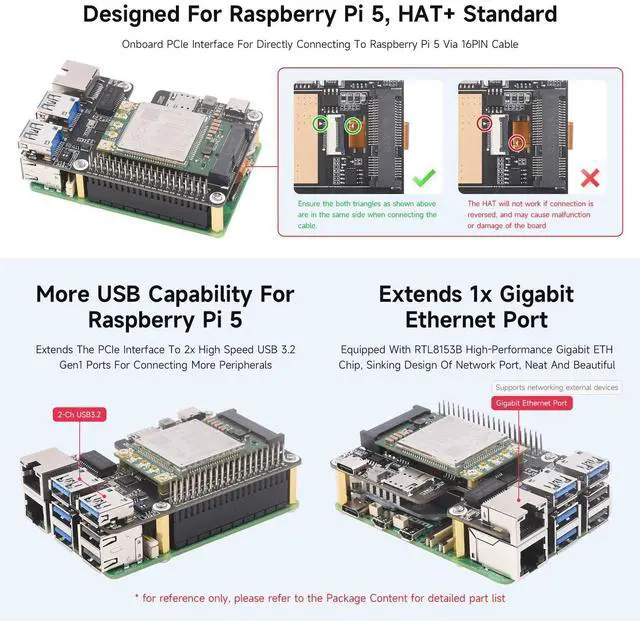

Onboard MiniPCIe slot, Compatible with SIM7600G-H-PCIE / EG25-G-mPCIe series 4G modules. Onboard PCIe interface for directly connecting to Raspberry Pi 5 via 16PIN cable
Equipped with RTL8153B high-performance Gigabit ETH chip, sinking design of network port, neat and beautiful
Supports Raspberry Pi OS / Ubuntu / OpenWRT, etc., stable and reliable network speed. Supports systems such as Raspberry Pi OS, Ubuntu, OpenWRT, etc.
LTE Cat-4: up to 50Mbps (uplink) / up to 150Mbps (downlink) 3G (HSPA+): up to 5.76Mbps (uplink) / up to 42Mbps (downlink) 2G (GPRS/EDGE): up to 236.8Kbps (uplink) / up to 236.8Kbps (downlink
Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning. Real-time monitoring of power status, supports USB port power control via software
Rich WiKi Resources We provide official Wiki resources, please contact us for more information.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Onboard MiniPCIe slot, Compatible with SIM7600G-H-PCIE / EG25-G-mPCIe series 4G modules. Onboard PCIe interface for directly connecting to Raspberry Pi 5 via 16PIN cable ^^ Equipped with RTL8153B high-performance Gigabit ETH chip, sinking design of network port, neat and beautiful ^^ Supports Raspberry Pi OS / Ubuntu / OpenWRT, etc., stable and reliable network speed. Supports systems such as Raspberry Pi OS, Ubuntu, OpenWRT, etc.
^^ LTE Cat-4: up to 50Mbps (uplink) / up to 150Mbps (downlink)
3G (HSPA+): up to 5.76M bps (uplink) / up to 42Mbps (downlink) 2G (GPRS/EDGE): up to 236.8K bps (uplink) / up to 236.8K bps (downlink ^^ Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning. Real-time monitoring of power status, supports USB port power control via software ^^ Rich WiKi Resources We provide official Wiki resources, please contact us for more information.
