waveshare Nano Base Board (A) for Raspberry Pi Compute Module 5 Lite/eMMC,CM5 Mini Expansion Board,Integrate Multiple Peripheral Interfaces

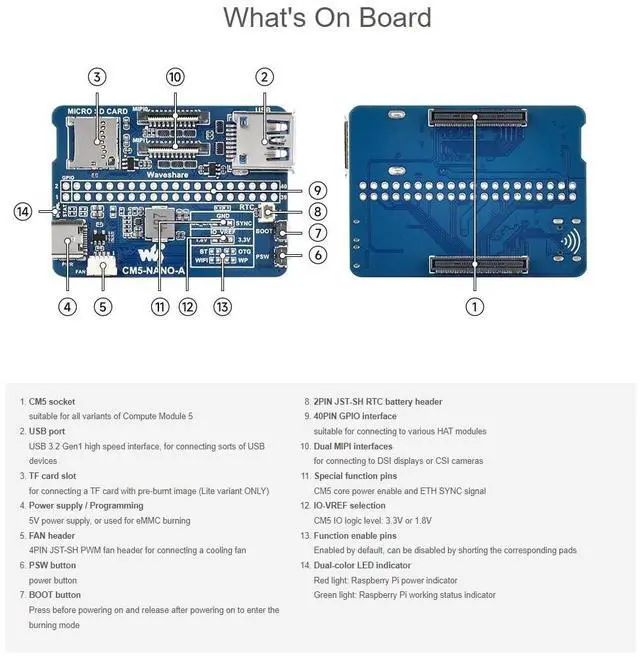

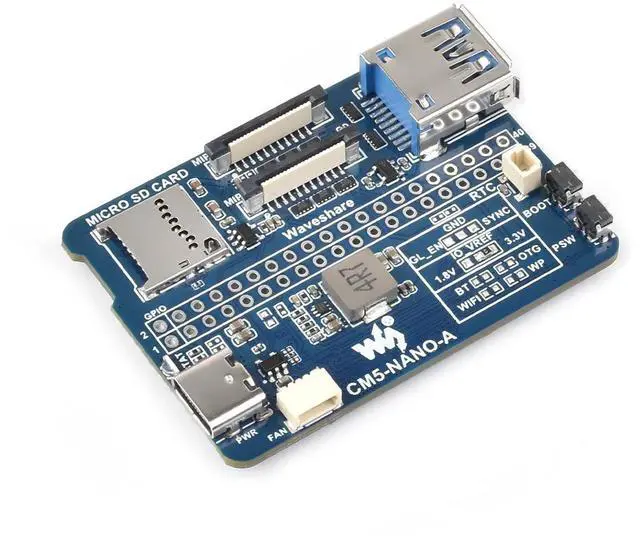

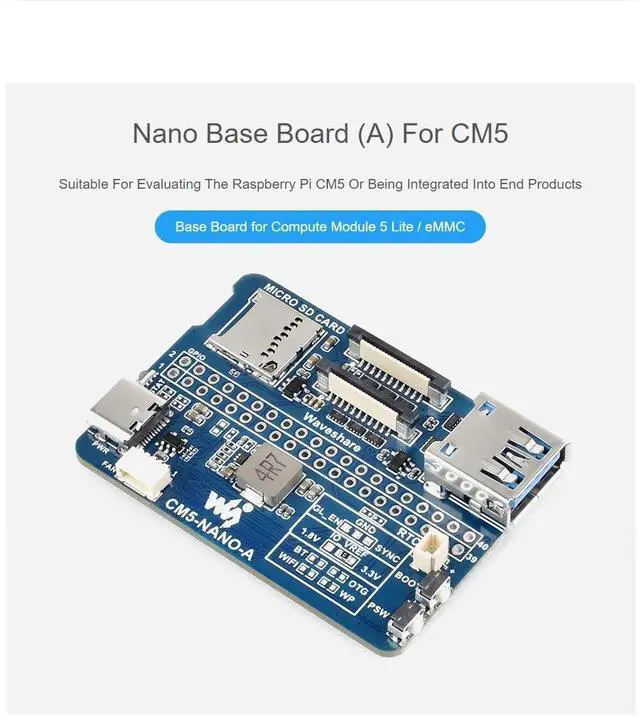

OverviewAs the mini IO board of the Raspberry Pi Compute Module 5, CM5-NANO-A is a baseboard that can be used with the Raspberry Pi Compute Module 5. With powerful features integrated into a compact design, it is only the size of a CM5 with USB 3.2 Gen1 interface onboard. Features and Precautions1. It is forbidden to unplug and unplug any device other than USB when it is charged2. Type C can be used as a USB SLAVE interface to flash images. 3. Onboard default USB 3.2 Gen1 port. 4. The onboard BOOT button, you can press the BOOT button before powering on, and connect to the computer through Type C to let the device enter the flashing mode5.

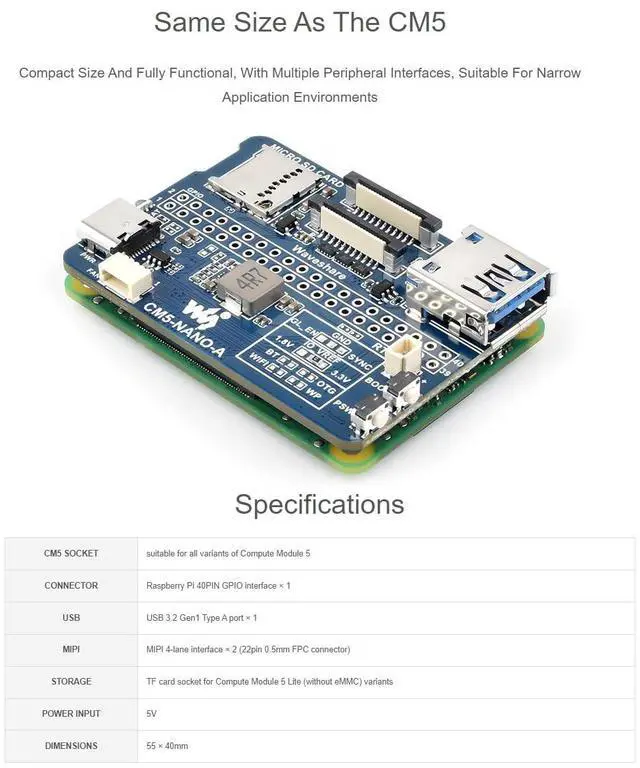

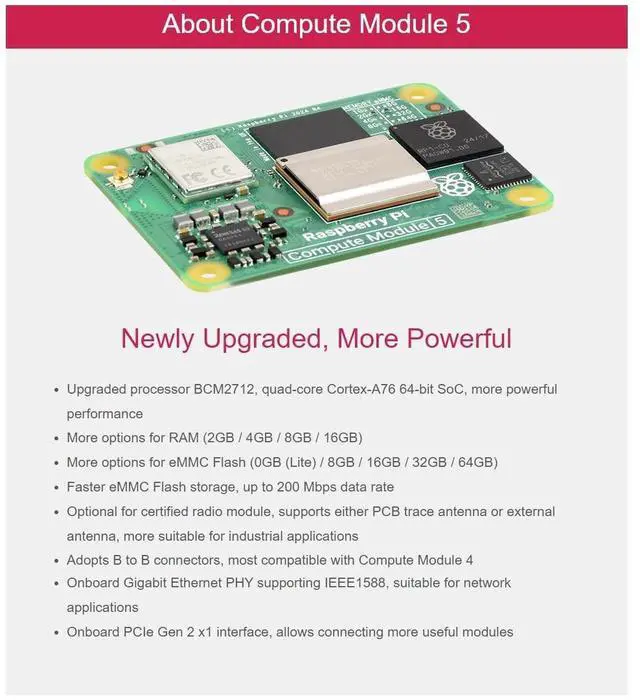

Do not connect other devices when using Type C to flash. Insufficient power supply for burning will cause the device to be unrecognized6. USB TYPE A interface maximum power output 2ASpecificationsCM5 SOCKET---suitable for all variants of Compute Module 5CONNECTOR---Raspberry Pi 40PIN GPIO interface 1USB---USB 3.2 Gen1 Type A port 1MIPI---MIPI 4-lane interface 2 (22pin 0.5 mm FPC connector)STORAGE---TF card socket for Compute Module 5 Lite (without eMMC) variantsPOWER INPUT---5VDIMENSIONS---55 40mmPackage ContentCM5-NANO-A x12*20PIN color-coded straight pinheader x1FAQCan the old versions of the Raspberry Pi operating system be used with CM5? CM5 requires the latest version of Raspberry Pi OS Bookworm (2024-11-19 or later).
