waveshare RP2040-ETH Mini Development Board RP2040 Ethernet Port Module Based on Raspberry Pi Microcontroller Chip RP2040,Supports TCP Server/TCP Client/UDP Server/UDP,USB-C Connector,Ethernet Port

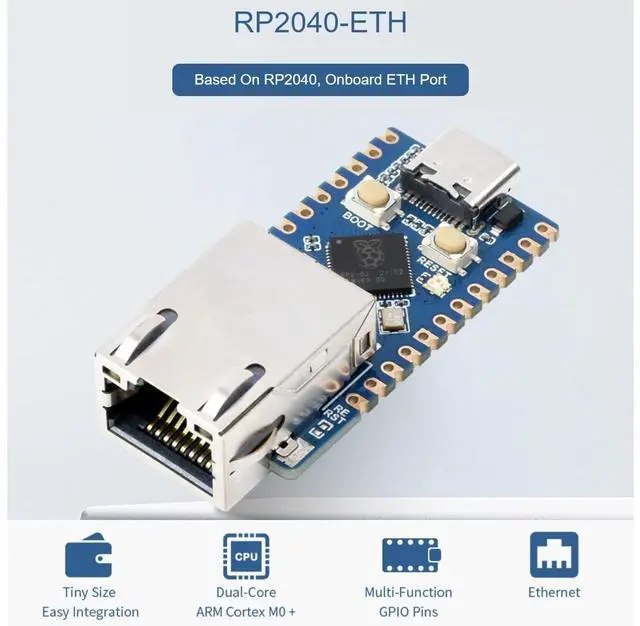

- RP2040-ETH,Based On RP2040, Onboard ETH Port

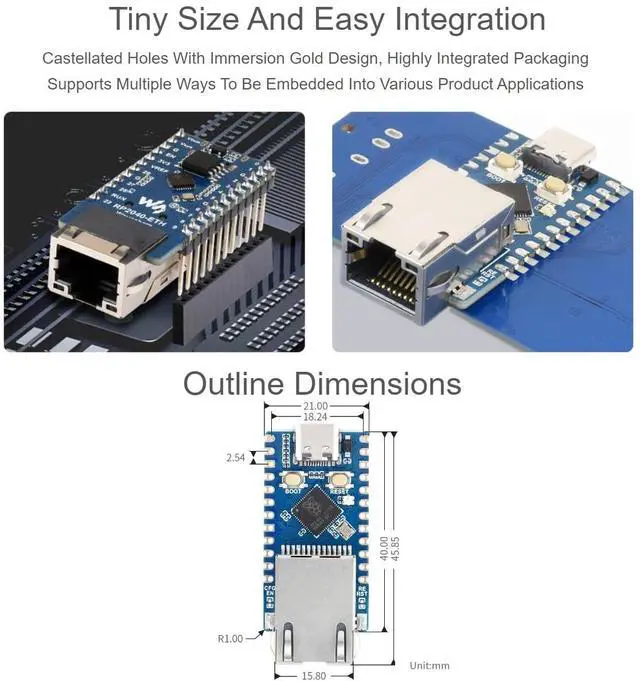

- Tiny Size And Easy Integration,Castellated Holes With Immersion Gold Design, Highly Integrated Packaging,Supports Multiple Ways To Be Embedded Into Various Product Applications

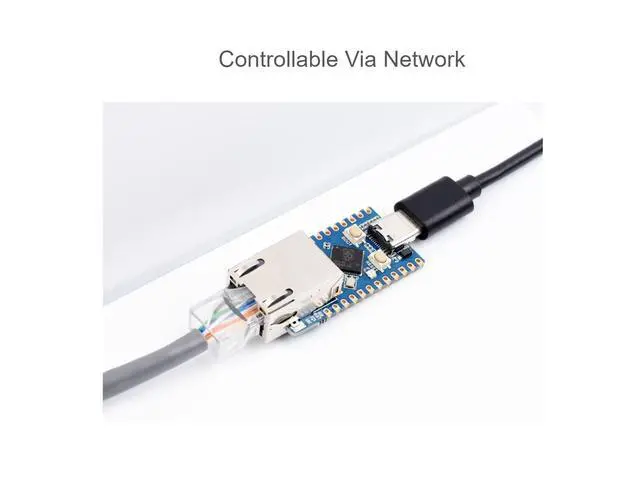

- Support Multiple Communication Modes.Supports TCP Server / TCP Client / UDP Server / UDP
- Support C/C++, MicroPython, Arduino.Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
- Based On Official RP2040 Dual Core Processor
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

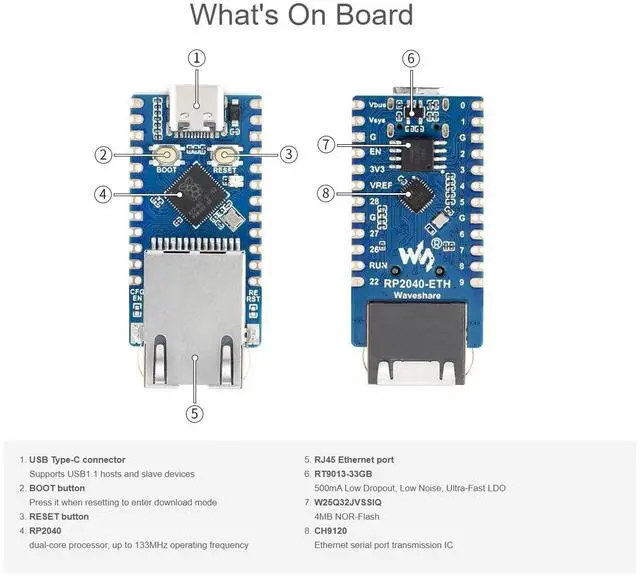

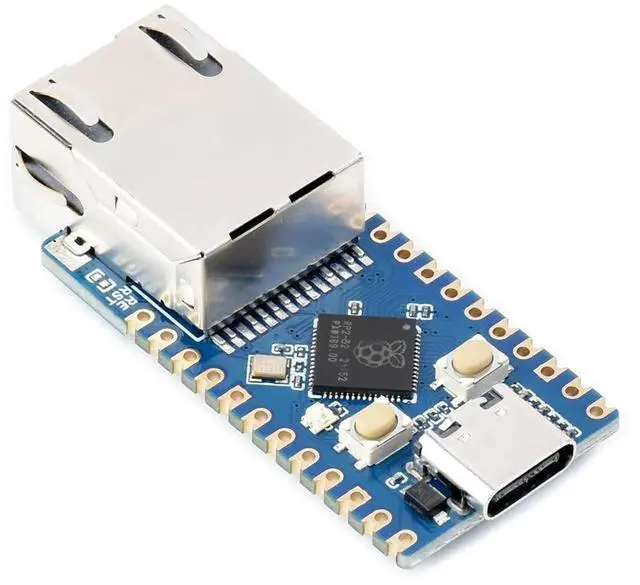

Waveshare RP2040-ETH Mini Development Board, RP2040 Ethernet Port Module, Raspberry Pi Microcontroller Development Board, Based On OfficialRP2040 Dual Core ProcessorBoard SpecificationsDual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz264KB of SRAM, and 4MB of onboard Flash memoryOnboard CH9120 with integrated TCP/IP protocol stack14 multi-function GPIO pins, compatible with some Pico HATsCastellated module allows soldering direct to carrier boardsDrag-and-drop programming using mass storage over USBTemperature sensor8 Programmable I/O (PIO) state machines for custom peripheral supportWhat's On Board1. USB Type-C connectorSupports USB 1.1 hosts and slave devices2. BOOT buttonPress it when resetting to enter download mode3.
RESET button4. RP2040dual-core processor, up to 133MHz operating frequency5. RJ45 Ethernet port6. RT9013-33GB500mA Low Dropout, Low Noise, Ultra-Fast LDO7. W25Q32JVSSIQ4MB NOR-Flash8. CH9120Ethernet serial port transmission ICPackage ContentRP2040-ETH x1NoteThis product is without pre-soldered header by default, please contact us if you need mass customization. Development Resources are provided, please contact us to get if you need.
RESET button4. RP2040dual-core processor, up to 133MHz operating frequency5. RJ45 Ethernet port6. RT9013-33GB500mA Low Dropout, Low Noise, Ultra-Fast LDO7. W25Q32JVSSIQ4MB NOR-Flash8. CH9120Ethernet serial port transmission ICPackage ContentRP2040-ETH x1NoteThis product is without pre-soldered header by default, please contact us if you need mass customization. Development Resources are provided, please contact us to get if you need.
