waveshare for Raspberry Pi/Jetson Nano/Windows/PC, 7inch IPS Capacitive Touch Display 1024x600, Integrated Thin and Light LCD, Support Windows/Linux/Android

OverviewThis 7inch IPS Integrated Touch Display is for customers who need a lightweight HDMI display. As it is thinner and lighter than any traditional HDMI display, users can do the second development by themselves easily. For simplifying the display, we integrate the power supply, display, touch, and control signal as the 40PIN multi-functional header. Just need an FPC cable, you can lower the project cost with the thinnest display, and apply it in any embedded projects. Feature7inch IPSscreen, 1024 x 600 hardware resolution. Capacitive touch, support five-point touch.

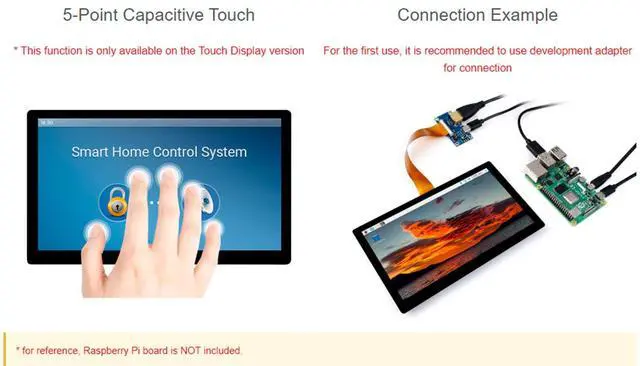

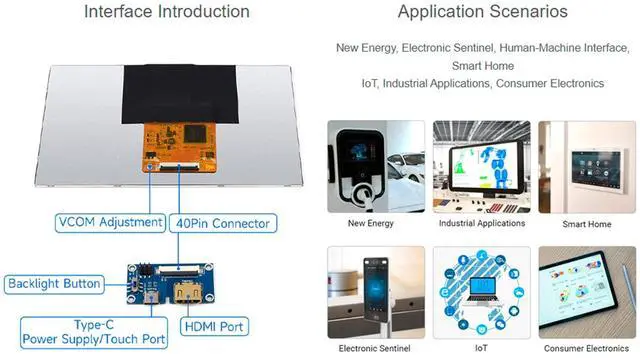

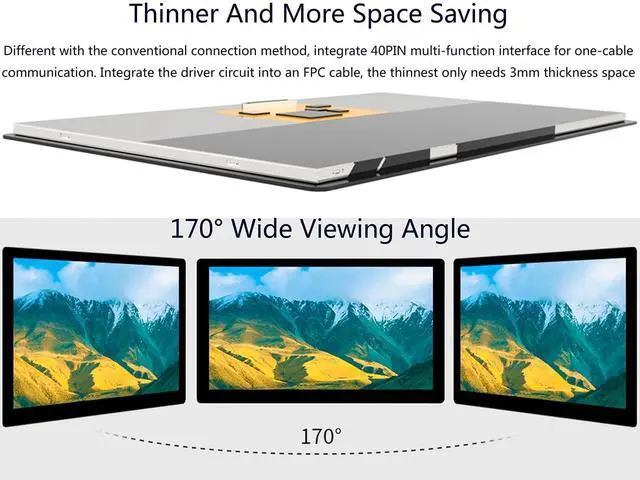

COF thin and light structure, providing 40PIN interface one-line communication, integrated development is more convenient. High compatibility, when used with development accessories, it supports main control boards such as Raspberry Pi, PC, and Jetson nano. Support backlight control, more power saving. Adapter Board pin header definition & Function introduction5V---DC 5V power input3V3---DC 3.3V power outputGND---Ground (0V) EN---Backlight enablePWM---Backlight adjustmentIO---NCOnline Tutorial/Working with

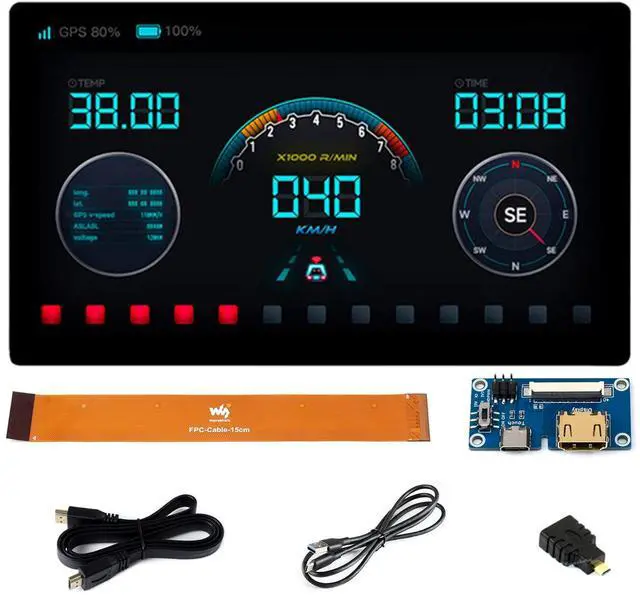

Raspberry Pi/ PC guide: n9. cl/9ddwzPackage Content7inch IPS Touch Display x1FPC cable (~ 15cm) x1Adapter
Development Board AccessoriesNote: Some PCs do not support plug-and-play with HDMI devices. Generally, they can be used normally after restarting the system. Insufficient power supply of the USB interface of some PCs will cause the LCD screen to flicker, which can be restored to normal use after connecting to an external 5V/1A power supply.
QA: What is the power consumption of the 70H-1024600 series?
Answer: Under the power supply of 5V, the working current is about 450mA when the backlight is on, and when the backlight is off it is about 100mA.
