waveshare PCIe to M.2 Adapter (E with Cooling Fan for Raspberry Pi 5,Support M.2 NVMe SSD 2230 2242,Supports Gen2 and Gen3 Modes

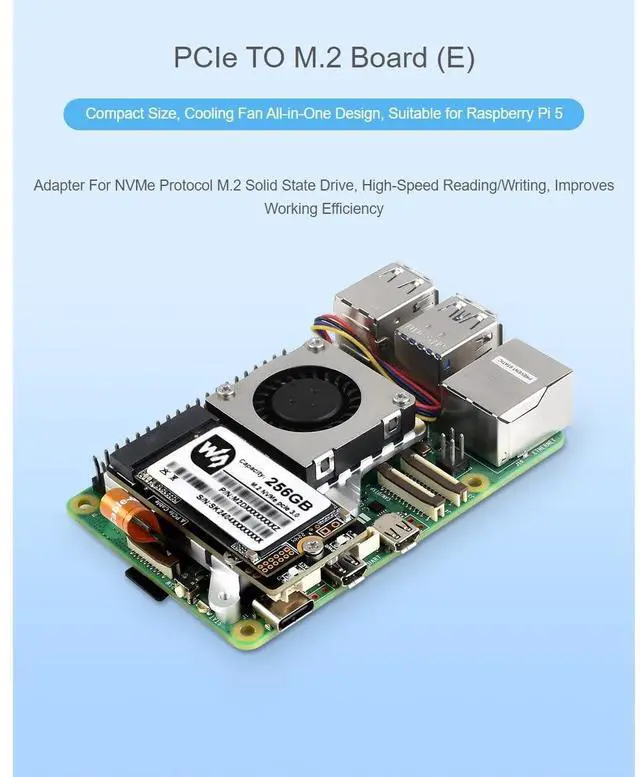

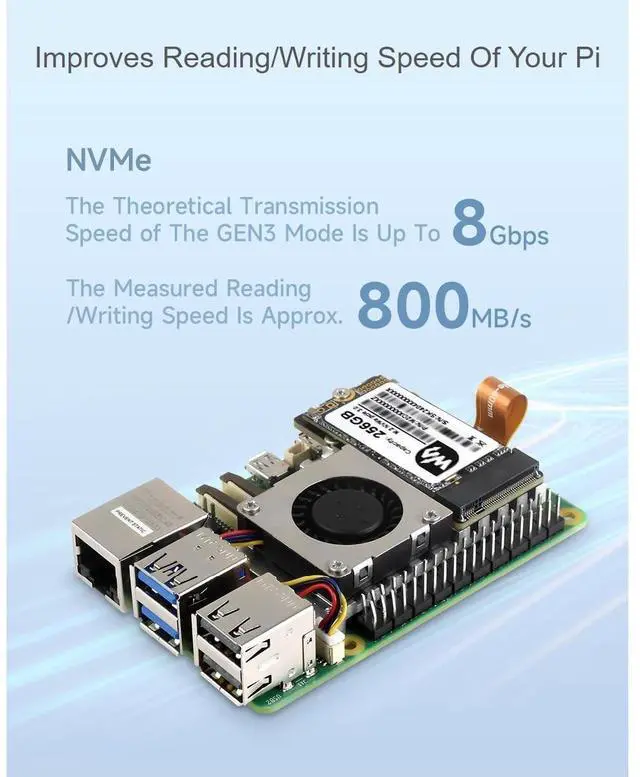

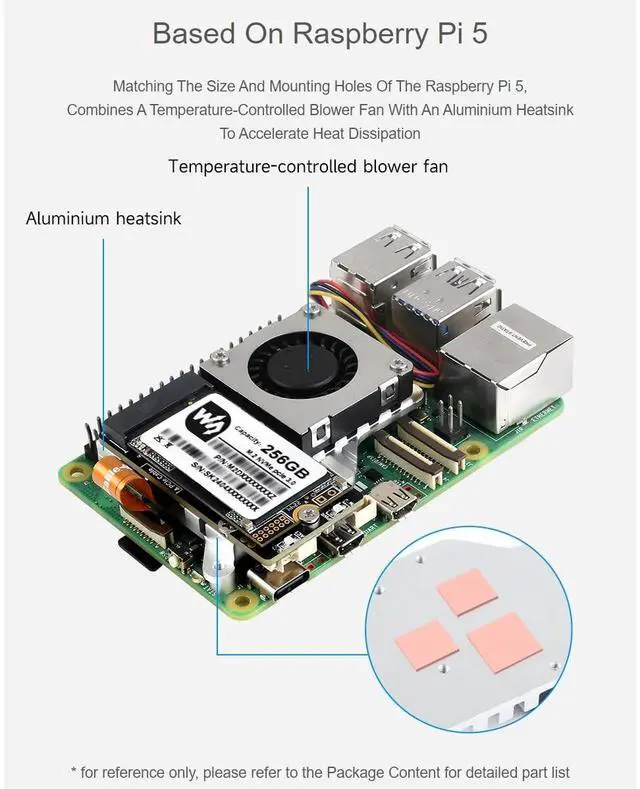

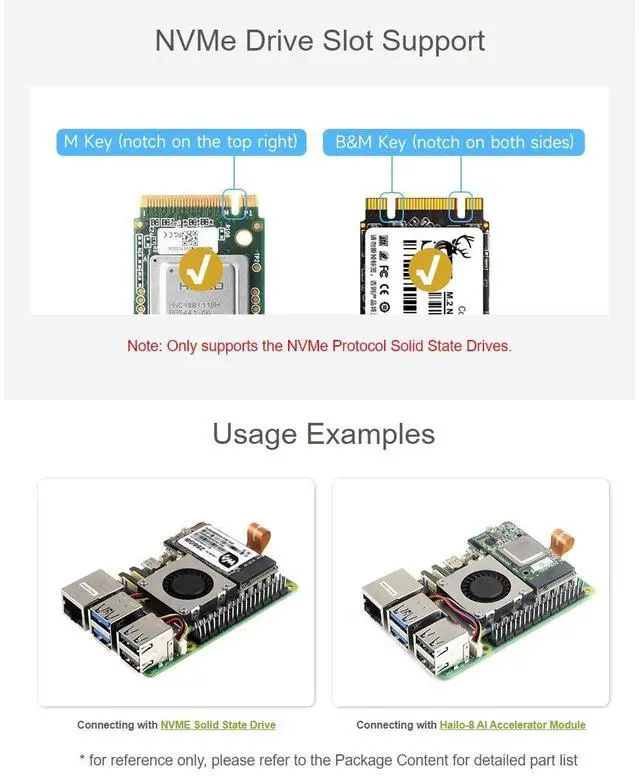

Overview PCIe To M. 2 Adapter Board (E) For Raspberry Pi 5, With Cooling Fan, Compatible With 2242 / 2230 Size NVMe Protocol M. 2 SSD, 8Gbps Data Rate, High-Speed Reading/Writing, Raspberry Pi 5 NVMe Features 1. PCIe TO M. 2 Board (E) Compact Size, Cooling Fan All-in-One Design, Suitable for Raspberry Pi 5 Adapter For NVMe Protocol M. 2 Solid State Drive, High-Speed Reading/Writing, Improves Working Efficiency 2. NVMe Drive Slot Support 3. Based On Raspberry Pi 5 Matching The Size And Mounting Holes Of The Raspberry Pi 5, Combines A Temperature-Controlled Blower Fan With An Aluminium Heatsink To Accelerate Heat Dissipation 4.

Connecting To PI5 Via 16PIN Cable Based On 16PIN PCIe Interface Of Raspberry Pi 5 5. NVMe Solid State Drives Support Compatible With 2242 / 2230 Size M. 2 Solid State Drives Supports Gen2 And Gen3 Modes, Supports Booting PI5 From Solid State Drive 6. Onboard Dual LED Indicators Easy To Monitor The Working Status

Specifications

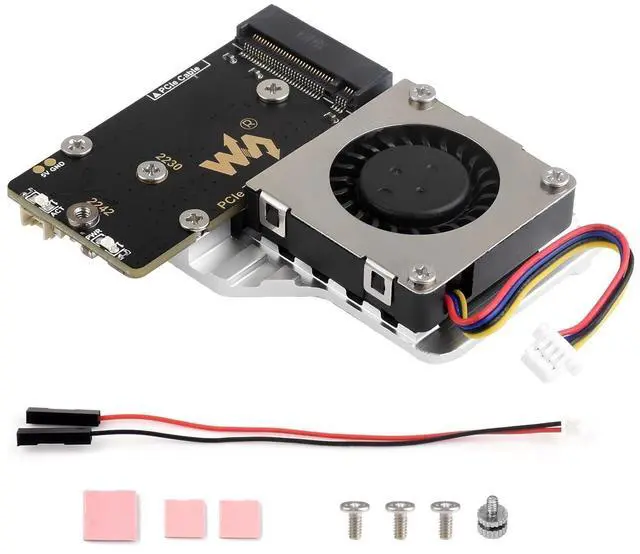

FAN INPUT VOLTAGE---5V DC (supplied via four-pin fan header on Raspberry Pi 5) M. 2 INTERFACE---Supports NVMe Solid State Drives (PCIe Gen2/3) SOLID STATE DRIVE SIZE SUPPORT---2242, 2230 FAN SPEED CONTROL---Pulse width modulation control with tachometer MAXIMUM AIRFLOW--- 1.39 CFM FAN SPEED---800010%RPM MATERIAL---Anodised aluminium Package Content PCIe TO M.

2 Board (E) x1 MX 1.25 2PIN cable x1 Thermal pad (3PCS) x1 Screws pack x1
