RS232 to RJ45 Ethernet Converter Adapter with POE Function,Rail-Mount RS232 Serial Server, Bi-Birectional Transparent Data Transmission Between RS232 and Ethernet, Support Modbus MQTT TCP/IP

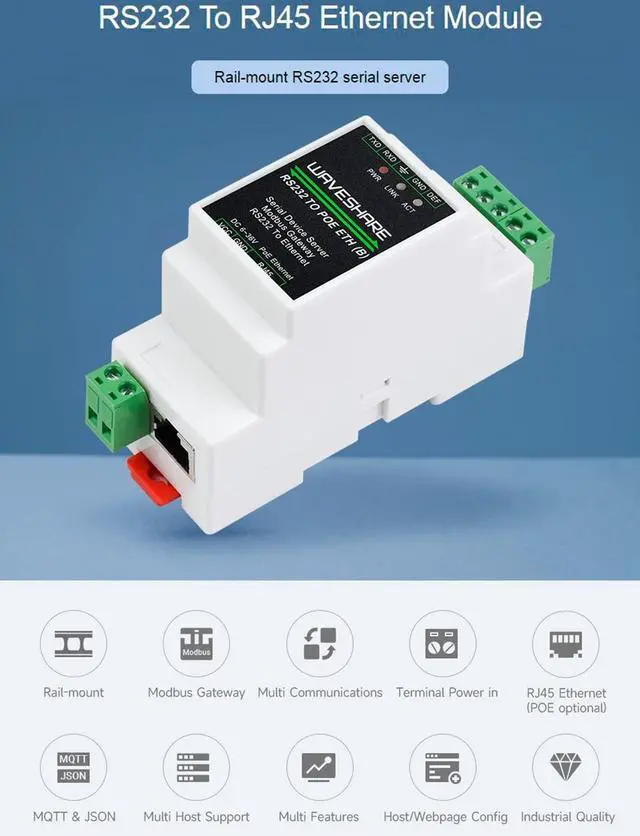

- RS232 To RJ45 Ethernet Module with POE Function ,Rail-mount RS232 serial server. Bi-Directional Transparent Data Transmission Between RS232 And Ethernet. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS232 to JSON, etc.

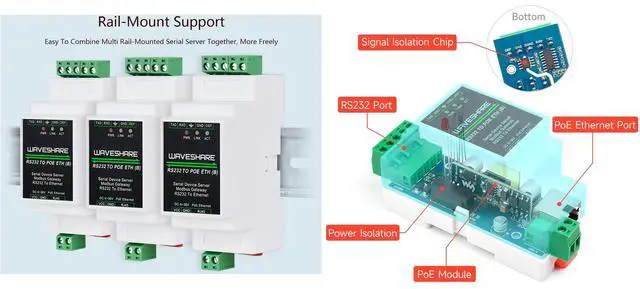

- Support Rail-Mount Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely. Support Modbus Gateway Suitable For Modbus Gridding Upgrade, Can Be Used With Specific Configuration Software.

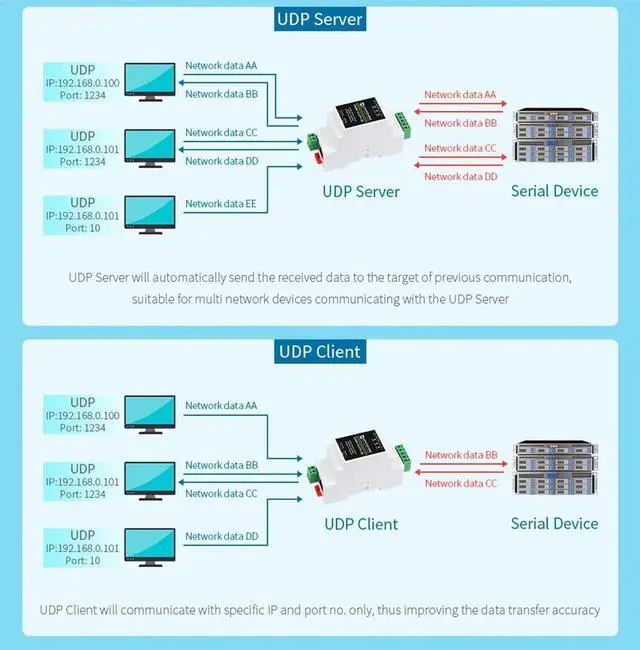

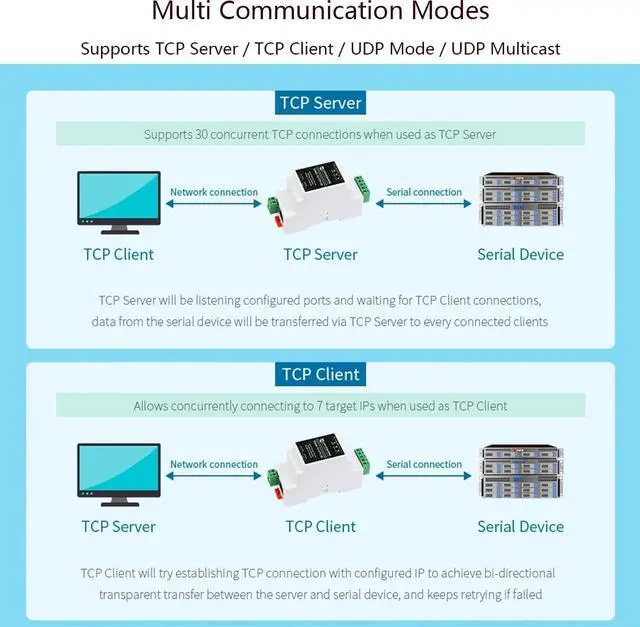

- Multi Communication Modes Supports TCP Server / TCP Client / UDP Mode / UDP Multicast. MQTT/JSON To Modbus More Flexible Conversion Between Different Protocols.
- Multi Hosts Roll-Polling Support Different Network Devices Will Be Identified And Responsed Respectively, No More Crosstalk Issue While Communicating With Multi Network Devices. User-Defined Heartbeat/Registration Packet Easy For Cloud Communication And Device Identification.
- NTP Protocol Support Getting Network Time Info For Serial Output Or Data Upload. M
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

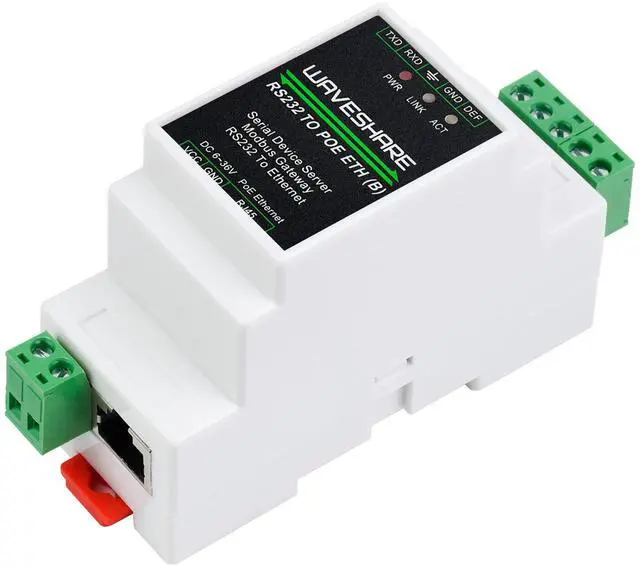

OverviewThis is a RS232 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS232 to JSON, etc. The module features RS232 and Ethernet port, with POE function, uses screw terminals for power input. Rail-mount case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring... SpecificationsProduct Type--Serial server, Modbus Gateway, MQTT GatewayBasic Function--Bi-directional transparent data transmission between RS232 and EthernetCommunication interface--RS232 port x 1, Ethernet port x 1Power supply--6 ~ 36V DC screw terminal, or PoE portIsolation Protection--Power isolation, Signal isolation1.
COMMUNICATIONEthernet-- PoE network port, support IEEE 802.3 af standard, 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protectionSerial port--Isolated RS2322. SERIAL SPECIFICATIONBaudrate--300 ~ 115200 bpsParity bit--none, odd, even, mark, spaceData bit--5 ~ 9 bits3. SOFTWAREProtocol--ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNSConfiguration--host, web browser, device management functions libraryCommunication method--TCP/IP direct communication, VCOMOperating mode--TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast4. OTHERSOperating temperature---40 ~ 85Humidity range--5% ~ 95% relative humidityDimensions--L
W H: 87 36 59 mmPACKAGE CONTENTRS232 TO ETH with POE Module x1
COMMUNICATIONEthernet-- PoE network port, support IEEE 802.3 af standard, 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protectionSerial port--Isolated RS2322. SERIAL SPECIFICATIONBaudrate--300 ~ 115200 bpsParity bit--none, odd, even, mark, spaceData bit--5 ~ 9 bits3. SOFTWAREProtocol--ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNSConfiguration--host, web browser, device management functions libraryCommunication method--TCP/IP direct communication, VCOMOperating mode--TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast4. OTHERSOperating temperature---40 ~ 85Humidity range--5% ~ 95% relative humidityDimensions--L
W H: 87 36 59 mmPACKAGE CONTENTRS232 TO ETH with POE Module x1
