waveshare HRB8825 Stepper Motor HAT for Raspberry Pi and Jetson Nano, Drives Two Stepper Motors, Up to 1/32 Microstepping User for 3D Printer Sculpturing Machine Mechanical Arm
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. Onboard dual HR8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use.
- 6 available microstepping modes, configured with the DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step. Adjustable motor drive current via potentiometer, maximum 2.5A current output.
- Protection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO). Integrates 5V regulator, allows providing power to Raspberry Pi. Onboard multi connector options for stepper motors in different specifications.
- Specifications: Motor controller:HR8825. Motor drive voltage:8.2V~28V. Motor drive current:2.5A. Logic voltage:3.3V. Mounting hole size:3.0mm. Dimension:65 x 56mm.
- Comes with development resources and manual (examples in BCM2835, wiringPi, and python)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
OverviewStandard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson NanoOnboard dual HR8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use6 available microstepping modes, configured with the
DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-stepAdjustable motor drive current via potentiometer, maximum
2.5A current outputProtection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO) Integrates 5V regulator, allows providing power to Raspberry PiOnboard multi connector options for stepper motors in different specificationsComes with development resources and manual (examples in BCM2835, wiringPi, and
python)Specifications: Motor
controller: HR8825.
Motor drive voltage: 8.2V ~28V.
Motor drive current: 2.5A.
Logic voltage: 3.3V.
Mounting hole size: 3.0 mm.

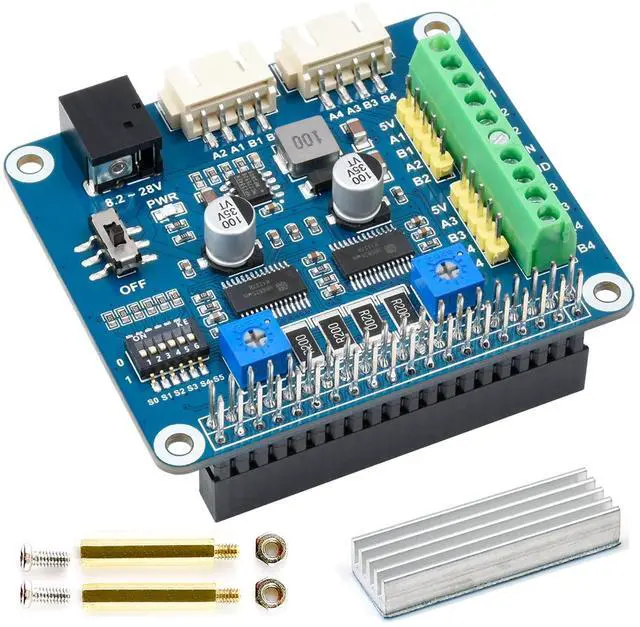

Dimension: 65 x 56mm. Package ContentStepper Motor HAT (B) x1RPi screws pack (2pcs) x1Aluminum heatsink x1
DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-stepAdjustable motor drive current via potentiometer, maximum
2.5A current outputProtection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO) Integrates 5V regulator, allows providing power to Raspberry PiOnboard multi connector options for stepper motors in different specificationsComes with development resources and manual (examples in BCM2835, wiringPi, and
python)Specifications: Motor
controller: HR8825.
Motor drive voltage: 8.2V ~28V.
Motor drive current: 2.5A.
Logic voltage: 3.3V.
Mounting hole size: 3.0 mm.
Dimension: 65 x 56mm. Package ContentStepper Motor HAT (B) x1RPi screws pack (2pcs) x1Aluminum heatsink x1
