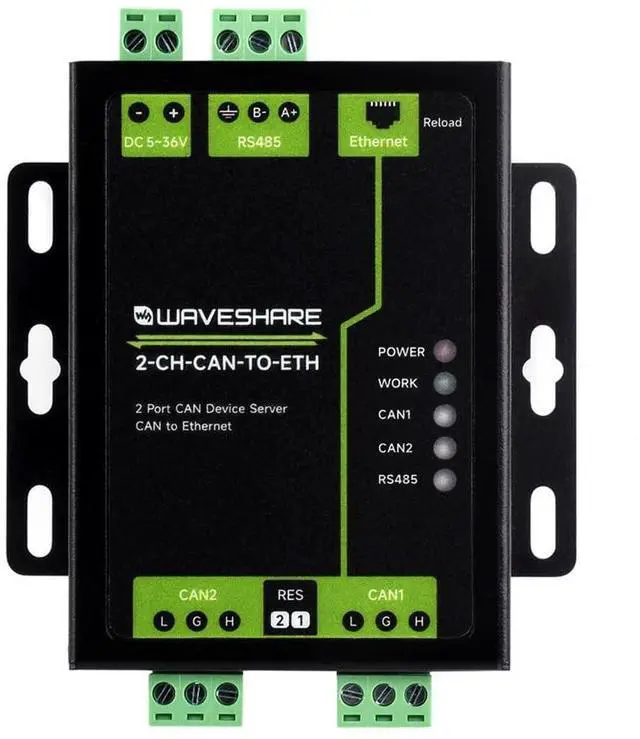

Waveshare Industrial Grade 2-Ch CAN to Ethernet Server, 2-Ch CAN + RS485 + Ethernet Port, Supports CAN Repeater/CAN to RS485, Dual Socket, Aluminium Alloy Case, Wall-Mount Support

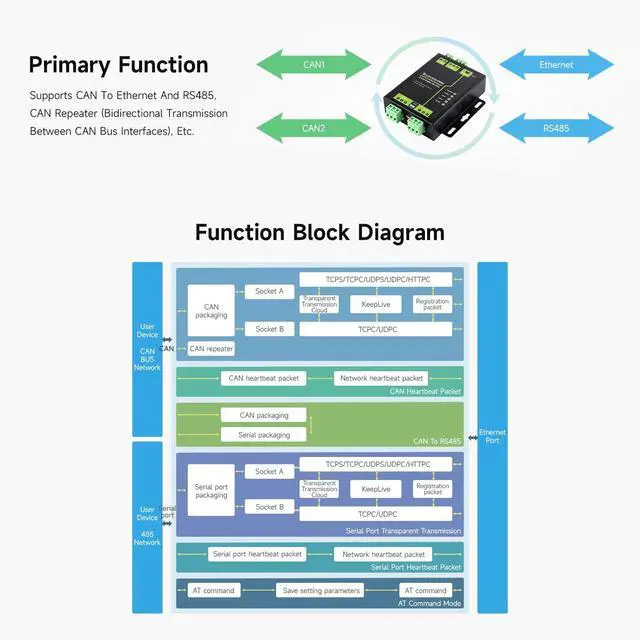

Supports CAN To Ethernet And RS485, CAN Repeater (Bidirectional Transmission Between CAN Bus Interfaces), Etc. ^^ Industrial-Grade Standard Design For Meeting Temperature And Voltage Requirements In Various Application Fields ^^ The CAN To Ethernet Server Will Be Listening Configured Ports And Waiting For TCP Client Connections, Data From The CAN Device Will Be Transferred Via CAN Server To Every Connected Client ^^ The CAN To Ethernet Server Will Try Establishing TCP Connection With Configured IP To Achieve Bidirectional Transparent Transfer Between The Server And CAN Device, And Keep Retrying If Failed ^^ The CAN To Ethernet Server Will Send Data From The CAN Device To Specific IP Network Device Through UDP Packets, And Will Be Simultaneously Listening The Port And Send All The Received Data Back To The CAN Device ^^ The Frame Structure Transmission In Working Mode Of Each Socket Includes Frame Information, Frame ID, And Frame Data, Compliant With CAN 2.0B Specification, Supports Operation By Any System ^^ To Solve The Problems Of CAN Network Transmission Rate And Distance, And Expand The Number Of Communication Network ^^ Receives The Data From CAN IDs Within The Configured Range Only, Filtering Out CAN Frames Outside The Range ^^
CAN Heartbeat Packet: Sends Fixed Query Commands To The CAN Network Through Heartbeat Packet;
Network Heartbeat Packet: Notifies Network Terminal That The Server Is Active To Maintain Normal Network Connectivity With The Server ^^ Allows Server To Identify The Device Data Source, Or As A Password For Obtaining Server Function Authorization
