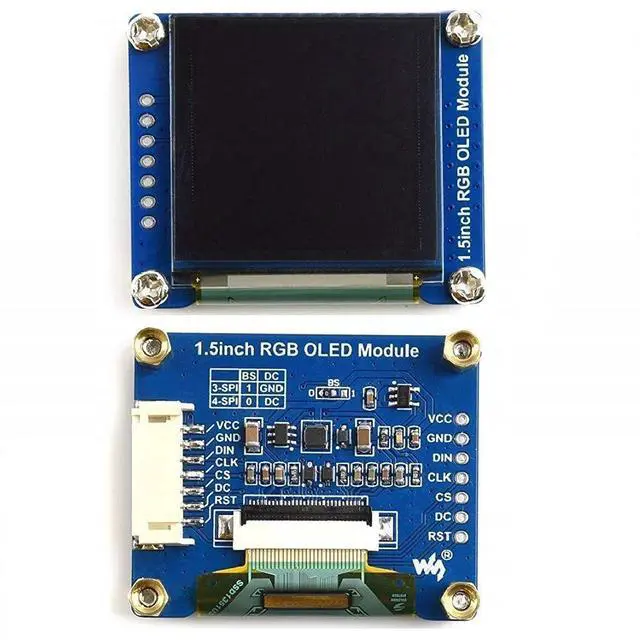

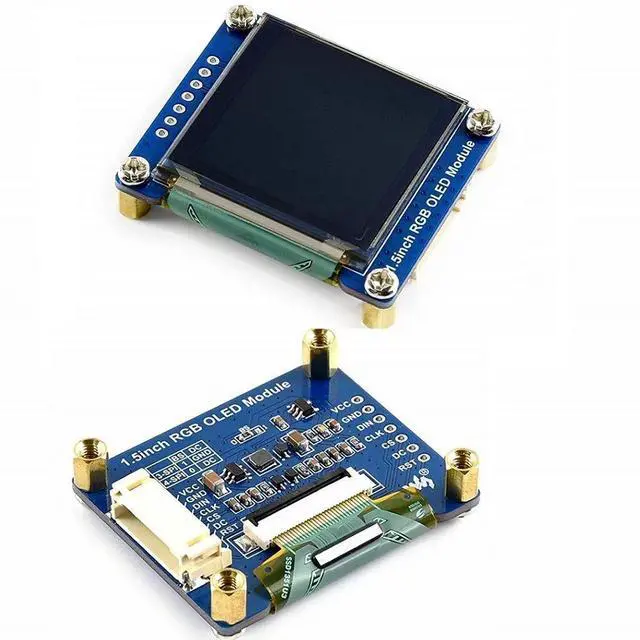

waveshare 1.5inch RGB OLED Display Module, 128x128 Pixels Displaying 65K Colors, Support Raspberry Pi Arduino STM32, SPI Interface
- 128x128 high resolution, 65K colors, clearly displays colorful images
- Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
- A cool addition to any Arduino project and is fairly simple to get setup and running
- SSD1351 OLED
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
1.5 inch RGB OLED display module, 128x128 pixels, 16-bit high color, SPI interfaceOverviewThis is a general RGB OLED display Module, 1.5 inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface.

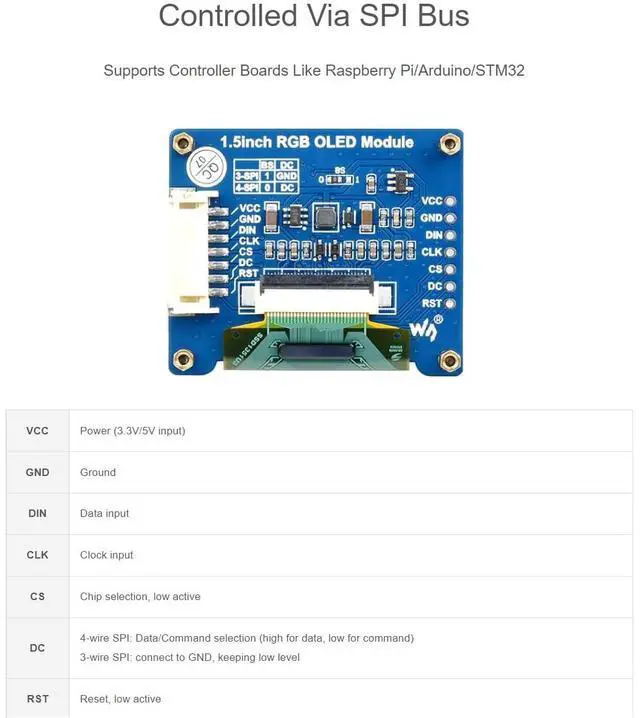

Interface: 4-wire SPI, 3-wire SPI
Display color: RGB, 65K colors
Resolution: 128x128
Viewing angle: >160
Operating voltage: 3.3V / 5V

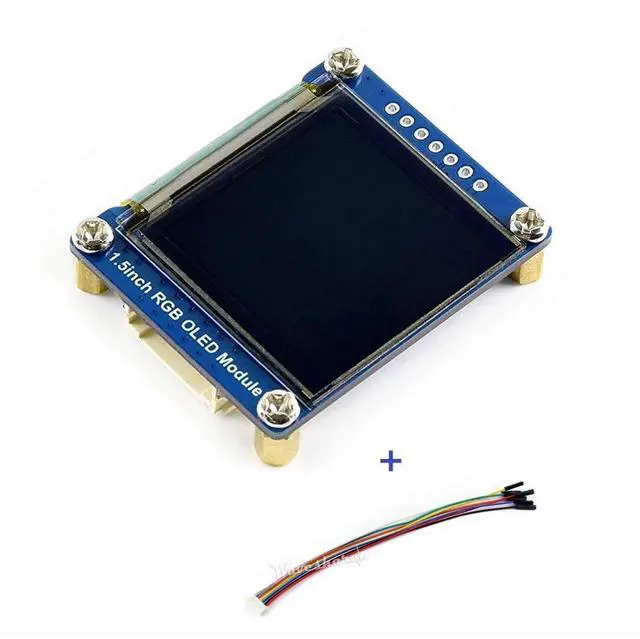

Dimension: 44.5 x 37 (mm) Package Content 1.5 inch RGB OLED Module x1
PH 2.0 7Pin x1Note: 100% original from Waveshare, technical support is provided, please feel free to contact us!
Specifications
Driver: SSD1351Interface: 4-wire SPI, 3-wire SPI
Display color: RGB, 65K colors
Resolution: 128x128
Viewing angle: >160
Operating voltage: 3.3V / 5V
Dimension: 44.5 x 37 (mm) Package Content 1.5 inch RGB OLED Module x1
PH 2.0 7Pin x1Note: 100% original from Waveshare, technical support is provided, please feel free to contact us!
