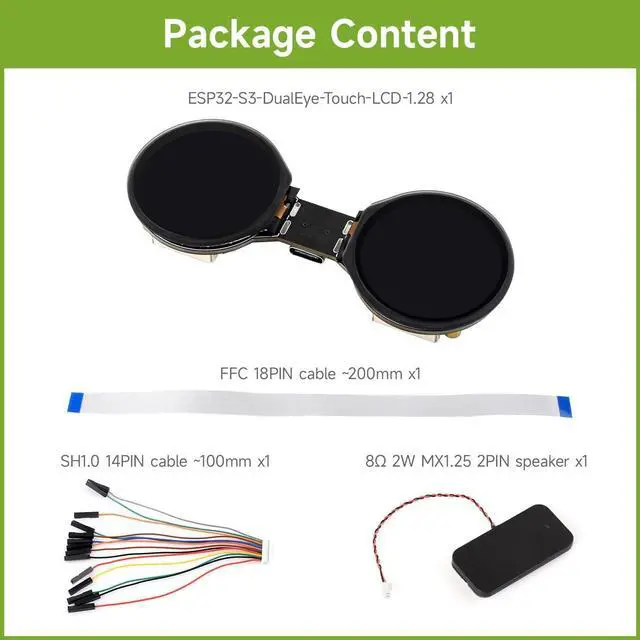

    Waveshare ESP32-S3 1.28inch Double Eye Round LCD AIoT Development Board, with Dual 1.28inch IPS Displays, 240 240 Resolution, Dual-core 240MHz Processor, Wi-Fi/Bluetooth 5 Support, with Touch

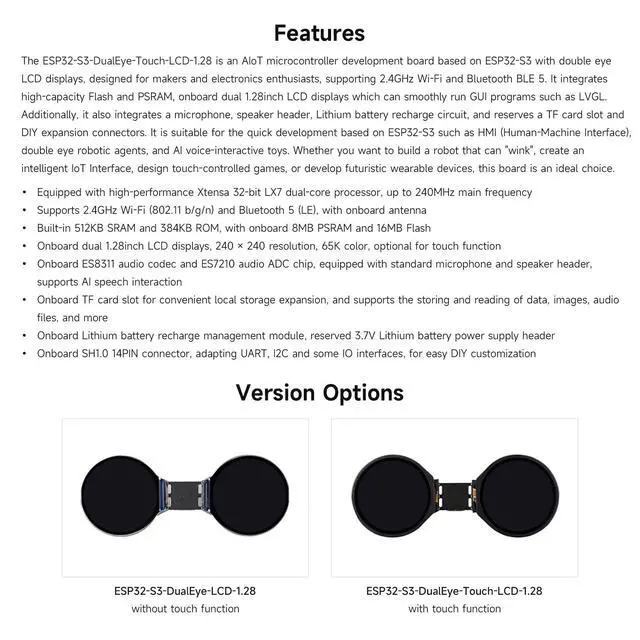

    • High-Performance Dual-Core Processor: Powered by the Xtensa 32-bit LX7 dual-core processor, the ESP32-S3-DualEye-Touch-LCD-1.28 achieves up to 240MHz clock speed for fast and efficient performance, ideal for various AIoT applications.
    • Comprehensive Connectivity: Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), enabling seamless wireless communication for a wide range of projects, with an onboard antenna for better signal strength.
    • Dual 1.28-inch LCD Displays: Equipped with dual 1.28-inch LCD displays featuring 240240 resolution and 65K colors, perfect for creating interactive GUIs, touch-controlled interfaces, and more. Touch functionality is optional for enhanced user experience.
    • Advanced Audio Integration: Features the ES8311 audio codec and ES7210 audio ADC chip, with a microphone and speaker header, enabling AI speech interaction and sound-based applications like voice assistants or robotic agents.
    • Expandable and Customizable: Includes an onboard TF card slot
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    High-Performance Dual-Core Processor: Powered by the Xtensa 32-bit LX7 dual-core processor, the ESP32-S3-DualEye-Touch-LCD- 1.28 achieves up to 240MHz clock speed for fast and efficient performance, ideal for various AIoT applications.
    ^^ Comprehensive Connectivity: Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), enabling seamless wireless communication for a wide range of projects, with an onboard antenna for better signal strength. ^^ Dual 1.28 -inch
    LCD Displays: Equipped with dual 1.28 -inch LCD displays featuring 240240 resolution and 65K colors, perfect for creating interactive GUIs, touch-controlled interfaces, and more. Touch functionality is optional for enhanced user experience.
    ^^ Advanced Audio Integration: Features the ES8311 audio codec and ES7210 audio ADC chip, with a microphone and speaker header, enabling AI speech interaction and sound-based applications like voice assistants or robotic agents.
    ^^ Expandable and Customizable: Includes an onboard TF card slot for local storage expansion, a rechargeable lithium battery management circuit, and a 14-pin SH 1.0 connector for DIY projects, offering flexible interfaces like UART, I2C, and GPIO for various customizations.
