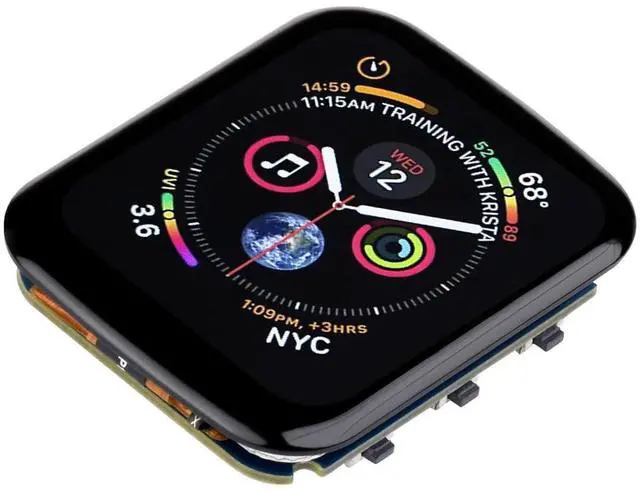

ESP32-S3 MCU Board with 1.69inch LCD Touch Display, 240280 Pixels 262K Color, Support 2.4GHz Wi-Fi & Bluetooth 5, 32-Bit LX7 Dual-Core Processor

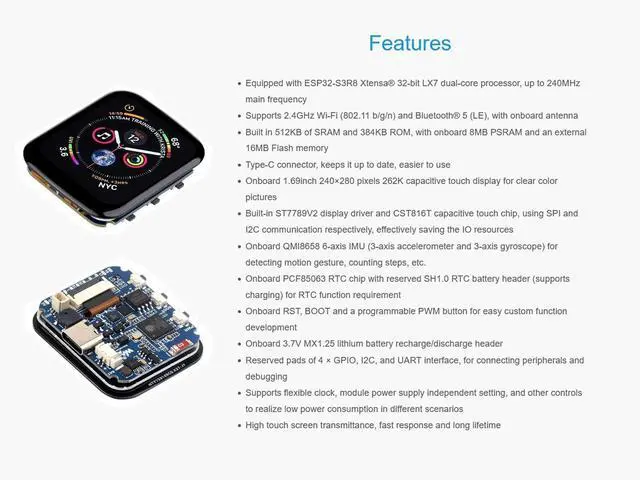

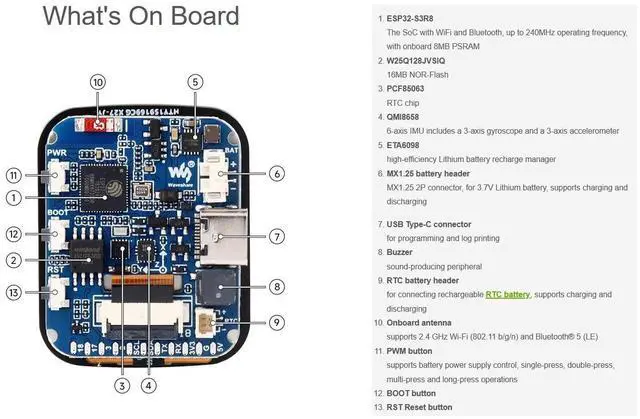

OverviewESP32-S3-Touch-LCD- 1.69 is a low-cost, high-performance MCU board, tiny size, with onboard 1.69 inch LCD display, Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC, and so on, which makes it easy for you to develop and integrate it into products quickly. FeaturesEquipped with ESP32-S3R8 32-bit LX7 dual-core processor, up to 240MHz main frequencySupports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antennaBuilt in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memoryType-C connector, keeps it up to date, easier to useOnboard 1.69 inch 240280 pixels 262K capacitive touch display for clear color picturesBuilt-in ST7789V2 display driver and CST816T capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resourcesOnboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.

Onboard PCF85063 RTC chip with reserved SH 1.0 RTC battery header (supports charging) for RTC function requirementOnboard RST, BOOT and a programmable PWM button for easy custom function developmentOnboard 3.7V MX 1.25 lithium battery recharge/discharge headerReserved pads of 4 GPIO, I2C, and UART interface, for connecting peripherals and debuggingSupports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenariosHigh touch screen transmittance, fast response and long lifetimePackage
ContentESP32-S3-Touch-LCD- 1.69 x1NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
