7.5inch E-Ink Display HAT Compatible with Raspberry Pi 5/4B/3B+/Zero/Zero W/Zero 2W/Pico/Pico W/Pico 2/Pico 2W/Jetson Nano, 800480 Resolution SPI Interface,Black White Two-Color SPI Interface E-Paper

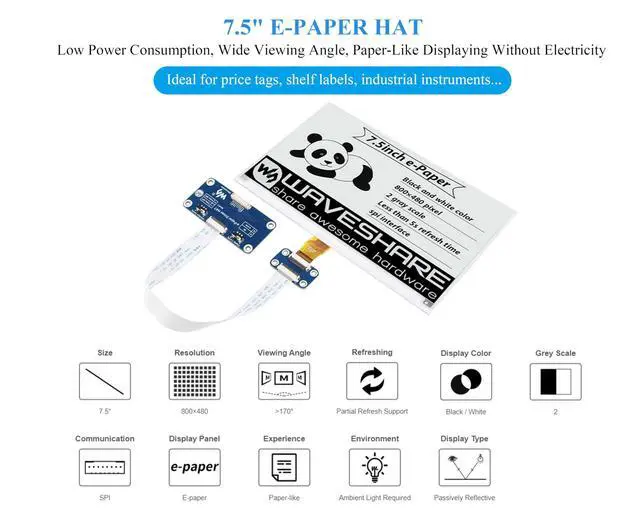

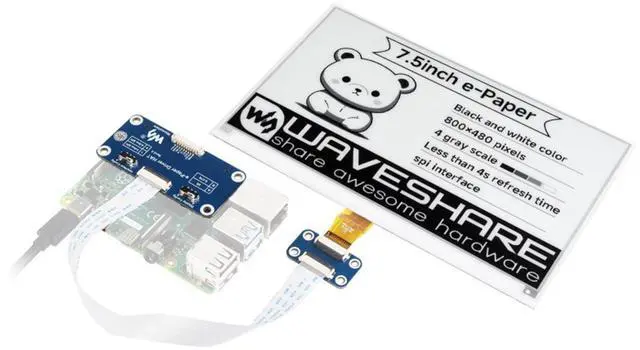

800480, 7.5 inch E-Ink display HAT for Raspberry Pi, SPI interfaceOverviewThis is an E-Ink display HAT for Raspberry Pi, 7.5 inch, 800480 resolution, with embedded controller, communicating via SPI interface. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Features1. No backlight, keeps displaying last content for a long time even when power down2. Ultra low power consumption, basically power is only required for refreshing3.

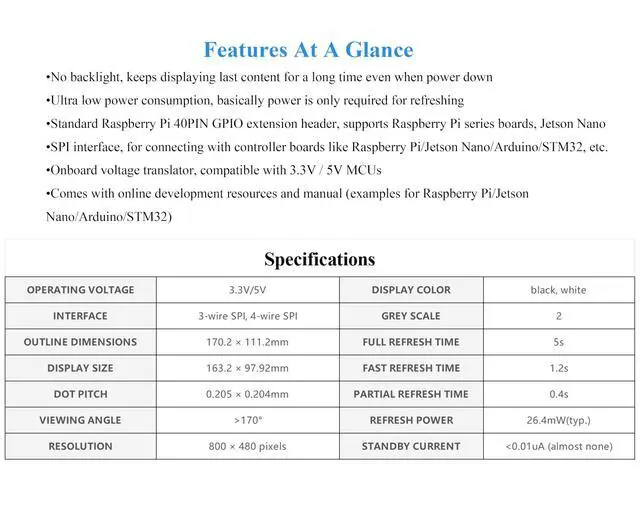

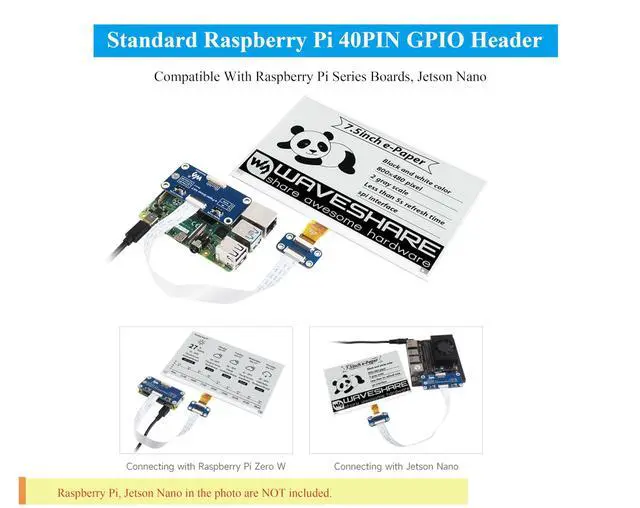

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano4. SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc. 5. Onboard voltage translator, compatible with 3.3V /5V MCUs6. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)Specifications1.
Operating voltage: 3.3V ~5V2.
Interface: SPI3.
Outline dimension: 170.2 mm 111.2 mm4.
Display size: 163.2 mm 97.92 mm5.
Dot pitch: 0.205 0.2046.
Resolution:
8004807.
Display color: black, white8.
Grey scale:
29.
Full refresh time: 5s10.
Refresh power: 38mW(typ. )11.
Standby power: <0.017mW12. Viewing angle: > 170InterfaceVCC --- 3.3V ~5VGND ---GroundDIN ---SPI MOSI pinCLK ---SPI SCK pinCS ---SPI chip selection, low activeDC ---Data/Command selection (high for data, low for command)RST---External reset, low activeBUSY---Busy status output, low activeOnline Development Resources /User

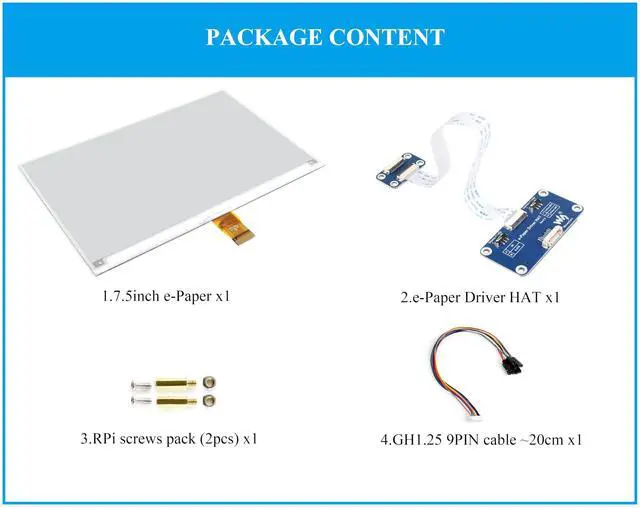

Manual: //bit. ly/3FWYfyoPackage Content 7.5 inch e-Paper x1e-Paper Driver HAT x1RPi screws pack (2pcs) x1PH 2.0 20cm x1
