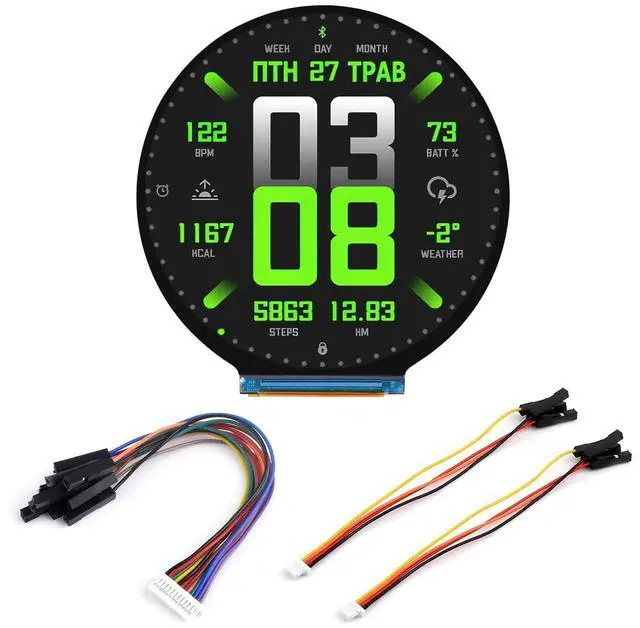

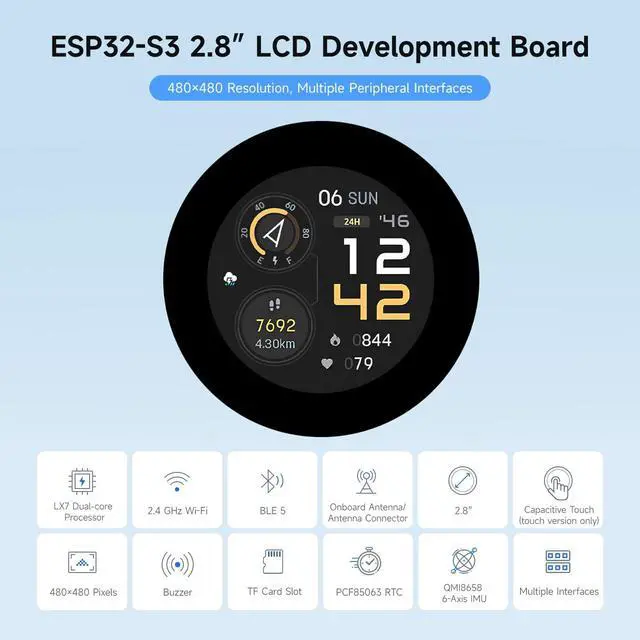

Waveshare ESP32-S3 2.8inch Round Display Development Board, 480480, 32-bit LX7 Dual-core Processor, Without Touch Function

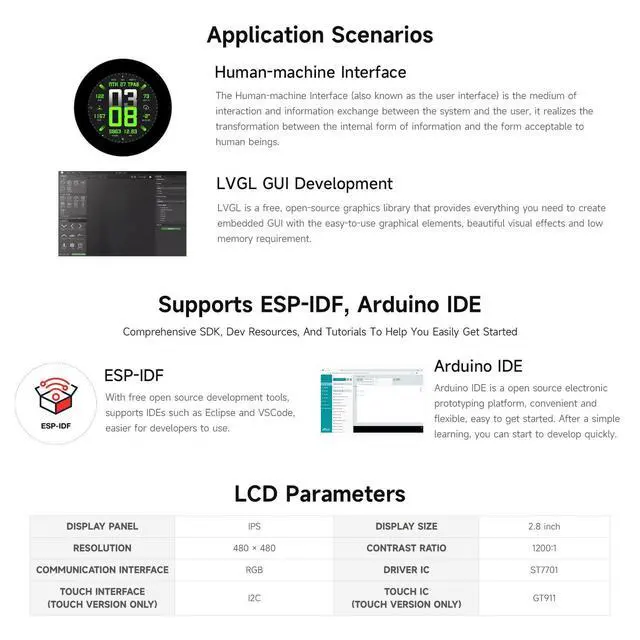

- This product is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 2.8inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.
- Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.81 b/g/n) and Bluetooth 5 (LE), with onboard antenna
- Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM. Onboard 2.8inch LCD display, 480480 resolution
- Adapting UART, I2C and some IO interfaces, integrates full-speed USB port. Onboard QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
- Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
- Rich WiKi Resources: We provide official Wik
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

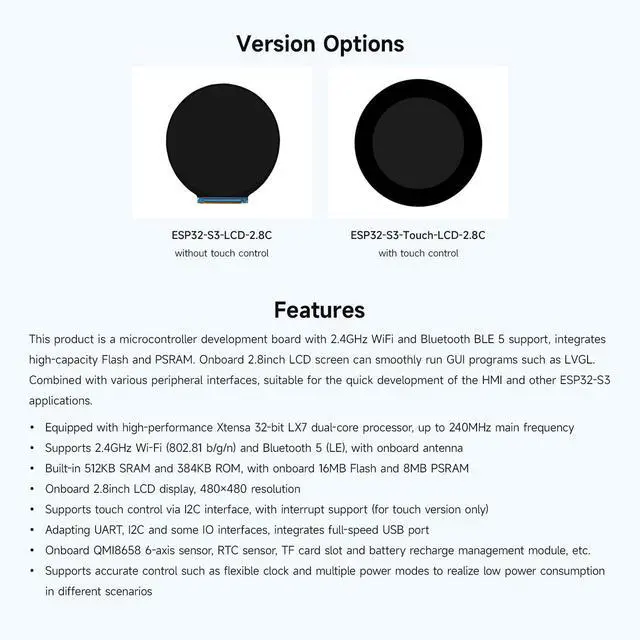

This product is a microcontroller development board with 2.4GH z WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 2.8 inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications. ^^ Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GH z Wi-Fi ( 802.81 b/g/n) and Bluetooth 5 (LE), with onboard antenna ^^ Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM.
Onboard 2.8 inch LCD display, 480480 resolution ^^ Adapting UART, I2C and some IO interfaces, integrates full-speed USB port. Onboard QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc. ^^ Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios ^^
Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
Onboard 2.8 inch LCD display, 480480 resolution ^^ Adapting UART, I2C and some IO interfaces, integrates full-speed USB port. Onboard QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc. ^^ Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios ^^
Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
