2-Channel Isolated CAN FD Expansion HAT for All Raspberry Pi, Support CAN2.0 and CAN FD Protocols,with MCP2518FD CAN Controller + MCP2562FD CAN Transceiver Onboard Multi Protection Circuits

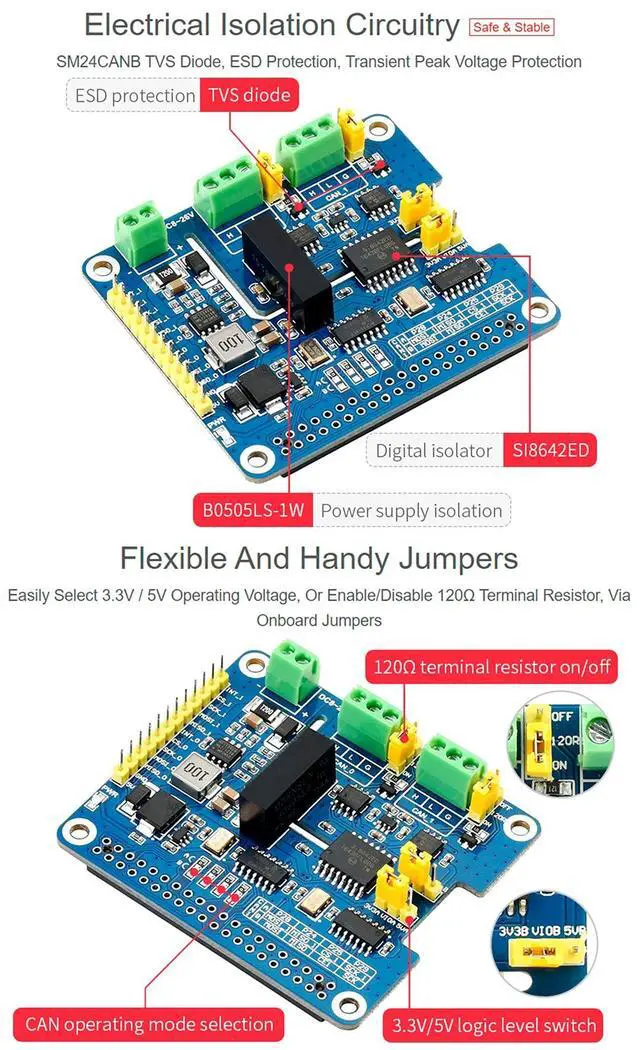

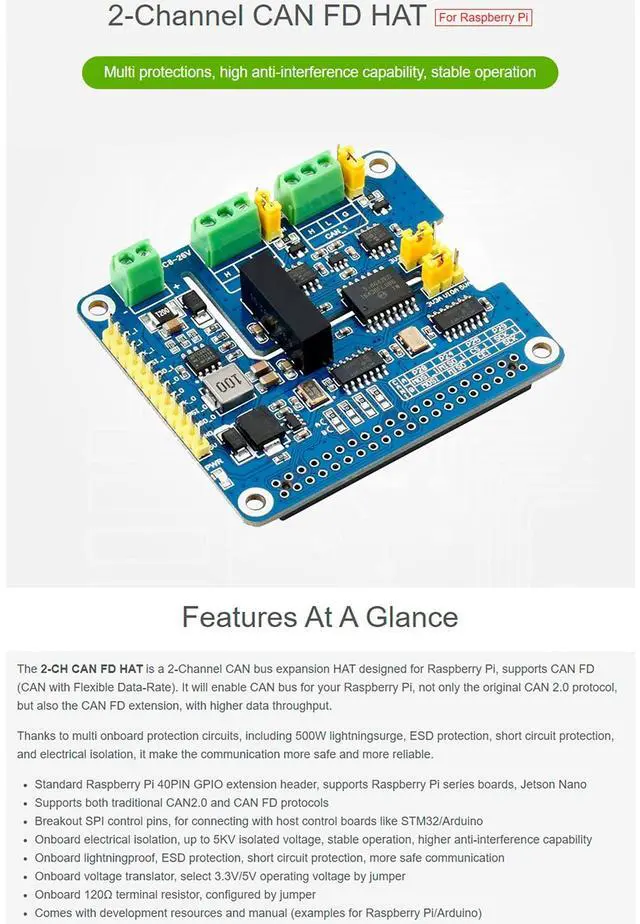

OverviewThis is a 2-Channel CAN bus expansion HAT designed for Raspberry Pi, supports CAN FD (CAN with Flexible Data-Rate), the speed is higher than the traditional 1Mbps of CAN 2.0, features multi onboard protection circuits, high anti-interference capability, and stable operation. It suits for fields such as automotive devices or industrial automation. Onboard protection circuits, including 500W lightningsurge, ESD protection, short circuit protection, and electrical isolation, it make the communication more safe and more reliable. FeaturesStandard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson NanoSupports both traditional CAN 2.0 and CAN FD protocolsBreakout SPI control pins, for connecting with host control boards like STM32/ArduinoOnboard electrical isolation, up to 5KV isolated voltage, stable operation, higher anti-interference capabilityOnboard lightningproof, ESD protection, short circuit protection, more safe communicationOnboard voltage translator, select 3.3V /5V operating voltage by jumperOnboard 120 terminal resistor, configured by jumperComes with development resources and manual (examples for

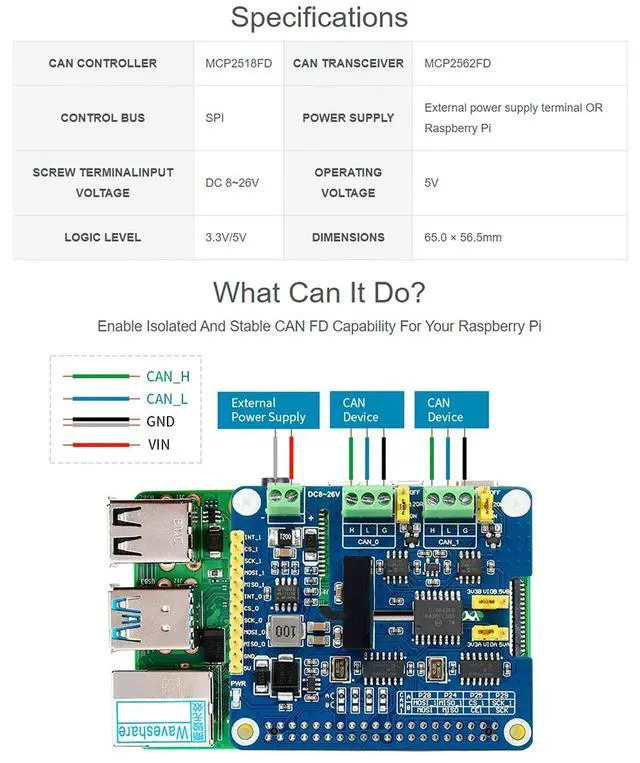

Raspberry Pi/Arduino)SpecificationsCAN controller: MCP2518FDCAN
transceiver: MCP2562FDCommunication
interface: SPI (two channels independent SPI by default, swith to one channel
SPI by soldering)Power supply: external power input terminal, or
Raspberry PiPower input terminal voltage: DC
8~26VOperating voltage: 5VLogic
level: 3.3V
/5VDimensions: 65.0 x 56.5 mmPackage Content2-CH CAN FD HAT x12x20PIN female header x1Standoffs pack (2pcs) x1
