Waveshare PCIe to 5G/4G/3G HAT Designed for Raspberry Pi 5, High-Speed Networking, Compatible with 3042/3052 Packages SIMCom/Quectel 5G Modules, Multi-OS Support, RM520N-GL 5G Module

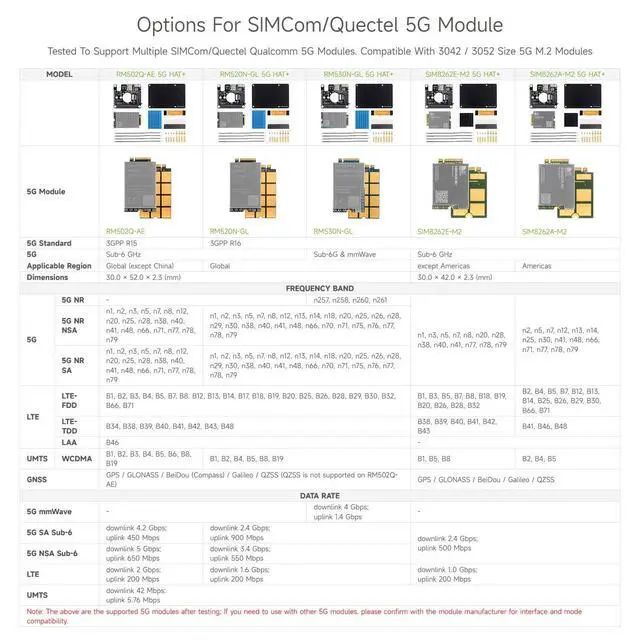

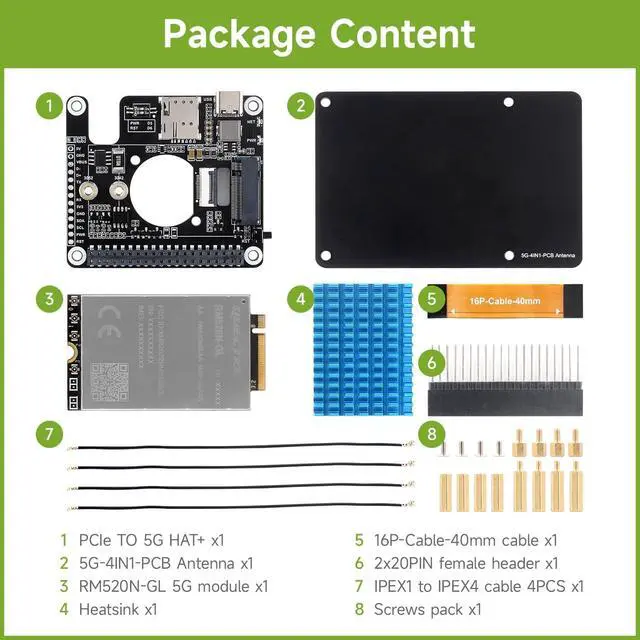

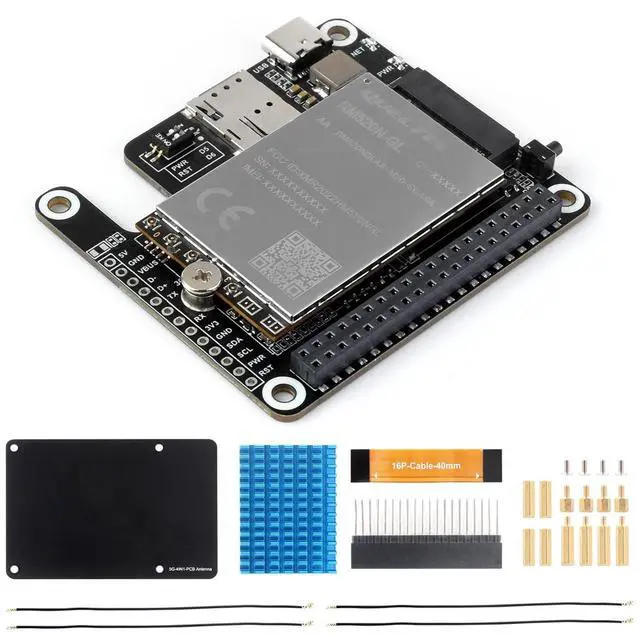

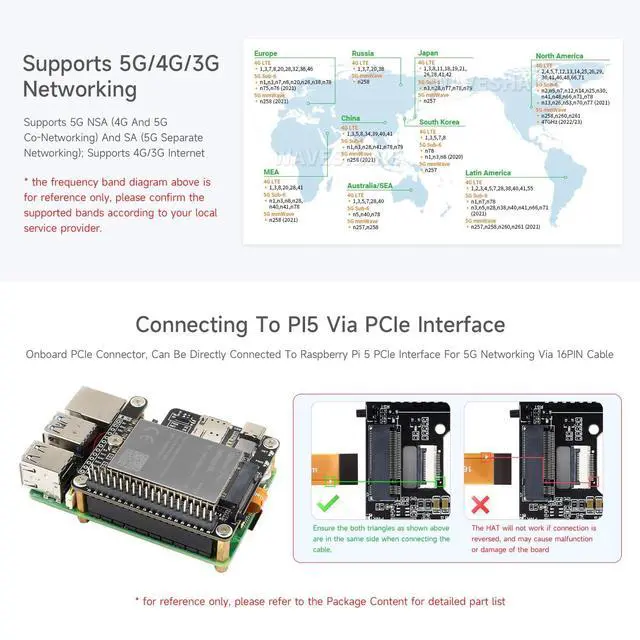

Provides 4 options for 5G module. This version comes with a RM520N-GL 5G module, 3GPP R16 5G Standard, global 5G module. ^^ Comes with PCIe TO 5G HAT+. Onboard M. 2 (NGFF) Key B slot, supports SIM82XX and RM5XX series 5G modules and is compatible with 3042/3052 packages. Onboard PCIE connector, can be directly connected to Raspberry Pi 5 PCIe interface for 5G networking, supports Raspberry Pi OS and OpenWRT ^^ Comes with PCIe TO 5G HAT+. HAT+ standard design with onboard I2C EEPROM, and supports Raspberry Pi 40PIN GPIO stackable expansion.

Onboard power monitoring chip for real-time measurement of voltage, current and power ^^ Comes with PCIe TO 5G HAT+. Onboard SIM card slot for NANO SIM card. Onboard Reset button, power and network indicators for easy debugging and monitoring the operating status ^^ Comes with customized 5G-4IN1-PCB Antenna for neat wiring management, supports top or bottom installation ^^ Images for reference only, the Raspberry Pi 5 is NOT included.
