waveshare 7inch QLED Touch Capacitive Display 1024x600 Pixel, Integrated Thin and Light LCD with Adapter Board, for Raspberry Pi/Jetson Nano/Windows/PC, Support Windows/Linux/Android
- 7inch QLED Touch screen , 1024 x 600 hardware resolution. Integrated Structure, Thin and Light Screen Design. 170Wide Viewing Angle. QLED Quantum Dot Technology:Wider color gamut,color gamut of this QLED display is up to: NTSC 78%, sRGB 92%. More pure chroma:chroma of QLED increases 58.3%, makes the color more pure, more vivid. Longer lifetime:due to its inorganic characteristic, the color life of QLED could be up to 60000 hours without color degradation.
- Integrated Structure Design: Provide secondary development resources to facilitate integrated design, Boost simple development for embedding engineering applications quickly.
- Thinner and more space saving Different with the conventional connection method, integrate 40PIN multi-function interface for one-cable communication. Integrate the driver circuit into an FPC cable, the thinnest only needs 3mm thickness space.
- Support Device & System: Support Windows / Linux / Android main board which has HDMI signal and USB touch signal
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

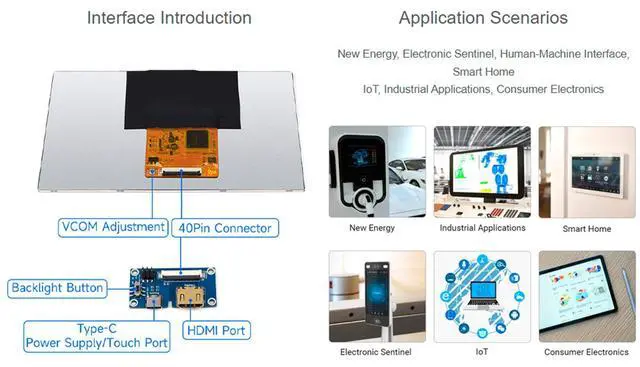

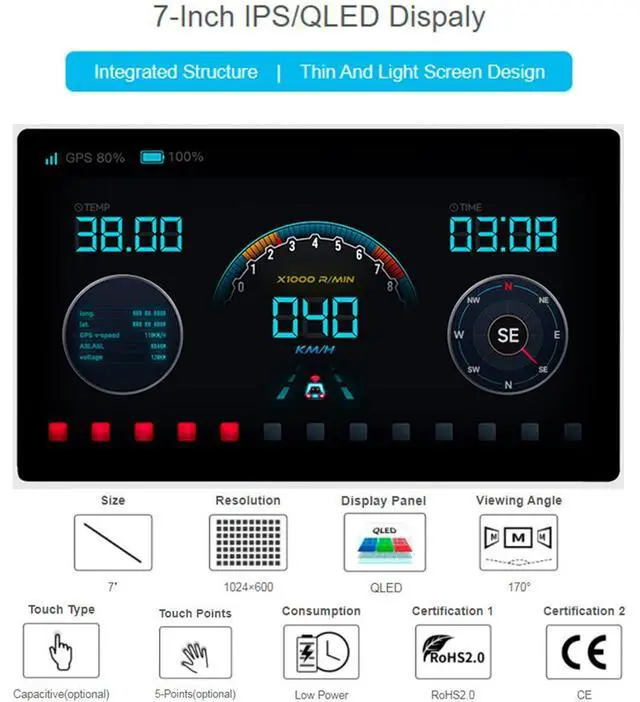

OverviewThis 7inch QLED Touch screen is for customers who need a lightweight HDMI display. As it is thinner and lighter than any traditional HDMI display, users can do the second development by themselves easily. For simplifying the display, we integrate the power supply, display, touch, and control signal as the 40PIN multi-functional header. Just need an FPC cable, you can lower the project cost with the thinnest display, and apply it in any embedded projects. Feature7inch QLED Touch screen, 1024 x 600 hardware resolution. 170Wide Viewing Angle.
COF thin and light structure, providing 40PIN interface one-line communication, integrated development is more convenient. High compatibility, when used with development accessories, it supports main control boards such as Raspberry Pi, PC, and Jetson nano.

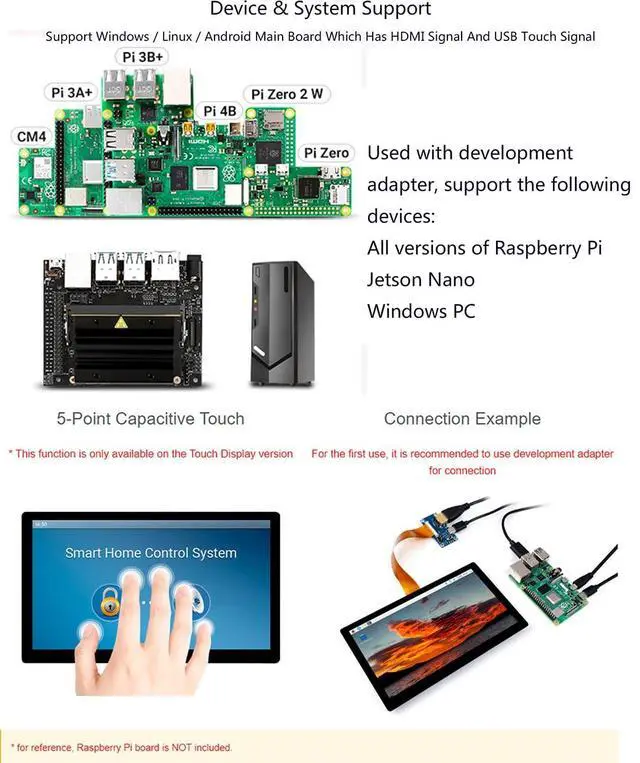

Device & System Support: Support Windows / Linux / Android main board which has HDMI signal and USB touch signalSupport backlight control, more power saving.
5-Point Capacitive Touch: Gently touch, and see what you get, enjoy multi-point UI interaction via Flexible operation. Adapting touch function with USB signal, support 5-point touchQLED

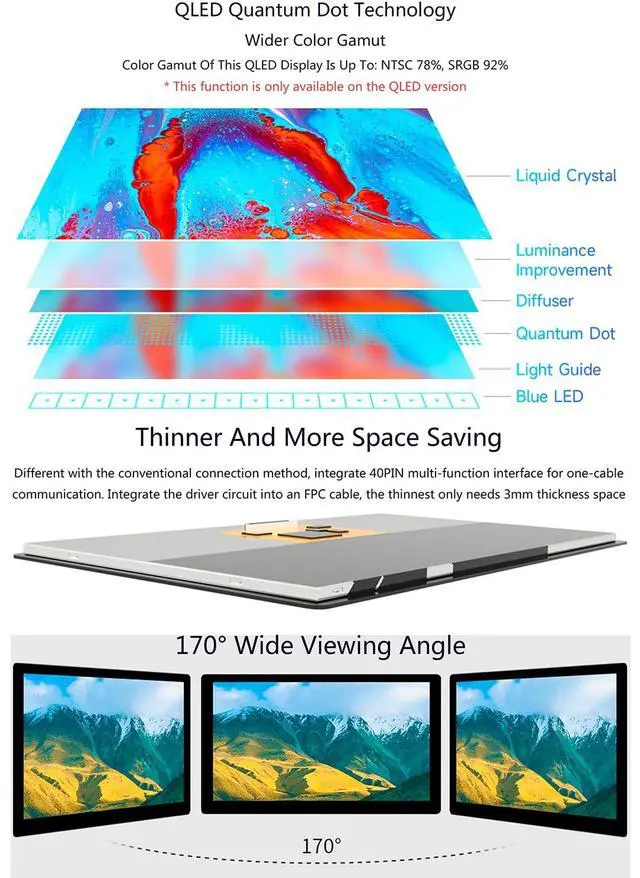

Quantum Dot Technology: Wider color gamut, color gamut of this
QLED display is up to: NTSC 78%, sRGB 92%.
More pure chroma: chroma of QLED increases 58.3 %, makes the color more pure, more vivid.
Longer lifetime: due to its inorganic characteristic, the color life of QLED could be up to 60000 hours without color degradation. Application ScenariosNew energy, electronic sentinel, human-machine interface, smart home IoT, Industrial applications, consumer electronicsOnline

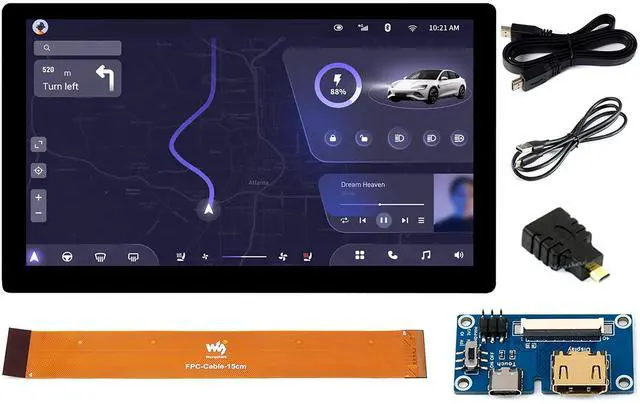

Guide/Development Resources: waveshare. com/wiki/70H-1024600? Package Content7inch QLED Touch Display x1FPC cable (~ 15cm) x1Development Board Accessories
COF thin and light structure, providing 40PIN interface one-line communication, integrated development is more convenient. High compatibility, when used with development accessories, it supports main control boards such as Raspberry Pi, PC, and Jetson nano.
Device & System Support: Support Windows / Linux / Android main board which has HDMI signal and USB touch signalSupport backlight control, more power saving.
5-Point Capacitive Touch: Gently touch, and see what you get, enjoy multi-point UI interaction via Flexible operation. Adapting touch function with USB signal, support 5-point touchQLED
Quantum Dot Technology: Wider color gamut, color gamut of this
QLED display is up to: NTSC 78%, sRGB 92%.
More pure chroma: chroma of QLED increases 58.3 %, makes the color more pure, more vivid.
Longer lifetime: due to its inorganic characteristic, the color life of QLED could be up to 60000 hours without color degradation. Application ScenariosNew energy, electronic sentinel, human-machine interface, smart home IoT, Industrial applications, consumer electronicsOnline
Guide/Development Resources: waveshare. com/wiki/70H-1024600? Package Content7inch QLED Touch Display x1FPC cable (~ 15cm) x1Development Board Accessories
