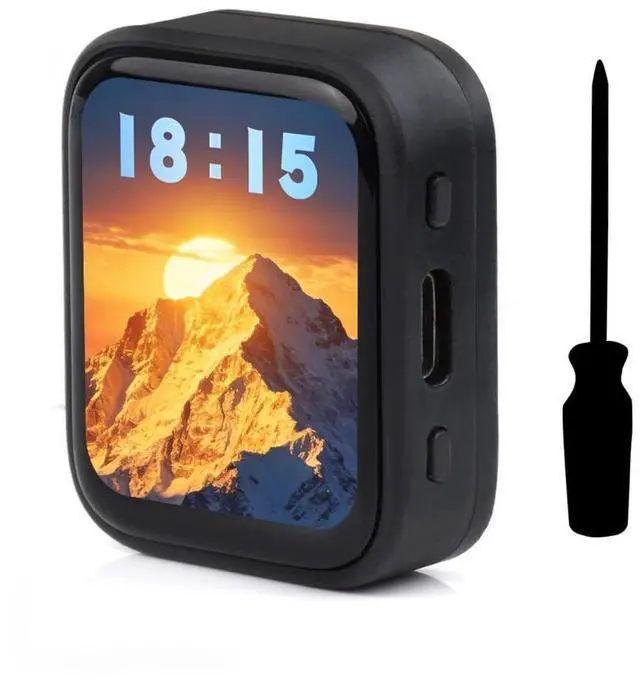

Waveshare ESP32-C6 1.8inch Touch AMOLED Display Development Board, 368 448 Resolution, Supports Wi-F 6, BLE 5 and Zigbee,No Batt

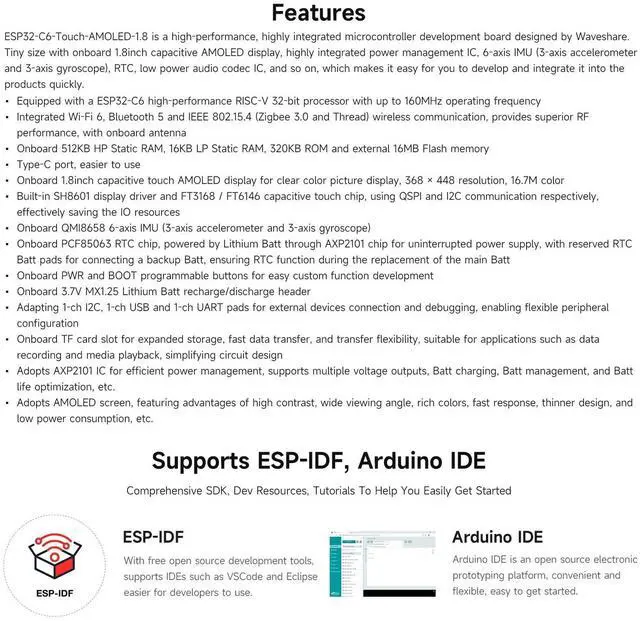

- Equipped with a ESP32-C6 high-performance RISC-V 32-bit processor with up to 160MHz operating frequency.Integrated Wi-F 6, B T 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wire-less communication, provides superior RF performance, with onboard antenna.

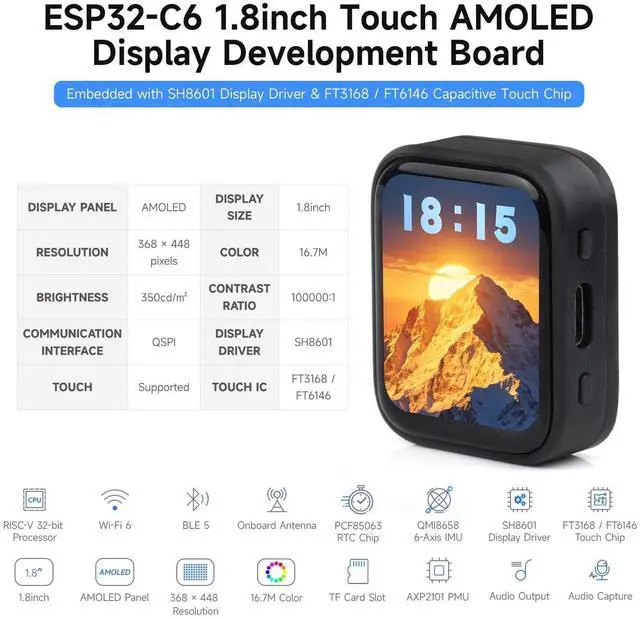

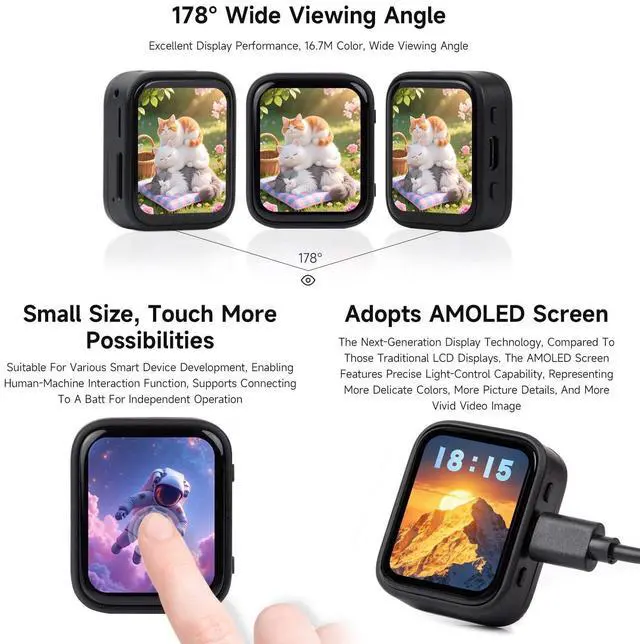

- Onboard 512KB HP Static RAM, 16KB LP Static RAM, 320KB ROM and external 16MB Flash memory.Onboard 1.8inch capacitive touch AMOLED display for clear color picture display, 368 448 resolution, 16.7M color.
- Onboard 1.8inch capacitive touch AMOLED display for clear color picture display, 368 448 resolution, 16.7M color.Built-in SH8601 display driver and FT3168 / FT6146 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources.
- Onboard PWR and BOOT programmable buttons for easy custom function development.
- Onboard TF card slot for expanded storage, fast data transfer, and transfer flexibility, suitable for applications such as data recording and media playback, simplifying circuit d
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Equipped with a ESP32-C6 high-performance RISC-V 32-bit processor with up to 160MHz operating frequency. Integrated Wi-F 6, B T 5 and IEEE 802.15. 4 (Zigbee 3.0 and Thread) wire-less communication, provides superior RF performance, with onboard antenna. ^^ Onboard 512KB HP Static RAM, 16KB LP Static RAM, 320KB ROM and external 16MB Flash memory. Onboard 1.8 inch capacitive touch AMOLED display for clear color picture display, 368 448 resolution, 16.7M color. ^^ Onboard 1.8 inch capacitive touch AMOLED display for clear color picture display, 368 448 resolution, 16.7M color.
Built-in SH8601 display driver and FT3168 / FT6146 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources. ^^ Onboard PWR and BOOT programmable buttons for easy custom function development. ^^ Onboard TF card slot for expanded storage, fast data transfer, and transfer flexibility, suitable for applications such as data recording and media playback, simplifying circuit design.
Built-in SH8601 display driver and FT3168 / FT6146 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources. ^^ Onboard PWR and BOOT programmable buttons for easy custom function development. ^^ Onboard TF card slot for expanded storage, fast data transfer, and transfer flexibility, suitable for applications such as data recording and media playback, simplifying circuit design.
