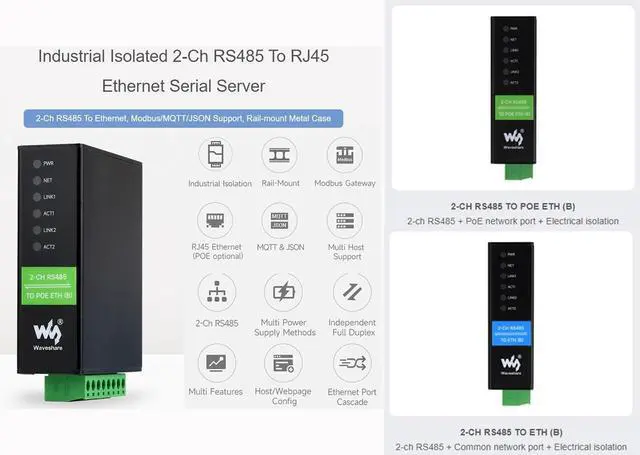

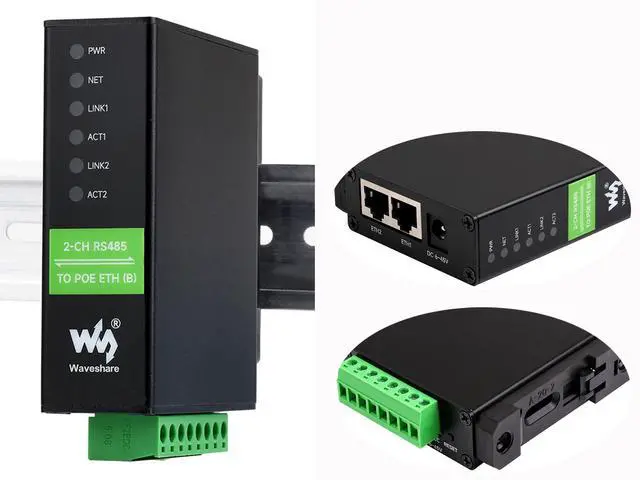

waveshare 2-CH RS485 to RJ45 Ethernet Serial Server with PoE Function, IEEE 802.3af Compliant, Rail-Mount Industrial Isolated Serial Module, Bi-Directional Transparent Transmission

FeaturesThe module features dual RS485 and dual Ethernet ports with PoE function. designed for the industrial environment. Dual RS485 can work simultaneously without interfering with each other. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, and network switch. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring... Specifications1.
Product Type: Serial server, Modbus Gateway, MQTT
GatewayBasic Function: Bi-directional transparent data transmission between RS485 and

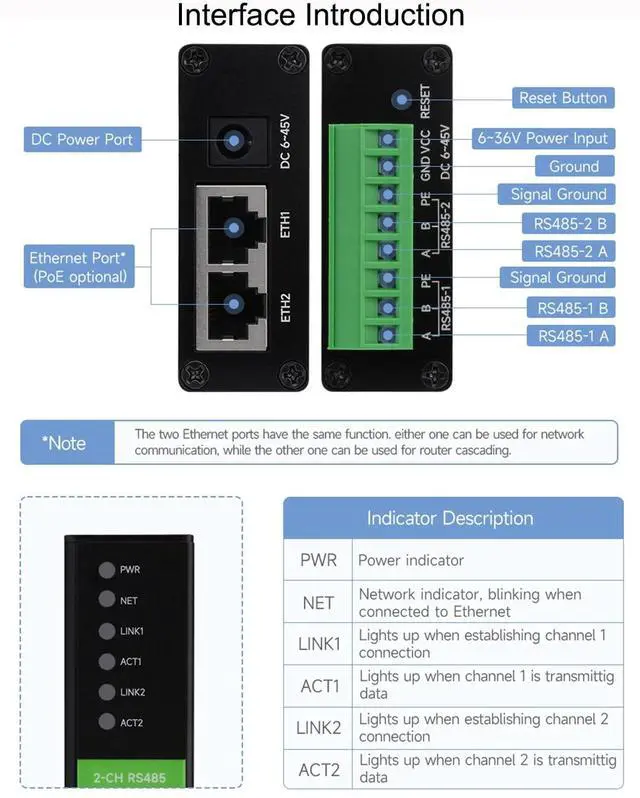

EthernetCommunication interface: RS485 port 2, Ethernet

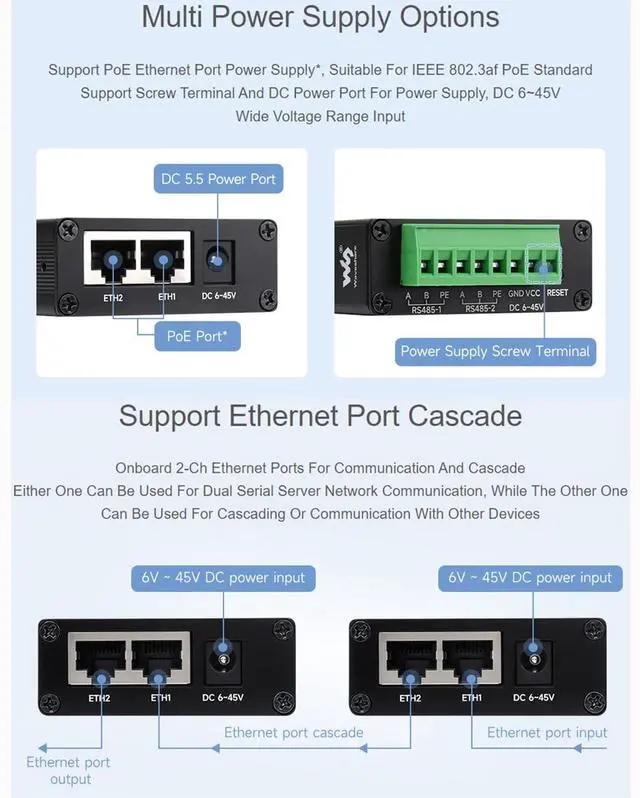

port 2Power supply: DC 5.5 power port, 6 ~ 45V DC screw terminal, or

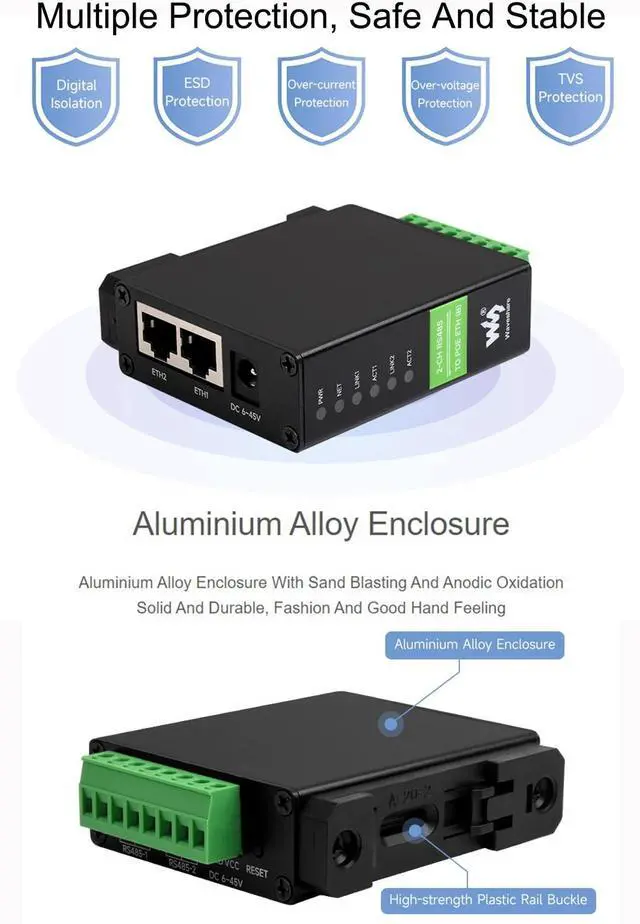

PoE portlIsolation Protection: Power isolation, Signal isolation2.
CommunicationEthernet: RJ45 with PoE support, IEEE 802.3 af compliant, 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protectionSerial
Port: Isolated RS485 (the 2 channels can receive and transmit independently at the same time) 3.
Serial SpecificationBaudrate: 300 ~ 115200 bpsParity
Bit: none, odd, even, mark, spaceData
Bit: 5 ~ 9 bitsFlow ControlN/A4.
SoftwareProtocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration: host, web browser, device
management functions libraryCommunication method: TCP/IP direct communication, VCOM
Operating mode: TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast5.
Environment requirementOperating temperature: -40
~ 85Humidity range: 5%
~ 95% relative humidityDimensions: L
W H: 78.0 72.5 24.2 mmPackage Content2-CH RS485 TO ETH with POE x1
