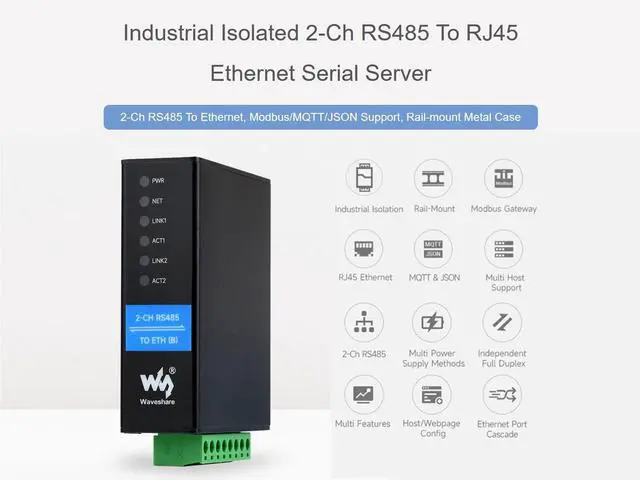

2-Ch RS485 to Ethernet Converter Industrial Isolated Serial Server, 2-Ch RS485 Independent Operation, Dual RJ45 Ethernet Ports, Modbus Gateway MQTT Gateway JSON Support, Rail-mount Metal Case

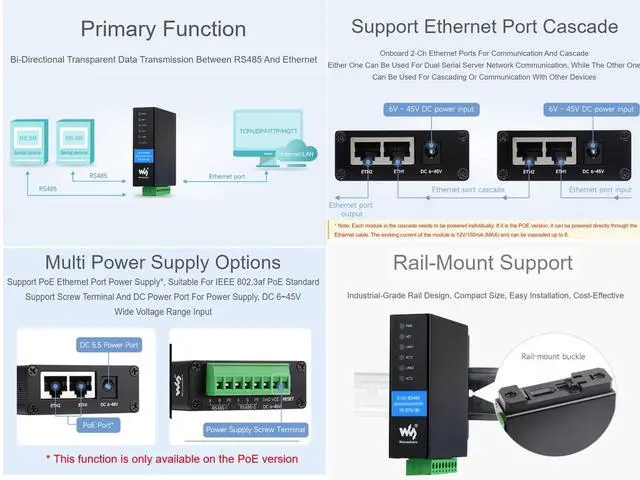

- Support Ethernet Port Cascade, onboard 2-ch Ethernet Ports for communication and cascade, either one can be used for dual serial server network communication, while the other one can be used for cascading or communication with other devices
- Support screw terminal and DC power port for power supply, DC 6~45V, wide voltage range input

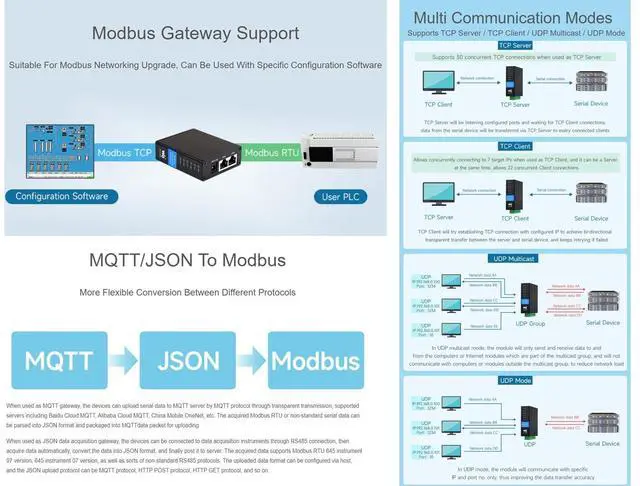

- Modbus gateway support, suitable for Modbus networking upgrade, can be used with specific configuration software. Supports TCP server / TCP client / UDP multicast / UDP mode. MQTT/JSON to Modbus, more flexible conversion between different protocols

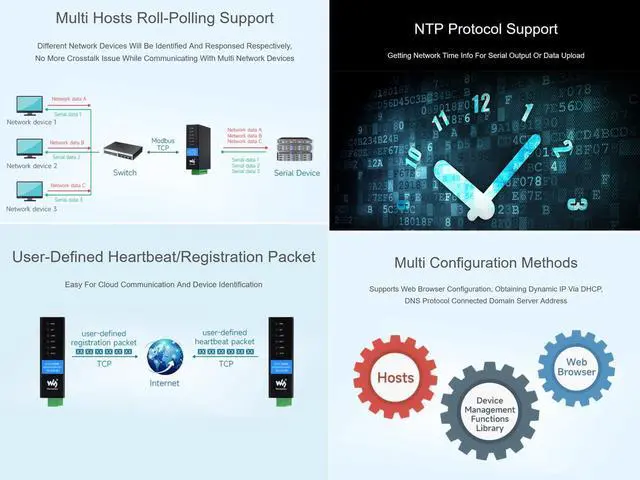

- Multi hosts roll-polling support. User-defined heartbeat/registration packet. NTP protocol support. Multi configuration methods

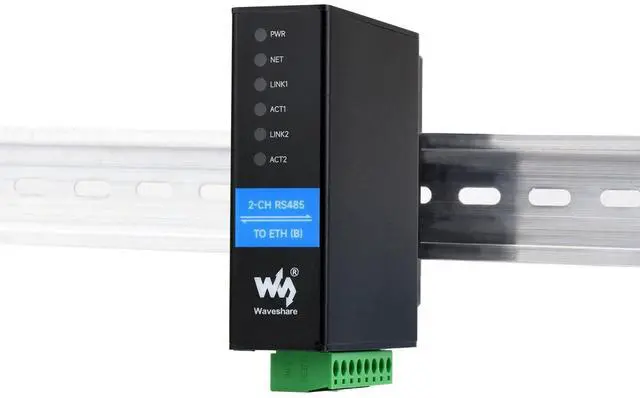

- Multiple protection, safe and stable, onboard power supply and signal isolation, built-in TVS and resettable fuse and protection diode etc. Rail-mount support, industrial-grade rail design, compact size, easy installation, cost-effective
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview2-Ch RS485 to RJ45 Ethernet Serial Server, Dual channels RS485 independent operation, Dual Ethernet Ports, Rail-mount Industrial Isolated Serial Module, Bi-directional Transparent Transmission. ParameterModel-- 2-CH RS485 TO ETH (B) Product Type-- Serial server, Modbus Gateway, MQTT GatewayBasic Function-- Bi-directional transparent data transmission between RS485 and EthernetCommunication Interface-- RS485 port 2, Ethernet port 2Power Supply-- DC 5.5 power port, 6 ~ 45V DC screw terminalIsolation protection-- Power isolation, Signal isolationCommunication
Interface-- Ethernet: RJ45, 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection--
Serial port: Isolated RS485 (the 2 channels can receive and transmit independently at the same time)
Serial specification--Baudrate: 300
~ 115200 bps--Parity bit: none, odd, even, mark, space--Data
bit: 5
~ 9 bits--Flow control:
N/ASoftware--Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS--Configuration: host, web browser, device
management functions library--Communication method: TCP/IP direct communication, VCOM--Operating
mode: TCP server, TCP client (coexisting with TCP server), UDP, UDP
multicastEnvironment requirement--Operating temperature: -40
~ 85--Humidity range: 5%
~ 95% relative humidity--Dimensions: L
W H: 78.0 72.5 24.2 mmPackage Content2-CH RS485 TO ETH (B) x1Development
Resourceshttps: //www. waveshare. com/wiki/RS232/485/422_TO_POE_ETH_ (B)
Interface-- Ethernet: RJ45, 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection--
Serial port: Isolated RS485 (the 2 channels can receive and transmit independently at the same time)
Serial specification--Baudrate: 300
~ 115200 bps--Parity bit: none, odd, even, mark, space--Data
bit: 5
~ 9 bits--Flow control:
N/ASoftware--Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS--Configuration: host, web browser, device
management functions library--Communication method: TCP/IP direct communication, VCOM--Operating
mode: TCP server, TCP client (coexisting with TCP server), UDP, UDP
multicastEnvironment requirement--Operating temperature: -40
~ 85--Humidity range: 5%
~ 95% relative humidity--Dimensions: L
W H: 78.0 72.5 24.2 mmPackage Content2-CH RS485 TO ETH (B) x1Development
Resourceshttps: //www. waveshare. com/wiki/RS232/485/422_TO_POE_ETH_ (B)
