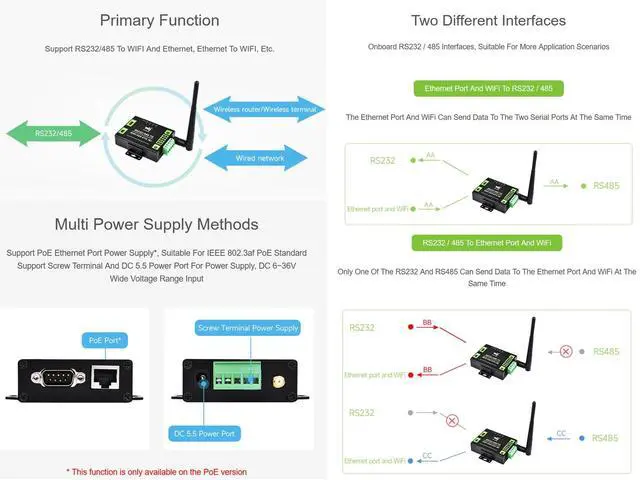

RS232/485 to WiFi POE Ethernet Serial Server Converter, Modbus/MQTT Gateway, Support Serial to WIFI, Serial to Ethernet, Ethernet to WIFI, Serial to HTTPD Client etc. DC 6~36V/PoE Power Supply

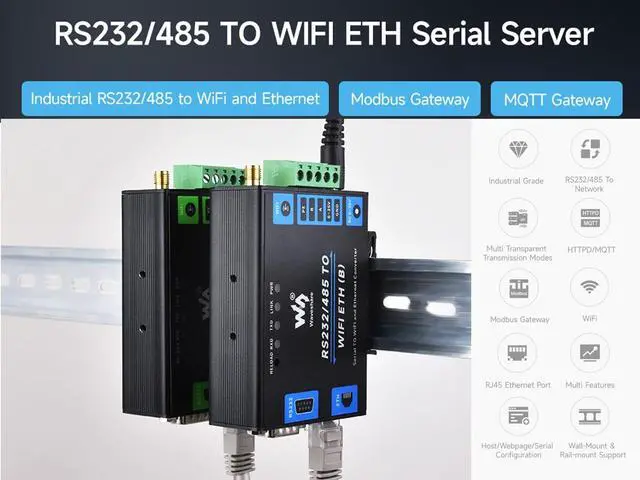

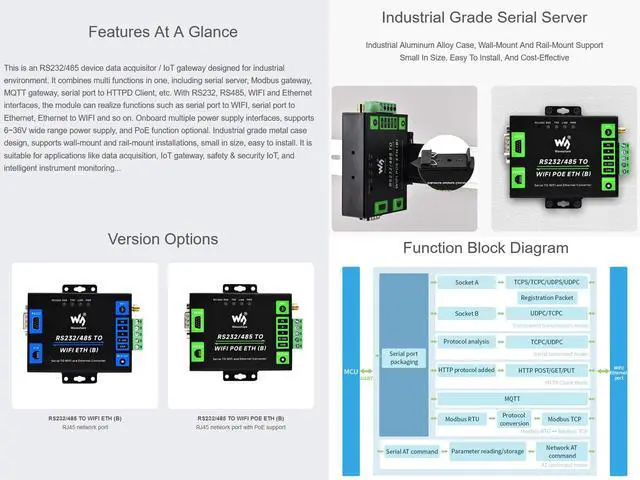

OverviewIndustrial serial server RS232/485 to WiFi and Ethernet, Modbus Gateway, MQTT Gateway, with PoE function. RS232/485 device data acquisitor/IoT gateway designed for industrial environmentSpecificationsProduct Description--Industrial rail-mount/wall-mount module with metal case, PoE functionPower supply--DC 6~36V / PoE portPower supply method--DC 5.5 power port, screw terminal, or PoE portDimensions (L W H) -- 84.0064. 0024.00 mmCommunicationEthernet--10 / 100M auto-negotiation RJ45 connectorWIFI-- 802.11 b/g/n compliantSerial port--RS232 (ESD/EFT)--RS485 (ESD/EFT/surge protection)Wireless SpecificationFrequency Band-- 2.412 ~ 2.484 GHzWireless network--Station / AP / AP+Station ModeSecurity mechanism--WPA-PSK / WPA2-PSK
Encryption type--TKIP / AES
Transmitting power-- 802.11 b: +19dBm (Max.
@11Mbps)-- 802.11 g: +18dBm (Max.
@54Mbps)-- 802.11 n: +17dBm (Max. @HT20, MCS7); +17dBm (Max. @HT40, MCS7)Receiving
sensitivity-- 802.11 b: -89dBm
(@11Mbps)-- 802.11 g: -81dBm
(@54Mbps)-- 802.11 n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)Serial SpecificationBaudrate--300 ~ 460800 bpsParity bit--none, odd, even, mark, spaceData bit--5 ~ 9 bitsSoftwareProtocol--TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT
Configuration--host, web browser, serial AT commandCommunication method--TCP/IP direct communication, VCOM

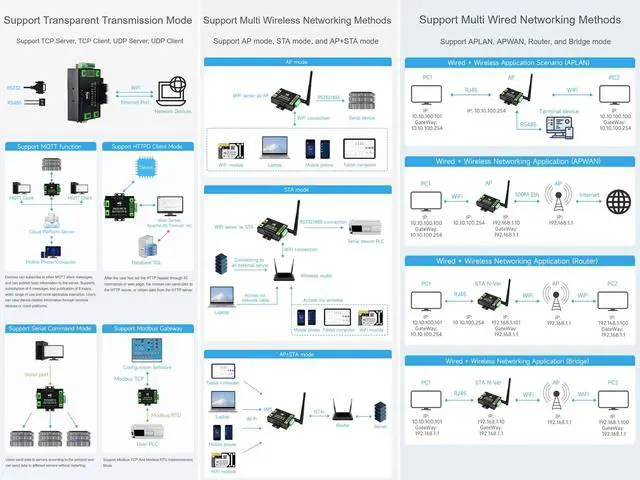

Operating mode--Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU

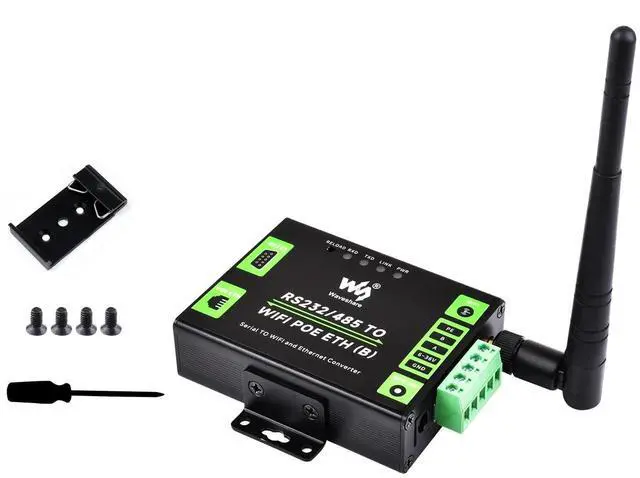

Environment RequirementOperating temperature-- -40 ~ 85Humidity range-- 5% ~ 95% relative humidityPackage ContentRS232/485 TO WIFI POE ETH (B) x 12.4G WiFi antenna x1Rail-mount buckle x1Screwdriver x1Screws pack x1NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
